Product Details:
|
| Name: | PDC1000S12-DB | Model: | PDC1000S12-DB |
|---|---|---|---|
| Detail: | PDC1000S12-DB | Weight: | 1kg |
| Warranty: | 1 Years | Availability: | Stock |
| Condition: | New Factory Sealed | Rated Output Voltage: | 12v |
| Rating Power:: | 901W - 1000W | ||
| Highlight: | Huawei 1000W DC Power Module,PDC1000S12-DB DC Power Module,S5700 Cisco Power Supply |
||

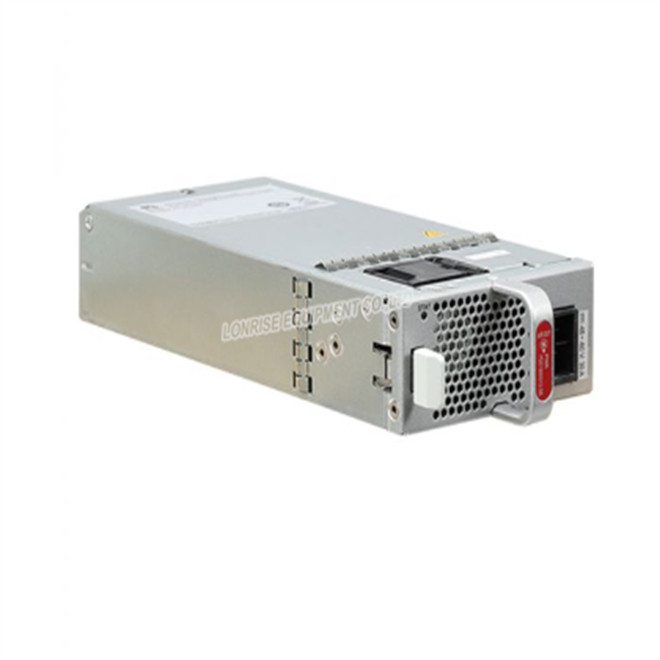

Huawei PDC1000S12-DB Power Module is 1000 W DC Power Module for S6730-H24X6C, S6730-H48X6C, S6730-S24X6Q, S6730S-S24X6Q-A, and S6730S-H24X6C-A.
Table 1 shows the Quick Specs.
| Product Code | PDC1000S12-DB |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 30 A |
| Rated output voltage [V] | 12 V |
PDC1000S12-DB Specification |
|
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Weight without packaging [kg(lb)] | 1.02 kg (2.25 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 30 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 83.3 A |
| Rated output power [W] | 1000 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
