Product Details:
|
| Name: | PAC1000S56-CB | Model: | PAC1000S56-CB |
|---|---|---|---|
| Detail: | PAC1000S56-CB | Weight: | 6kg |
| Warranty: | 1 Years | Availability: | Stock |
| Condition: | New Factory Sealed | Interface Type:: | 24pin |
| Rating Power:: | 901W - 1000W | ||
| High Light: | Huawei DC Power Module,S5735 Switches DC Power Module,DC Cisco Power Supply PAC1000S56-CB |
||
PAC1000S56-CB is the Huawei 1000W AC&240V DC power module for S5731/S5732/S5735 Switches.
Table 1 shows the quick spec.
| Model | PAC1000S56-CB |
| Supported Platforms | Huawei S5731/S5732/S5735/S5736 Switches |
| Number of inputs | 1 |
| Rated output voltage [V] | 56 V |
| Rated output power [W] |
100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |

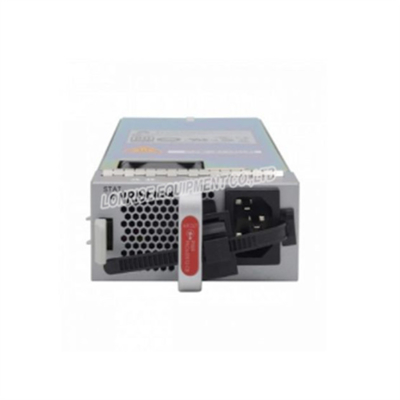

Figure 1 shows the appearance of PAC1000S56-CB.
Note:
| ① | Lock | ④ | Handle |
| ② | Indicator | ⑤ | AC power socket |
| ③ | Fan air vent |
PAC1000S56-CB Specification |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Number of inputs | 1 |
| Rated input voltage [V] |
100 V AC to 130 V AC, 50/60 Hz 200 V AC to 240 V AC, 50/60 Hz 240 V DC |
| Input voltage range [V] |
90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
| Maximum input current [A] |
100 V AC to 130 V AC: 12 A 200 V AC to 240 V AC: 8 A 240 V DC: 8 A |
| Rated output voltage [V] | 56 V |
| Rated output current [A] |
100 V AC to 130 V AC input: 16.08 A 200 V AC to 240 V AC input and 240 V DC input: 17.86 A |
| Rated output power [W] |
100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
