Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Power Supply | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| High Light: | PWR-C1 Switch Power Supply,1100W AC Config 1 Power Supply,AC Cisco Power Supply Indoor |
||

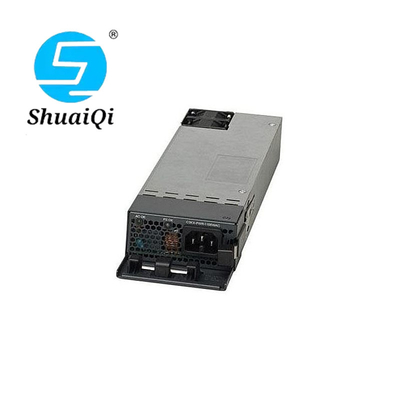

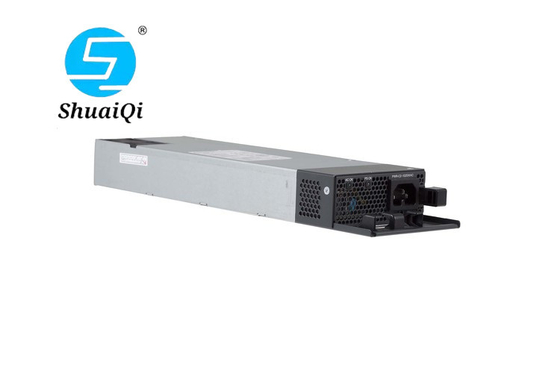

PWR-C1-1100WAC is the 1100W AC Config 1 Power Supply for Cisco switches.
PWR-C1-1100WAC Specification |
|
| Power supply rated maximum | 1100W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 3793 BTU/hr, 1100W |
| Input-voltage range and frequency |
115-240VAC, 50-60 Hz |
| Input current | 12-6A |
| Output ratings | -56V at 19.64A |
| Output holdup time | 10 ms minimum at 102.5VAC |
| Power-supply input receptacles |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 13.7 in |
| Operating temperature | 23 to 113°F (-5 to 45°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45°C |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
| EMI and EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
| Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| LED indicators |
“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
