Product Details:
|
| Model: | S5731-H24T4XC | Name: | S5731-H24T4XC - Huawei S5700 Series Switches |
|---|---|---|---|
| Key Words: | Network Switch 24 Port Gigabit | Detail: | Huawei S5731-H24T4XC (24*10/100/1000BASE-T Ports, 4*10GE SFP+ Ports, 1*expansion Slot, Without Power Module) |
| Iterm: | Switch Network Ports | Fixed Port: | 24 X 10/100/1000Base-T Ports, 4 X 10GE SFP+ Ports |
| Chassis Height: | 1 U | MOQ: | 1 PC |
| High Light: | S5700 Huawei Enterprise Switches,Duplex Huawei S5700 Switch,Gigabit Huawei Enterprise Switches |
||

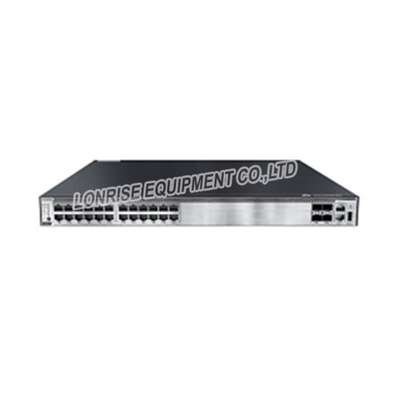

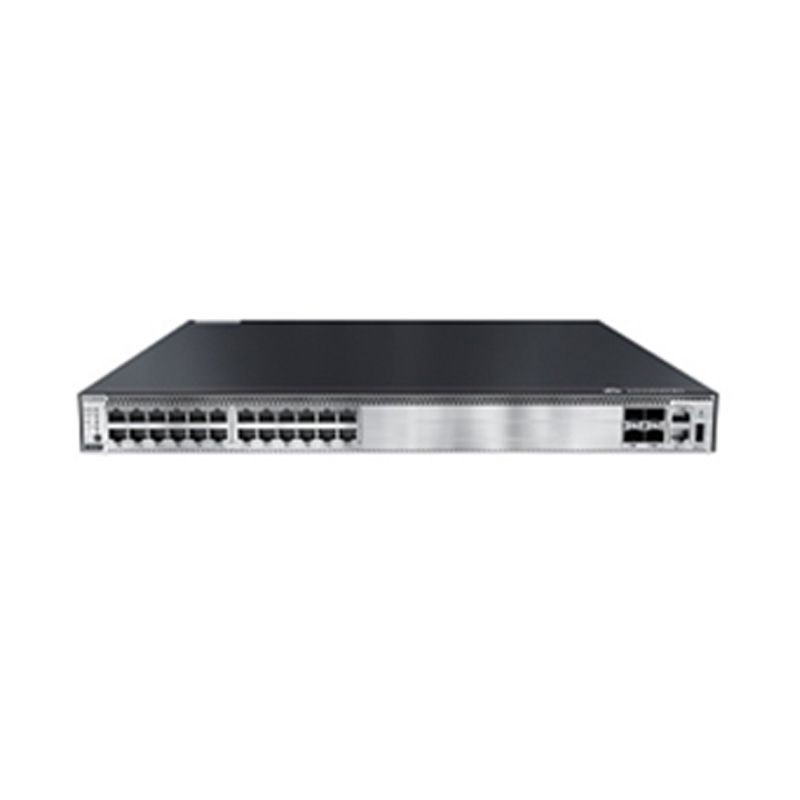

S5731-H24T4XC Huawei S5700 Series Switches duplex huawei enterprise switches
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features.
| Product Code | S5731-H24T4XC |
| Fixed port | 24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420mm |
| Chassis height | 1 U |
| Extended slot | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type |
• 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable) |
| Rated voltage range |
• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC |
|
Maximum voltage range
|
• AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -38.4 V DC to -72V DC |
| Product Code | S5731-H24P4XC | S5731-H24T4XC | S5731-H48P4XC | S5731-H48T4XC |
| Fixed port | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420mm | 43.6 mm x 442 mm x 420mm | 43.6 mm x 442 mm x 420mm | 43.6 mm x 442 mm x 420mm |
| Chassis height | 1 U | 1 U | 1 U | 1 U |
| Chassis weight (including packaging) | 8.6 kg | 8.4 kg | 8.8 kg | 8.55 kg |
| Extended slot | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type | 1000 W PoE AC (pluggable) |
• 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable) |
1000 W PoE AC (pluggable) |
• 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC |
AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC |
| Maximum power consumption |
• 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W) |
114 W |
• 132 W (without PD) • 1750 W (with PD, PD power consumption of 1440 W) |
124 W |
