Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | MOQ: | 1 Pc |
| Switch Capacity: | 80G | Ports: | 24 |
| Brand: | Cisco | Model: | C1000-24T-4G-L |
| High Light: | SFP Uplink Cisco Ethernet Switch,4x1G Cisco Network Switch,Enterprise Cisco Ethernet Switch |
||

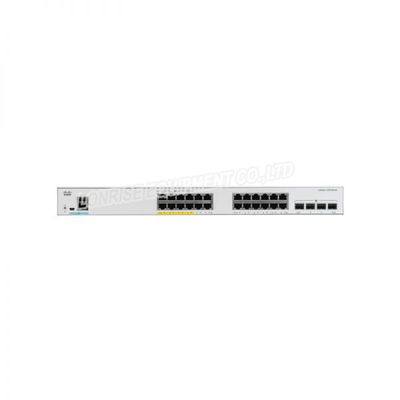

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
.
Table 1 shows the Quick Specs.
| Product Code | C1000-24T-4G-L |
| Description | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
| Gigabit Ethernet ports | 24 |
| Uplink interfaces | 4 SFP |
| PoE+power budget | |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 17.5 x 9.45 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Table 2 shows the comparison.
| Product Code | C1000-24FP-4G-L | C1000-24P-4G-L | C1000-24T-4G-L | C1000-24FP-4X-L | C1000-24P-4X-L | C1000-24T-4X-L |
| Description | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Gigabit Ethernet ports | 24 | 24 | 24 | 24 | 24 | 24 |
| Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
| PoE+power budget | 370W | 195W | 370W | 195W | ||
| Fanless | N | Y | Y | N | Y | Y |
| Dimensions (WxDxH in inches) | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 |
| CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
| DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Forwarding bandwidth | 28 Gbps | 28 Gbps | 28 Gbps | 64 Gbps | 64 Gbps | 64 Gbps |
| Switching bandwidth | 56 Gbps | 56 Gbps | 56 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps |
C1000-24T-4G-L Specification |
|
| Description | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
| Gigabit Ethernet ports | 24 |
| Uplink interfaces | 4 SFP |
| PoE+power budget | |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 17.5 x 9.45 x 1.73 |
| Console ports | |
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 static routes | 16 |
| IPv6 static routes | 16 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours (data) | 2,026,793 |
| MTBF in hours (PoE) | 698,220 |
| MTBF in hours (Full PoE) | 698,220 |
| Environmental | |
| Operating temperature Seal level | -5 to 50 deg C* |
| Up to 5,000ft (1500 m) | -5 to 45 deg C |
| Upto 10,000 (3000 m) | -5 to 40 deg C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40C |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidit | 5% to 95% at 65C |
|
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) |
|
