Product Details:
|
Condition: | Original New | Warranty: | 1 Year |
---|---|---|---|
Lead Time: | 1-2 Days | MOQ: | 1 Pc |
Size: | 10.7*7.5*5.8 | Weight: | 6kg |
Brand: | Cisco | Model: | 8T-E-2G-L |
High Light: | Enterprise Cisco Catalyst Switches,Cisco Gigabit Ethernet Switch,Cisco Catalyst 1000 Network Switch |

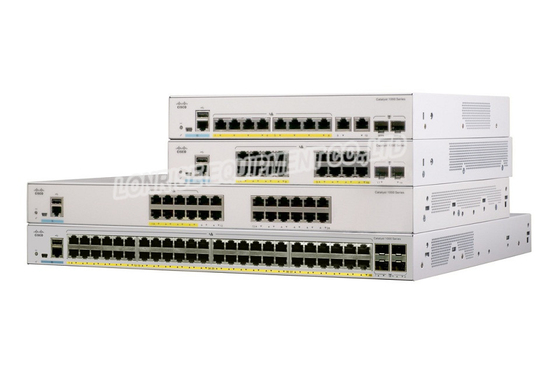

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Table 1 shows the Quick Specs.

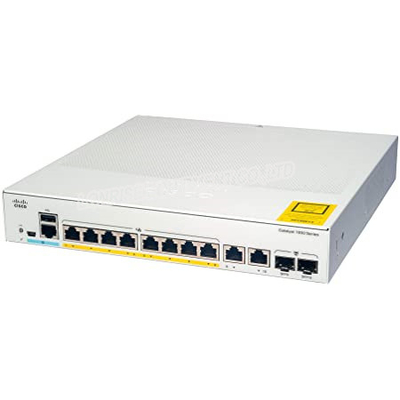

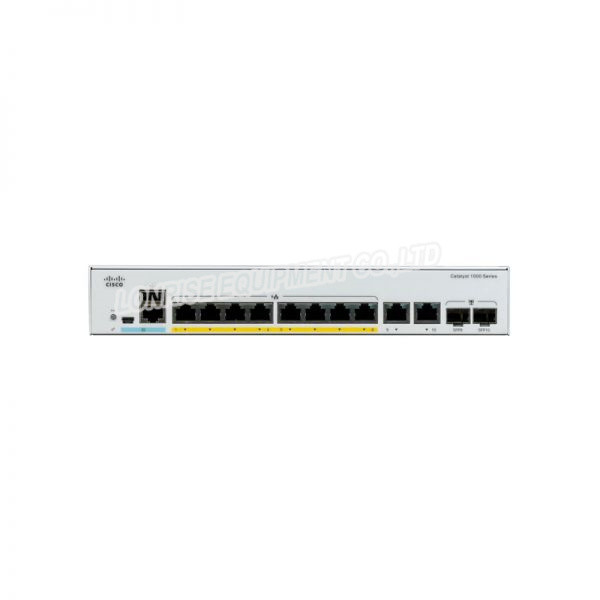

Product Code | C1000-8T-E-2G-L |
Description | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
Gigabit Ethernet ports | 8 |
Uplink interfaces | 2 SFP/ RJ-45 combo |
PoE+power budget | |
Fanless | Y |
Dimensions (WxDxH in inches) | 10.56 x 7.28 x 1.73 |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Forwarding bandwidth | 10 Gbps |
Switching bandwidth | 20 Gbps |
Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Product Code | C1000-8FP-2G-L | C1000-8FP-E-2G-L | C1000-8P-2G-L | C1000-8P-E-2G-L | C1000-8T-2G-L | C1000-8T-E-2G-L |
Description | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
Gigabit Ethernet ports | 8 | 8 | 8 | 8 | 8 | 8 |
Uplink interfaces | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo |
PoE+power budget | 120W | 120W | 67W | 67W | ||
Fanless | Y | Y | Y | Y | Y | Y |
Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 |
CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
Forwarding bandwidth | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
Switching bandwidth | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps |
Forwarding rate(64—byte L3 packets) | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps |
C1000-8T-E-2G-L Specification |
|
Description | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
Gigabit Ethernet ports | 8 |
Uplink interfaces | 2 SFP/ RJ-45 combo |
PoE+power budget | |
Fanless | Y |
Dimensions (WxDxH in inches) | 10.56 x 7.28 x 1.73 |
Console ports | |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 10 Gbps |
Switching bandwidth | 20 Gbps |
Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 static routes | 16 |
IPv6 static routes | 16 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 2,171,669 |
MTBF in hours (PoE) | 1,786,412, 1,706,649 (External PS) |
MTBF in hours (Full PoE) | 1,706,649 |
Environmental | |
Operating temperature Seal level | -5 to 50 deg C* |
Up to 5,000ft (1500 m) | -5 to 45 deg C |
Upto 10,000 (3000 m) | -5 to 40 deg C |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) |
