Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router

Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router
Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router

Large Image :  Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: Cisco ISR4431/K9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Delivery Time: 1-2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 per week

Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router

Description
Condition: Original New Warranty: 1 Year
Lead Time: 1-2 Days Dimensions (H X W X D): 43.9 X 438.15 X 507.2 Mm
Package Weight: 20.88 Kg Onboard ISC Slot: 1
Brand: Cisco Model: ISR4431/K9
High Light:

ISR4431 Industrial Network Router

,

Industrial Cisco Network Router

,

3NIM IP Base Industrial Network Router

ISR4431/K9 Overview

Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

Quick Specs

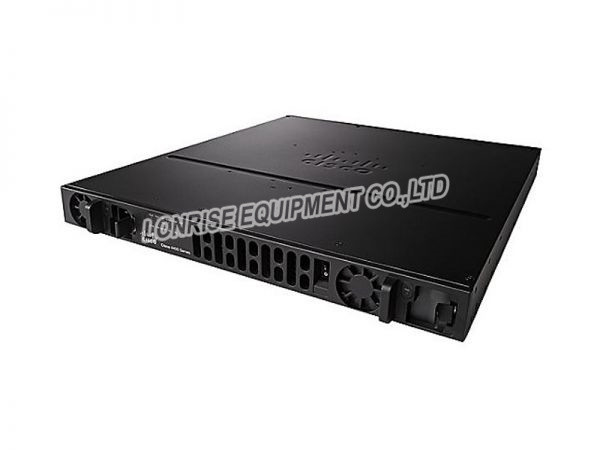

Figure 1 shows the appearance of Cisco ISR4431/K9

Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router 0

Table 1 shows the Quick Specs.

Product Code Cisco ISR4431/K9
Aggregate Throughput 500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module (SM-X) slot 0
NIM (Network Interface Modules) slots 3
Onboard ISC slot 1
DDRM (data plane) 2 GB (default) / 2 GB (maximum)
DDRM (control/services plane) 4 GB (default) / 16 GB (maximum)
Flash Memory 8 GB (default) / 32 GB (maximum)
Power-supply options Internal: AC, DC, and PoE
Rack height 1 RU
Dimensions (H x W x D) 43.9 x 438.15 x 507.2 mm
Package Weight 20.88 Kg



Product Details

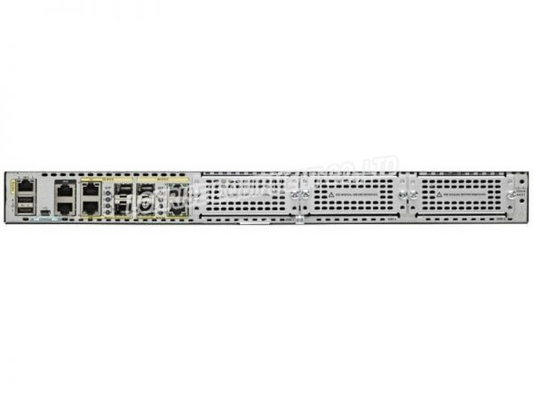

Figure 2 shows the front panel of Cisco ISR4431/K9

Cisco Original ISR4431 / K9 ISR 4431 4GE 3NIM IP Base Router 1



Note:

Power supply unit Router power On/Off switch
LEDs Optional power supply unit

·LEDs include 12 indicators.

Table 2 shows the LED descriptions

LEDs Represents Color Description
PSU Power Supply Unit (P0 and P1) Status Green PSU is on and is providing power.
Amber PSU is on but with errors or in a failure condition.
Off Power supply is turned off.
GE POE Internal PoE Daughter Card Status Green PSU is installed and providing power
Amber PSU is installed but in a failure condition.
Off PSU is off.
FLASH System Flash Status Blinking Green Compact flash/eUSB flash is present and currently being accessed.
TEMP Temperature Status Solid green All temperature sensors in the system are within acceptable range.
Amber One or more temperature sensors in the system are outside the acceptable range.
Off Temperature is not being monitored.
PWR System Power Green System power is on and functioning correctly.
Green blinking System power is in the process of shutting down.
Amber System power is up, but low level initialization failed.
Amber blinking System power is up, but the system failed to come out of reset.
Off System power is off.
POE BOOST Power Over Ethernet Boost Mode Green Two PoE power supplies are installed and operating in boost mode.
Off

This can mean one of the following:

·No PoE PSU installed.

·One PoE PSU installed.

·Two PoE PSUs installed and operating in redundant mode.

ISC ISC Slot Status Green PVDM4 is present and enabled.
Amber Initialized with error.
Off Not present.
FAN Fan Status Green All fans are operating.
Amber One fan has stopped working.
Blinking Amber Two or more fans have stopped working, or the fan tray has been removed.
Off Fans are not being monitored.
STAT System Status Solid green System operating normally.
Blinking amber BIOS/Rommon is booting.
Amber BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.
Off System is not out of reset or BIOS image is not loadable.



Compare to Similar Items

Technical Specifications ISR4461/K9 ISR4451-X/K9 ISR4431/K9 ISR4351/K9 ISR4331/K9 ISR4321/K9 ISR4221/K9
Aggregate Throughput 1.5Gbps

1 Gbps to

2 Gbps

500 Mbps to

1 Gbps

200 Mbps to

400 Mbps

100 Mbps to

300 Mbps

50 Mbps to

100 Mbps

35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 4 4 4 3 3 2 2
RJ-45-based ports 4 4 4 3 2 2 2
SFP-based ports 4 4 4 3 2 1 1
Enhanced service-module slots 3 2 0 2 1 0 0
Doublewide service-module slots 2 1 (assumes no singlewide SM-X modules installed) 0 1 (assumes no singlewide SM-X modules installed) 0 0 0
NIM slots 3 3 3 3 2 2 2
OIR (all I/O modules) Yes Yes Yes Yes Yes Yes No
Onboard ISC slot 1 1 1 1 1 1 No
