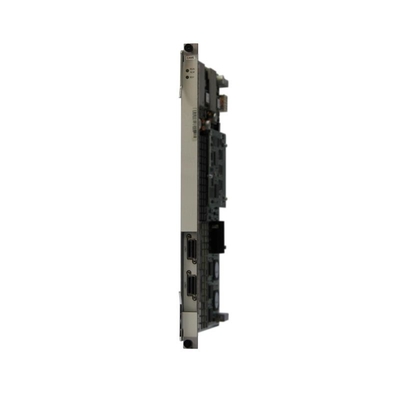

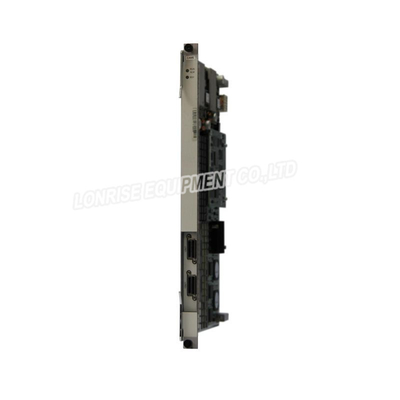

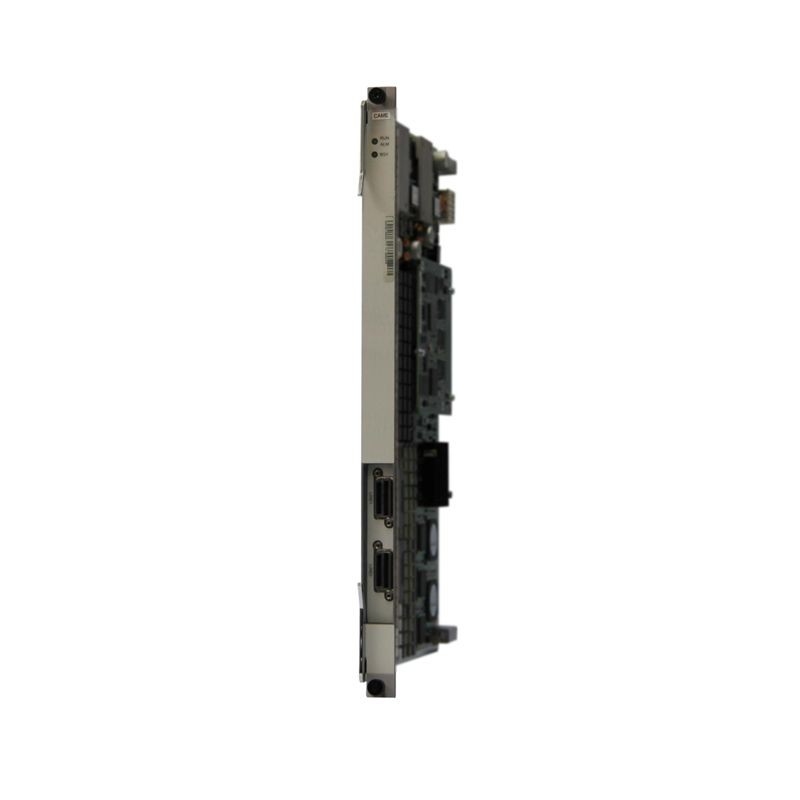

H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board

H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board
H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board

Large Image :  H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: H80BCAME

H80BCAME - Huawei SmartAX MA5600T Combo Boards Cross Connect Synchronous Timing Board

Description
Model: H80BCAME Name: H80BCAME - Huawei SmartAX MA5600T Combo Boards
Key Words: Synchronous Timing Board Detail: Huawei SmartAX MA5600T 48-port ADSL&POTS Combo Board
Iterm: Osn Series Shared Board Connector: Delander 64-pin
Built-in Splitter: 600 Ohms Condition: Original New
High Light:

Synchronous Timing Combo Boards

,

SmartAX Synchronous Timing Board

,

600 ohms Combo Boards

H80BCAME - Huawei SmartAX MA5600T Combo Boards cross connect synchronous timing board

The H80BCAME board is a 48-port ADSL2+ & POTS combo board with the highest density in the industry, providing 48 channels of ADSL2+ and POTS access services.



H80BCAME Specification

Connector Delander 64-pin
Built-in splitter 600 ohms
Maximum Frame Size 1800 bytes
Operating temperature -40° C to +65° C
Power consumption • Static: 26 W
• Maximum: 75 W
High temperature automatic shutdown Supported
IPv6 Supported
N:1 VMAC Supported
1:1 VMAC Supported
Category Specification
Annex • G.992.1 (Annex A)
• G.992.3 (Annex A/L/M)
• G.992.5 (Annex A/M)
Bonding Supported
SRA Supported
RFI notch Supported
DPBO Supported
G.INP Supported
INM Supported
Built-in MELT Not supported
Built-in SELT Supported
Category Specification
DSP channel (G.711) 48
Codec G.711A
G.711U
G.729
G.723
G.726
Polarity of wires a and b a+
b
Short loop Supported
Polarity reversal Supported
16/12 KC Not supported
Power supply at high voltage (for a long distance) Supported
Port current 20 mA / 25 mA / 30 mA
MELT Supported
MELT precision High
