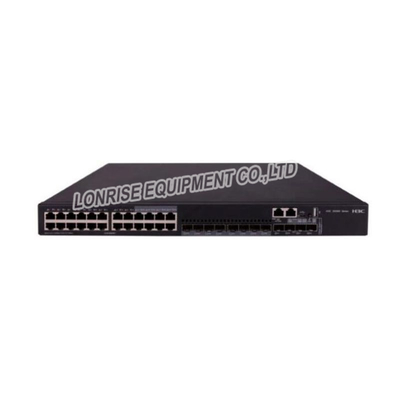

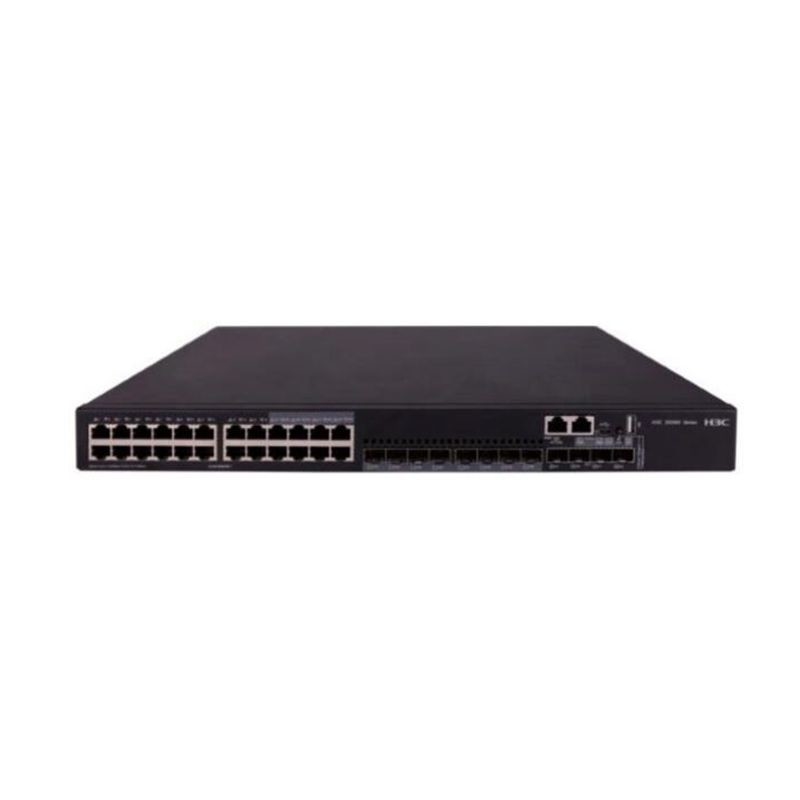

S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing

S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing
S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing

Large Image :  S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing

Product Details:
Place of Origin: China
Brand Name: H3C
Certification: CE
Model Number: S5560X-30F-EI

S5560X-30C-EI - H3C Huawei Ethernet Network Switches Multiple Routing

Description
Model: S5560X-30F-EI Name: S5560X-30C-EI - H3C Switches
Key Words: L3 Ethernet Switch,24*10/100/1000BASE-T Ports (including 8*combo Interfaces) MOQ: 1
Shipping: Ups Dhl Fedex Payment: TT PAYPAL
Condition: Original New Warranty: 1 Year
High Light:

Huawei L3 Ethernet Switches

,

800MHz Huawei Ethernet Switches

,

Huawei Ethernet Switches Multiple Routing

S5560X-30C-EI - H3C Switches multiple routing huawei ethernet switches



Item S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI S5560X-54F-EI S5560X-30F-EIF
CPU Dual Core, 800MHz
Box switching capacity 598Gbps
Port switching capacity 288Gbps 336Gbps 288Gbps 336Gbps 288Gbps
Packet forwarding rate 216 Mpps 252 Mpps 216 Mpps 252 Mpps 216 Mpps
Dimensions (H × W × D) 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) 43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in)
Weight ≤ 6.7 kg (14.77 lb) ≤ 7.0 kg (15.43 lb) ≤ 6.6 kg (14.55 lb) ≤ 6.7 kg (14.77 lb) ≤ 3.2 kg (7.05 lb)
Flash/SDRAM 1GB /2GB
Management Ethernet ports 1
Console ports

1 × RJ-45 console port

1 × Micro-USB console port

Only the Micro-USB console port is available when you connect both ports.

Service ports

24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)

4 × 10G SFP+ ports

48 × 10/100/1000Base-T autosensing Ethernet ports

4 × 10G SFP+ ports

24 × SFP ports (including 8 combo interfaces)

4 × 10G SFP+ ports

48 × SFP ports

4 × 10G SFP+ ports

24 × SFP ports (including 8 combo interfaces)

4 × 10G SFP+ ports

2 x 40G QSFP+ ports

Expansion slots 1 0
Stacking bandwidth Maximum 160Gbps
Compatible interface module

2-port 40GE QSFP+ interface module

2-port 10G SFP+ interface module

2-port 25G SFP28 interface module

2-Port 10G BASE-T Interface Card with MACSec

2-Port 10G SFP Plus Interface Card with MACSec

4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module

8-Port 10G SFP Plus with MACSec Interface Module

8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module

8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module

N/A
AC input voltage

PSR150-A1&PSR150-A2:

Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz

Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz

DC input voltage

PSR150-D1:

Rated: –48 VDC to –60 VDC

Max: –36 VDC to –72 VDC

You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A).

Min. power consumption

Single AC input: 24 W

Dual AC inputs: 29 W

Single DC input: 24 W

Dual DC inputs: 28 W

Single AC input: 27 W

Dual AC inputs: 31 W

Single DC input: 24 W

Dual DC inputs: 29 W

Single AC input: 24 W

Dual AC inputs: 29 W

Single DC input: 24 W

Dual DC inputs: 30 W

Single AC input: 30 W

Dual AC inputs: 37 W

Single DC input: 30 W

Dual DC inputs: 36 W

AC:20W

DC:23W

Max. power consumption

Single AC input: 87 W

Dual AC inputs: 91 W

Single DC input: 88 W

Dual DC inputs: 95 W

Single AC input: 88 W

Dual AC inputs: 93 W

Single DC input: 89 W

Dual DC inputs: 96 W

Single AC input: 112 W

Dual AC inputs: 116 W

Single DC input: 113 W

Dual DC inputs: 122 W

Single AC input: 130 W

Dual AC inputs: 134 W

Single DC input: 132 W

Dual DC inputs: 140 W

AC:71W

DC:72W

MTBF(Year) 178.67 151.28 170.05 149.97 170.05
MTTR(Hour) 1 1 1 1 1
