Product Details:
|
| Model: | PWR-C1-715WAC | Name: | Cisco Power Supply For Cisco 3850 Series Switches |
|---|---|---|---|
| Key Words: | Xbox Power Cord | Detail: | Cisco 3850 Series Power Supply PWR-C1-715WAC 715W AC Config 1 Power Supply |
| Power Supply Rated Maximum: | 715W | Total Output BTU (Note: 1000 BTU/hr = 293W): | 2465 BTU/hr, 715W |
| Input Current: | 10-5A | Power Cord Rating: | 13A |
| High Light: | Cisco 3850 Series Switches,715W Cisco power Supply,Cisco Power Supply For Switches Calculator |
||

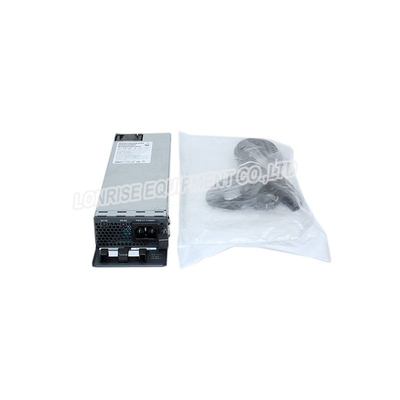

Cisco 3850 Series Power Supply - PWR-C1-715WAC 715W AC Config 1 Power Supply for 3850 Series.
Cisco Power Supply for Cisco 3850 Series Switches power supply calculator
| Product Code | PWR-C1-715WAC= |
| Power supply rated maximum | 715W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
| Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
| Input current | 10-5A |
| Output ratings | -56V at 12.8A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in |
| Product Code | PWR-C1-350WAC | PWR-C1-440WDC | PWR-C1-715WAC= | PWR-C1-1100WAC |
| Power supply rated maximum | 350W | 440W | 715W | 1100W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W | 1517BTU/hr, 440W | 2465 BTU/hr, 715W | 3793 BTU/hr, 1100W |
| Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
-36VDC to -72VDC |
100-240VAC, 50-60 Hz |
115-240VAC, 50-60 Hz |
| Input current | 4-2A |
<8A at -72VDC <16A at -36VDC |
10-5A | 12-6A |
| Output ratings | -56V at 6.25A | -56V at 7.86A | -56V at 12.8A | -56V at 19.64A |
| Output holdup time | 16.7 ms minimum at 100VAC | > 2ms at -48VDC | 16.7 ms minimum at 100VAC | 10 ms minimum at 102.5VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) | Terminal strip |
IEC 320-C16 (IEC60320-C16) |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A | 20A at 100VDC | 13A | 13A |
