Product Details:
|
| Model: | C1000-8T-2G-L | Name: | C1000-8T-2G-L - Cisco Catalyst 1000 Series Switches |
|---|---|---|---|
| Key Words: | Netgear Gs105 | Detail: | 8x 10/100/1000 Ethernet Ports, 2x 1G SFP And RJ-45 Combo Uplinks |
| Uplink Interfaces: | 2 SFP/ RJ-45 Combo | Dimensions (WxDxH In Inches): | 10.56 X 7.28 X 1.73 |
| CPU: | ARM V7 800 MHz | DRAM: | 512 MB |
| High Light: | Nintendo Lan Adapter Cisco Ethernet Switch,Catalyst 1000Series Ethernet Network Switch,netgear gs105 Ethernet Switch |
||

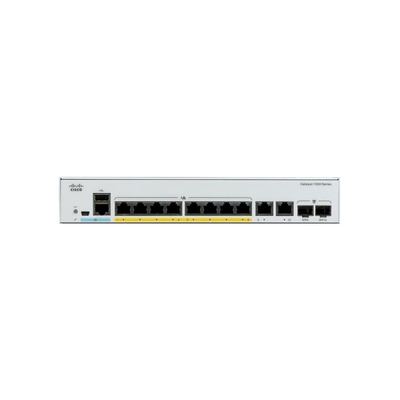

C1000-8T-2G-L - Cisco Catalyst 1000 Series Switches nintendo switch lan adapter
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
| Product Code | C1000-8T-2G-L |
| Description | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks |
| Gigabit Ethernet ports | 8 |
| Uplink interfaces | 2 SFP/ RJ-45 combo |
| PoE+power budget | |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 10.56 x 7.28 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
| Product Code | C1000-8FP-2G-L | C1000-8FP-E-2G-L | C1000-8P-2G-L | C1000-8P-E-2G-L | C1000-8T-2G-L | C1000-8T-E-2G-L |
| Description | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
| Gigabit Ethernet ports | 8 | 8 | 8 | 8 | 8 | 8 |
| Uplink interfaces | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo |
| PoE+power budget | 120W | 120W | 67W | 67W | ||
| Fanless | Y | Y | Y | Y | Y | Y |
| Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 |
| CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
| DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Forwarding bandwidth | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
| Switching bandwidth | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps |
| Forwarding rate(64—byte L3 packets) | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps |
