Product Details:
|
| Model: | AR6140-16G4XG | Name: | AR6140-16G4XG - Huawei NetEngine AR6100 Series Routers |
|---|---|---|---|
| Key Words: | Spectrum Routers | Detail: | AR6140-16G4XG 4*GE 4*10GE SFP+ WAN,12*GE LAN,1*USB 2.0,4*SIC Slot,2*WSIC Slot,2*POWER Slot |
| Processor: | 16-core, 1.85 GHz | Memory: | 4 GB |
| Maximum Output Power: | 150 W | ||
| High Light: | Huawei NetEngine Industrial Network Router,AR6100 Series Huawei Network Router,Huawei Network Router 300mbps |
||

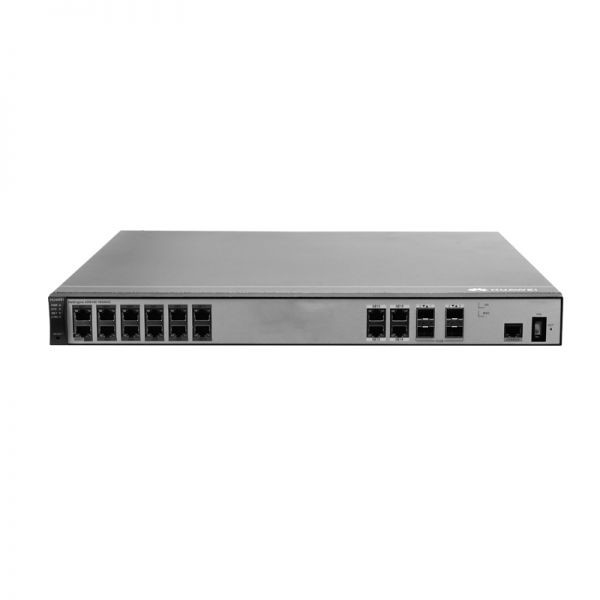

AR6140-16G4XG - Huawei NetEngine AR6100 Series Routers AR6140 - 16G4XG 300mbps industrial network router
Huawei's next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngine AR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified and cloud-based services are fully supported.
| Product Code | AR6140-16G4XG |
| Processor | 16-core, 1.85 GHz |
| Memory | 4 GB |
| Flash | 1 GB |
| Micro SD card (default sd1) | Not supported |
| Hard disk | Not supported |
|
Dimensions (H x W x D)
|
• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height • With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height |
| Processor | 16-core, 1.85 GHz |
| Memory | 4 GB |
| Maximum input current | 3 A |
| Maximum output power | 150 W |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| Product Code | AR6140-16G4XG | AR6140-9G-2AC |
| Processor | 16-core | 4-Core |
| Memory | 4 GB | 2 GB |
| Flash | 1 GB | 1 GB |
|
Dimensions (H x W x D)
|
• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height • With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height |
• With no rack-mounting bracket installed: 44.5 mm x 442 mm x 420 mm • With rack-mounting brackets installed: 44.5 mm x 482.6 mm x 572.5 mm
|
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V, 47 Hz to 63 Hz |
90 V to 264 V, 47 Hz to 63 Hz
|
| Maximum input current | 3 A | 3 A |
| Maximum output power | 150 W | 150W |
| Typical power consumption | 60 W | 18W |
| Maximum power consumption | 96.8 W | 32W |
| Fans | Built-in, unpluggable fans | Built-in, unpluggable fans |
| Airflow (facing the front panel) | Left to right | Left to right |
