Product Details:
|
Model: | JL262A | Name: | HPE JL262A - Aruba 2930F Switch |
---|---|---|---|
Key Words: | Poe Splitter | Detail: | Aruba 2930F 48G PoE+ 4SFP Switch |
Additional Ports And Slots: | 1 Dual-personality (RJ-45 Or USB Micro-B) Serial Console Port | Throughput: | Up To 77.4 Mp/s |
Switching Capacity: | 104 Gb/s | PoE Available Power: | 370 W |
High Light: | HP JL262AHPE Ethernet Switch,Aruba 2930F Ethernet Switch,poe splitter Ethernet Switch |

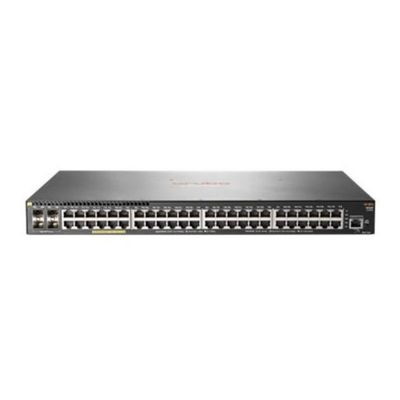

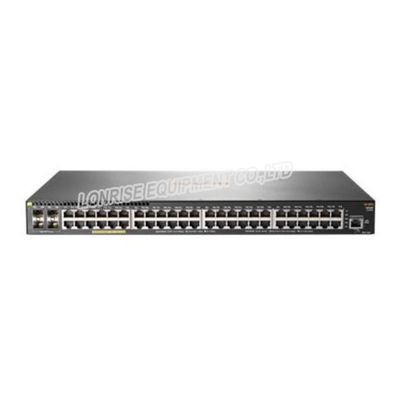

HP JL262AHPE Aruba 2930F 48G PoE+ 4SFP Switch dram optical ethernet switch
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL262A has 48 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Product Code | JL262A |
Type | Aruba 2930F 48G PoE+ 4SFP Switch |
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Throughput | up to 77.4 Mp/s |
Switching capacity | 104 Gb/s |
PoE Available Power | 370 W |
Dimensions |
4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in) 1U height |
Product Code | JL258A | JL259A | JL260A | JL261A | JL262A |
Type | Aruba 2930F 8G PoE+ 2SFP+ Switch | Aruba 2930F 24G 4SFP Switch | Aruba 2930F 48G 4SFP Switch | Aruba 2930F 24G PoE+ 4SFP Switch | Aruba 2930F 48G PoE+ 4SFP Switch |
I/O ports and slots |
· 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
Throughput | up to 41.7 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s |
Switching capacity | 56 Gb/s | 56 Gb/s | 104 Gb/s | 56 Gb/s | 104 Gb/s |
