Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV

Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV
Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV

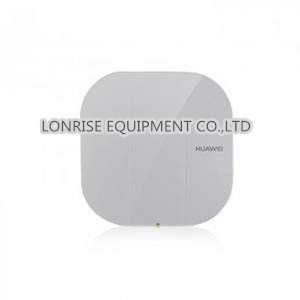

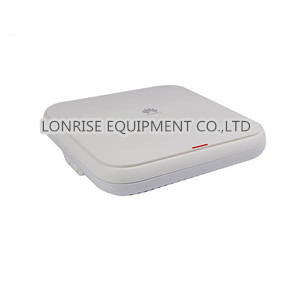

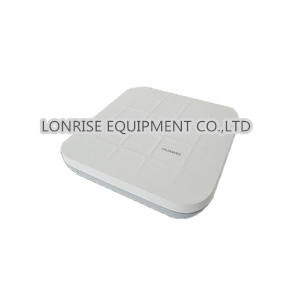

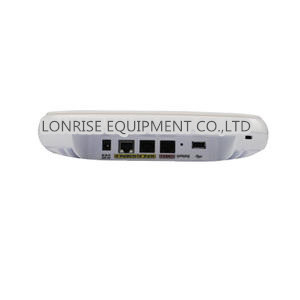

Large Image :  Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV

Product Details:
Brand Name: HUAWEI
Certification: CE
Contact Now

Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV

Description
Place Of Origin: Shanghai, China Model Number: AP7052DN
Chipset: 802.11ac Dimensions (H X W X D): 52 Mm X 220 Mm X 220 Mm
Maximum Rate: 3.46 Gbit/s Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2
Weight: 1.68 Kg System Memory: 512 MB DDR3L
High Light:

Huawei Access Point 4 X 4 MIMO

,

Four Spatial Streams Huawei Access Point

,

02351KDV Wireless Access Point

H Uawei Access Point AP7052DN 802.11ac Wave 2 Access Points, 4 X 4 MIMO 02351KDV



Product Description

Product Overview

Huawei’s AP7052DN and AP7152DN are the latest-generation 802.11ac Wave 2 Access Points (APs). They support 4 x 4 MIMO, four spatial streams, and 2.4G-to-5G switchover. In dual-5G mode, the device rate can reach up to 3.46 Gbit/s. The APs allow IoT application expansion through IoT modules and are applicable to enterprise office and education scenarios.
Specifications
AP7052DN & AP7152DN
Dimensions (H x W x D)
52 mm x 220 mm x 220 mm
Power Input
DC: 42.5V to 57V
PoE power supply: In compliance with IEEE 802.3at/bt; dual PoE power supply
Maximum Power Consumption
DC/802.3bt power supply: 33W (excluding the output power of the USB port)
802.3at power supply: 25.5W (the USB function and the 5 Gbit/s mode of network ports are unavailable. The IoT card power is lower
than 0.5 W.)

Note: The actual maximum power consumption depends on local laws and regulations
Operating Temperature
–10°C to 50°C
Antenna Type
AP7052DN: Built-in dual-band omnidirectional antennas
AP7152DN: External dual-band omnidirectional antennas
Maximum Number of Concurrent Users
≤ 512
Maximum Transmit Power
2.4G/5G (switchable): 26 dBm/21 dBm (combined power)
5G (non-switchable): 24 dBm (combined power)

Note: The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams
4 x 4:4
Radio Protocols
802.11a/b/g/n/ac/ac Wave 2
Maximum Rate
3.46 Gbit/s



Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV 0







Huawei Access Point AP7052DN 802.11ac Wave 2 Access Points 4 X 4 MIMO 02351KDV 1
