Product Details:
|

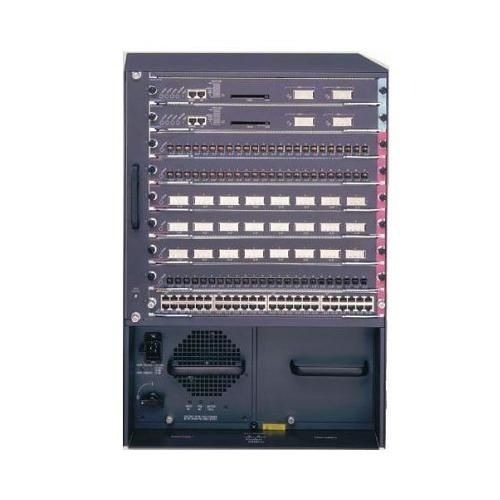

| Model: | WS-C6509-E | Name: | WS-C6509-E Catalyst 6500 Enhanced 9-slot Chassis 15RU |
|---|---|---|---|
| Detail: | Catalyst 6500 Enhanced 9-slot Chassis, 15RU, No PS, No Fan Tray | Module Compatibility: | All Modules Based On The Software Release In The System |
| With Supervisor Engine: | 32 ● 12.2(18)SXF | Inches: | 24.5 X 17.5 X 18.2 |
| Rack Units (RU): | 14 | MOQ: | 1 |
| Condition: | Original New | ||
| High Light: | Catalyst 6500 Slot Chassis,Enhanced 9 Slot Chassis |
||
WS-C6509-E Specification |
|
| Number of Slots | 9 |
| Supervisor Compatibility |
Cisco Catalyst 6500 Series Supervisor Engine 32 Cisco Catalyst 6500 Series Supervisor Engine 720-3B Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL Cisco Catalyst 6500 Series Supervisor Engine 2T |
|
Power Supply Compatibility * Indicates EoS Power Supply |
AC: 2500W*, 3000W, 4000W, 6000W, 8700W DC: 2500W, 4000W, 6000W |
| Module Compatibility | All modules based on the software release in the system |
| With Supervisor Engine 32 | ● 12.2(18)SXF |
| With Supervisor Engine 720 | ● 12.2(14)SX |
| With Supervisor Engine 720-10 GE | ● 12.2(33)SXH |
| With Supervisor Engine 2T-10 GE | ● 15.0(1)SY |
|
Reliability and Availability Calculated Mean Time Between Failure (MTBF) |
348,935 |
| Inches | 24.5 x 17.5 x 18.2 |
| Centimeters | 62.2 x 44.5 x 46.0 |
| Rack Units (RU) | 14 |
| Chassis Only (lbs) | 60 |
| Fully Configured (lbs) | 190 |
| Input Voltage |
100 to 240 VAC -48 to -60 VDC |
| Safety |
UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 |
| EMC |
FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 |
| NEBS/ETSI |
GR-1089-Core NEBS Level 3 ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
| ATIS Pb free and Energy Efficiency |
ATIS-0600020.2010 Pb Free circuit packs ATIS-0600015-2009 General Energy Efficiency Requirements (TEER) ATIS-0600015.03-2009 Switch and Router Energy Efficiency ATIS-0600015.01-2009 Server Energy Efficiency VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER) |
| Operating Temperature | 32°F to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 149°F (-20 to 65°C) |
| Thermal Transition |
0.5°C per minute (hot to cold) 0. 33°C per minute (cold to hot) |
| Relative Humidity |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Operating Altitude |
Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) |
| Models | WS-C6509-E | WS-C6506-E |
| Type | Catalyst 6509-E Chassis | Catalyst 6506-E Chassis |
| Slots | 9 | 6 |
| Supervisor Compatibility |
Cisco Catalyst 6500 Series Supervisor Engine 32 Cisco Catalyst 6500 Series Supervisor Engine 720-3B Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL Cisco Catalyst 6500 Series Supervisor Engine 2T |
|
