Huawei AP3010DN-V2 Dual-Band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points

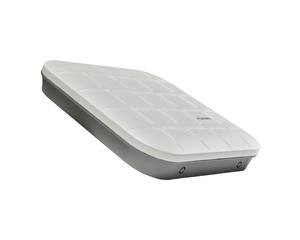

Large Image : Huawei AP3010DN-V2 Dual-Band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points

Product Details:

Place of Origin:	CHINA
Brand Name:	HUAWEI
Certification:	CE
Model Number:	AP3010DN-V2

Contact Now

Huawei AP3010DN-V2 Dual-Band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points

Description

Application:	Schools, Hotels, Hospitals,offices	Radio Protocols:	802.11a/b/g/n/ac/ac Wave 2
Maximum Rate:	1.267 Gbit/s	Maximum Power Consumption:	11.5W
Maximum Transmit Power:	2.4G: 23 DBm 5G: 23 DBm	Antenna Type:	Built-in Smart Antennas
SSIDs For Each Radio Channel:	≤ 16	MIMO:	Spatial Streams: 2 X 2:2
High Light:	Wireless Ceiling Gigabit Network Switch , Huawei Network Ethernet Switch Dual Band , AP3010DN-V2 Optical Ethernet Switch

Huawei AP3010DN-V2 Dual-band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points

Product Description

Item	Description
Interface type	1 x 10/100/1000M port that connects to the wired Ethernet and supports PoE input.
LED indicator	Indicates the power-on, startup, running, alarm, and fault status of the system.
Antenna type	Built-in dual-band omnidirectional antennas
Antenna gain	2.4G: 4 dBi 5G: 6 dBi
Maximum number of VAPs for each radio	16
Maximum number of users	Fit AP: ≤ 128 Fat AP: ≤ 64
Maximum transmit power	2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations.
Maximum number of non-overlapping channels	2.4 GHz (2.412 GHz to 2.472 GHz) * 802.11b/g * 20 MHz: 3 * 802.11n * 20 MHz: 3 * 40 MHz: 1 5 GHz (5.18 GHz to 5.825 GHz) * 802.11a * 20 MHz: 13 * 802.11n * 20 MHz: 13 * 40 MHz: 6 * 802.11ac * 20 MHz: 13 * 40 MHz: 6 * 80 MHz: 3 NOTE The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance.
Channel rate supported	802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 to 300 Mbit/s 802.11ac: 6.5 to 867 Mbit/s
System memory	256 MB DDR2 32 MB flash
Power input	DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3af/at
Maximum power consumption	10.2 W NOTE The actual maximum power consumption depends on local laws and regulations.
Operating temperature and altitude	-60 m to +1800 m: -10°C to +50°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.
Storage temperature	–40°C to +70°C
Operating humidity	5% to 95% (non-condensing)
IP rating	IP41
Atmospheric pressure	70 kPa to 106 kPa
Weight	0.4 kg
Dimensions (H x W x D)	39.5 mm x 180 mm x 180 mm

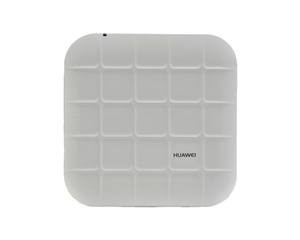

Huawei AP3010DN-V2 Dual-Band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points 0

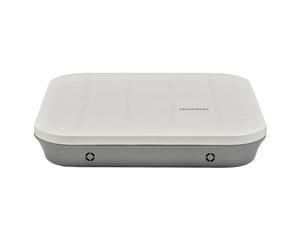

Huawei AP3010DN-V2 Dual-Band Wireless Ceiling Access Point AP3010DN-V2 Indoor Access Points 1
