Product Details:
|
| Model: | WX3510H | Name: | Huawei WX3500H Access Controller For Ready To Seal Best Price |
|---|---|---|---|
| Dimensions (WxDxH): | 440mm×430mm×43.6mm | Condition: | 100% Original Brand |
| MOQ: | 1PC | Port: | Shanghai |
| Weight: | 7.3kg (installed With Dual Power Supplies) | Max Power Consumption: | <300W |
| High Light: | 300w Switch Network Device,WX3500H Network Ethernet Switch,Huawei Optical Ethernet Switch |
||

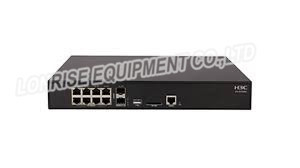

Huawei WX3500H Access Controller for ready to seal best price
The H3C WX3500H series wireless access controller is the latest generation of unified wired and wireless access controller featuring high performance, large capacity, high reliability and versatile business services and is targeted at enterprise networks. The WX3500H series AC equips with a high performance multi-core CPU and it adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, next generation CUPID wireless positioning technology, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud computing management, layered AC and IRF.H3C WX3500H series AC consists of three models: WX3510H, WX3520H and WX3540H. When paired with H3C Fit Access Point (AP), it serves as an ideal access control solution for WLAN access of medium to large enterprise campus networks and wireless MAN coverage.
|
Item |
WX3510H |
WX3520H |
WX3540H |
|---|---|---|---|
| Dimensions (WxDxH) | 440mm×430mm×43.6mm | ||
| Weight | 7.3kg (installed with dual power supplies) | ||
| Port |
8 GE+SFP combo 1 console |
8 GE+SFP combo 2 SFP+ 1 console |
8 GE+SFP combo 2 SFP+ 1 console 1 OBM |
| Power supplies | Swappable power supply, 1+1 redundant backup, AC or DC (separately ordered) | ||
| Max power consumption | <300W | ||
| Operating and storage temperature | 0℃～45℃/-40℃～70℃ | ||
| Operating and storage relative humidity | 5%～95% | ||
| Safety Compliance |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
||
| EMC |
ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
||
| MTBF | ≥38 years | ||
|
Item |
Features |
WX3510H |
WX3520H |
WX3540H |
|---|---|---|---|---|
| Basic functions | Number of managed APs by default | 0 | ||
| Size of license | 8/16/32/128 | |||
| Maximum number of managed APs | 256 | 512 | 1024 | |
| Maximum configurable number of APs | 1024 | 2048 | 4096 | |
| 802.11MAC | 802.11 Protocols | |||
| Multi-SSID (Per RF) | 16 | |||
| SSID hiding | ||||
| 11G protection | ||||
| 11n only | ||||
| Use number limit | Supported: SSID based, per RF based | |||
| Keepalive | ||||
| Idle | ||||
| Multi-country code assignment | ||||
| Wireless user isolation |
Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation |
|||
| 20MHz/40MHz auto-switch in 40MHz mode | ||||
| Local forwarding | Local forwarding based on SSID+VLAN | |||
| CAPWAP | Auto AP serial number entry | |||
| AC discovery (DHCP option43, DNS) | ||||
| IPv6 tunnel | ||||
| Clock synchronization | ||||
| Jumbo frame forwarding | ||||
| Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address | |||
| NAT traversal between AP and AC | ||||
| Roaming | Intra-AC, Inter-AP L2 and L3 roaming | |||
| Inter-AC, Inter-AP L2 and L3 roaming | ||||
| Access control | Open system, Shared-Key | |||
| WEP-64/128, dynamic WEP | ||||
| WPA, WPA2, WPA3 | ||||
| TKIP | ||||
| CCMP | (11n recommended) | |||
| WAPI | ||||
| SSH v1.5/v2.0 | ||||
| Wireless EAD (End-point Access Domination) | ||||
| Portal authentication | Supported: Remote Authentication, external server | |||
| Portal page redirection | Supported: SSID based, AP Portal page push | |||
| Portal by-pass Proxy | ||||
| 802.1X authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | |||
| Local authentication | 802.1X, Portal, MAC authentication | |||
| LDAP authentication |
802.1X and Portal EAP-GTC and EAP-TLS supported by 802.1X login |
|||
| AP location-based user access control | ||||
| Guest Access control | ||||
| VIP channel | ||||
| ARP attack detection | Supported: Wireless SAVI | |||
| SSID anti-spoofing | SSID+user name binding | |||
| AAA server selection based on SSID and domain | ||||
| AAA server back up | ||||
| Local AAA server for wireless user | ||||
| TACACS+ | ||||
| QoS | Priority mapping | |||
| L2-L4 packet filtering and traffic classfication | ||||
| Rate limit | Supported with granularity of 8Kbps | |||
| 802.11e/WMM | ||||
| Access control based on user profile | ||||
|
Intelligent bandwidth limit (equal bandwidth share algorithm) |
||||
| Intelligent bandwidth limit (user specific) | ||||
| Intelligent bandwidth guarantee |
Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested |
|||
| QoS Optimization for SVP phone | ||||
| CAC(Call Admission Control) | Supported: based on user number/bandwidth | |||
| End-to-end QoS | ||||
| AP upload speed limit | ||||
| RF management | Country code lock | |||
| Static channel and power configuration | ||||
| Auto channel and power configuration | ||||
| Auto transmission rate adjustment | ||||
| Coverage hole detection and correction | ||||
| Load balancing | Supported: based on traffic, user & frequency (dual-frequency supported) | |||
| Intelligent load balancing | ||||
| AP load balancing group | Supported: auto-discovery and flexible setting | |||
| Security | Static blacklist | |||
| Dynamic blacklist | ||||
| White list | ||||
| Rogue AP detection | Supported: SSID based, BSSID, device OUI and more | |||
| Rouge AP countermeasure | ||||
| Flooding attack detection | ||||
| Spoof attack detection | ||||
| Weak IV attack detection | ||||
| wIPS | Supported: 7-layer mobile security | |||
| Layer 2 protocol | ARP (gratuitous ARP) | |||
| 802.1p | ||||
| 802.1q | ||||
| 802.1x | ||||
| Broadcast storm suppression | ||||
| IP protocol | IPv4 protocol | |||
| Native IPv6 | ||||
| IPv6 SAVI | ||||
| IPv6 Portal | ||||
| Multicast | MLD Snooping | |||
| IGMP Snooping | ||||
| Multicast group | 256 | |||
| Multicast to Unicast (IPv4, IPv6) | Supported: Set unicast limit based on operating environment | |||
| Redundancy | 1+1 failover between ACs | |||
| Intelligent AP sharing among ACs | ||||
| Remote AP | ||||
| DHCP Server Hot Standby | ||||
|
Management and deployment |
Network management | WEB, SNMP v1/v2/v3, RMON and more | ||
| Network deployment | WEB, CLI, Telnet, FTP and more | |||
| WiFi location | CUPID location | |||
| Green features | Scheduled shutdown of AP RF interface | |||
| Scheduled shutdown of wireless service | ||||
| Per-packet power adjustment (PPC) | ||||
| WLAN application | RF Ping | |||
| Remote probe analysis | ||||
| RealTime Spectrum Guard (RTSG) | ||||
| Wireless Intelligent Application Aware (wIAA) | Supported/ Stateful Inspection Firewall | |||
| Packet forwarding fairness adjustment | ||||
| 802.11n packet forwarding suppression | ||||
| Access based traffic shaping | ||||
| Co-AP channel sharing | ||||
| Co-AP channel reuse | ||||
| RF interface transmission rate adjustment algorithm | ||||
| Drop wireless packet with weak signal | ||||
| Disable user access with weak signal | ||||
| Disable multicast packet caching | ||||
| Status blink(limited to some AP) | ||||
