Product Details:
|
| Model: | SFP-GE-LX-SM1310 | Name: | Huawei SFP - GE - LX - SM1310 Optical Transceiver Best Price |
|---|---|---|---|
| Detail: | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | MOQ: | 1 |
| Port: | Shanghai | Condition: | 100% Original New |
| Transmission Speed: | 1 Gbit/s | Applicable Cable And Maximum Transmission Distance: | Single-mode Fiber: 10 Km |
| High Light: | Single Mode Huawei SFP Module,SFP Single Mode Transceiver,Optical SFP Transceiver Module |
||

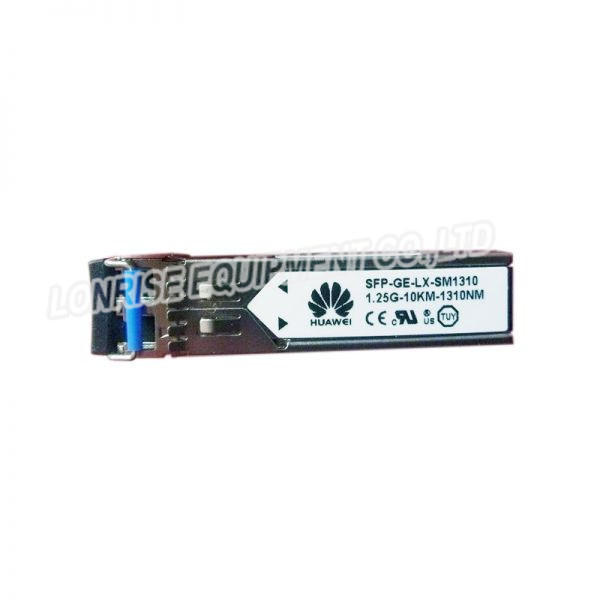

Huawei SFP - GE - LX - SM1310 Optical Transceiver best price
| Product Code | SFP-GE-LX-SM1310 |
| Transceiver form factor | eSFP |
| Transmission speed | 1 Gbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 1000base-LX/LH |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -9.0 to -3.0 |
| Maximum receiver sensitivity (dBm) | -20.0 |
| Overload power (dBm) | -3.0 |
| Extinction ratio (dB) | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
the comparison of S-SFP-GE-LH40-SM1310 and SFP-GE-LX-SM1310.
| Item | S-SFP-GE-LH40-SM1310 | SFP-GE-LX-SM1310 |
| Transceiver form factor | eSFP | eSFP |
| Transmission speed | 1 Gbit/s | 1 Gbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 1000base-LX/LH | 1000base-LX/LH |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 40 km | Single-mode fiber: 10 km |
| Transmit power (dBm) | -5.0 to 0 | -9.0 to -3.0 |
| Maximum receiver sensitivity (dBm) | -23 | -20.0 |
| Overload power (dBm) | -3.0 | -3.0 |
| Extinction ratio (dB) | 9 | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 | 110 x 70 x 37 |
