Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE

Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE
Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE

Large Image :  Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE

Product Details:
Place of Origin: China
Brand Name: H3C
Certification: CE
Model Number: SFP-GE-SX-MM850-A

Huawei SFP - GE - SX - MM850 - A - H3C Multimode Transceivers 1000BASE

Description
Model: SFP-GE-SX-MM850-A Name: SFP - GE - SX - MM850 - A - H3C Other Products Best Price
Detail: 1000BASE-SX SFP Multimode Transceivers(850nm,0.55km,LC) Port: Shanghai
Condition: 100% Original New MOQ: 1
Connector: Duplex LC Transmitter: Type VCSEL
High Light:

SFP-GE-SX-MM850-A Gigabit SFP Module

,

1000BASE Multimode SFP Module

,

Huawei Multimode Transceivers

SFP - GE - SX - MM850 - A - H3C Other Products best price

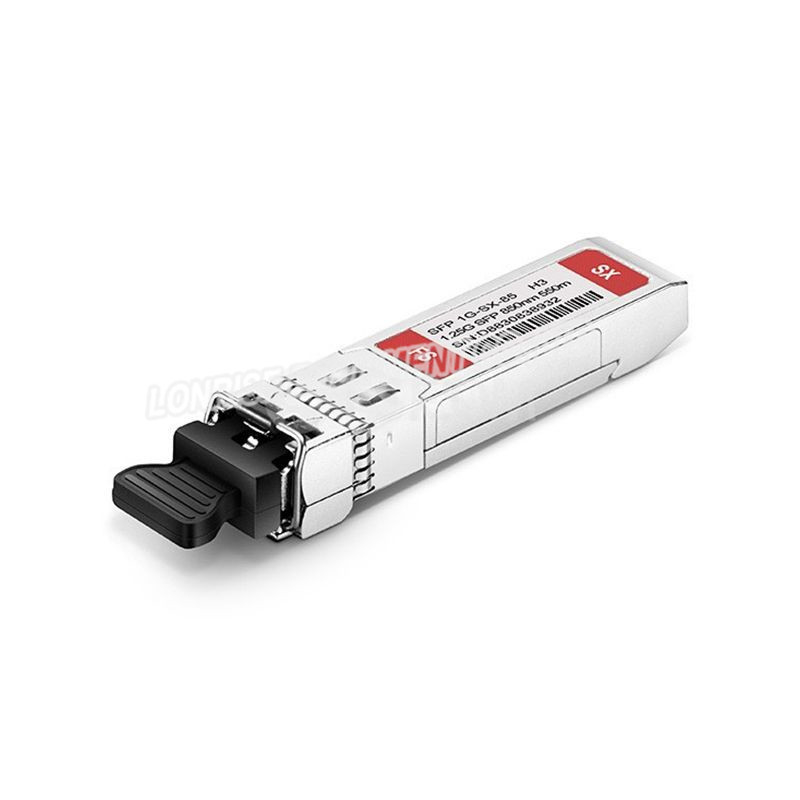

H3C SFP-GE-SX-MM850-A compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Description
H3C Compatible
SFP-GE-SX-MM850-A
Vendor Name
FS
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
850nm
Max Cable Distance
550m@50/125µm OM2 MMF
275m@62.5/125µm OM1 MMF
220m@62.5/125µm FDDI MMF
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (23 to 158°F)
TX Power
-9.5 ~ - 3dBm
Receiver Sensitivity
< -17dBm
Typical Power Consumption
≤0.8w
Receiver Overload
-3dBm
Bit Error Ratio (BER)
1E-12
Extinction Ratio
>9dB
EMC (Electro Magnetic Compatibility)
Supported
MTBF
1,000,000 Hours
Protocols
IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty
1 Years
