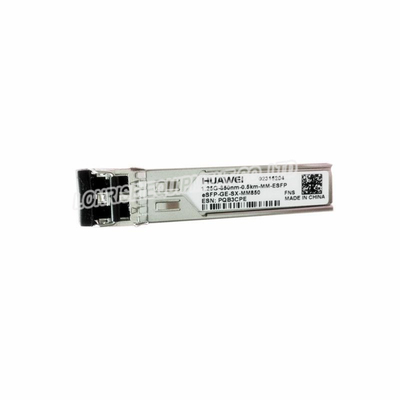

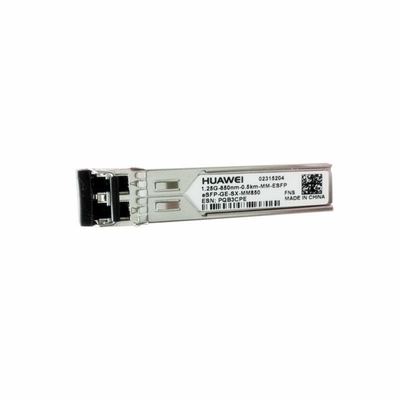

Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm

Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm
Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm

Large Image :  Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: SFP-GE-SX-MM850

Huawei ESFP-GE-SX-MM850 Optical Transceiver LC Connector 850nm

Description
Model: SFP-GE-SX-MM850 Name: Huawei ESFP - GE - SX - MM850 Optical Transceiver Best Price
Detail: Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.5km,LC) Port: Shanghai
MOQ: 1 Condition: 100% Original New
Transmission Speed: GE Connector Type: LC
Highlight:

SFP Module LC Connector

,

850nm SFP Module Multimode

,

Huawei SFP Optical Transceiver

Huawei eSFP - GE - SX - MM850 Optical Transceiver specification:



The SFP-GE-SX-MM850 is a Small Form-Factor Pluggable (SFP) transceiver module designed for gigabit Ethernet applications. This specific model provides multimode fiber connectivity, making it suitable for short-distance data transmission.

Key Features:

  • Data Rate: Supports a 1 Gbps (Gigabit Ethernet) data rate.
  • Wavelength: Operates at an 850 nm wavelength, which is optimal for multimode fiber connections.
  • Distance: Capable of transmitting data over distances up to 550 meters on OM2 multimode fiber and up to 300 meters on OM1 multimode fiber.
  • Connector Type: Utilizes a LC duplex connector for easy integration with existing fiber infrastructure.

Use Cases:

  • Data Centers: Ideal for connecting switches, routers, and servers within data centers.
  • Campus Networks: Used to link different buildings or sections of a campus network with high-speed connections.
  • Enterprise Networking: Suitable for internal connections within enterprise environments, ensuring high bandwidth and low latency.

Benefits:

  • Hot-Swappable: Can be replaced or added without powering down the connected devices, allowing for easy upgrades and maintenance.
  • Compatibility: Works with a variety of network devices from different manufacturers, providing flexibility in network design.
  • Cost-Effective: Provides an economical solution for high-speed fiber connectivity without the need for specialized equipment.



Product Code eSFP-GE-SX-MM850
Transceiver form factor eSFP
Transmission speed GE
Center wavelength (nm) 850
Standard compliance 1000base-SX
Connector type LC

Applicable cable and maximum

transmission distance

· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km
· Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
· Multimode fiber (OM2): 0.55 km
· Multimode fiber (OM3): 1 km
Transmit power (dBm) -9.5 to -2.5
Maximum receiver sensitivity (dBm) -17.0
Overload power (dBm) 0
Extinction ratio (dB) 9
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 110 x 70 x 37



the comparison of eSFP-GE-SX-MM850 and SFP-GE-LX-SM1310.

Item eSFP-GE-SX-MM850 SFP-GE-LX-SM1310
Transceiver form factor eSFP eSFP
Transmission speed GE 1 Gbit/s
Center wavelength (nm) 850 1310
Standard compliance 1000base-SX 1000base-LX/LH
Connector type LC LC

Applicable cable and maximum

transmission distance

· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km
· Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
· Multimode fiber (OM2): 0.55 km
· Multimode fiber (OM3): 1 km
Single-mode fiber: 10 km
Transmit power (dBm) -9.5 to -2.5 -9.0 to -3.0
Maximum receiver sensitivity (dBm) -17.0 -20.0
Overload power (dBm) 0 -3.0
Extinction ratio (dB) 9 9
Operating temperature 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 110 x 70 x 37 110 x 70 x 37



the Huawei hot switches which support eSFP-GE-SX-MM850.

Model Description
S5700-28P-LI-AC 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28TP-LI-AC 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S5700S-52P-LI-AC 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28P-PWR-LI-AC 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
S5700-10P-PWR-LI-AC 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
S5720-36C-EI-AC

28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,

4 10 Gig SFP+, 1 interface slot, with 150W AC

S5700-28C-EI-AC 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
S5720-56C-HI-AC 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
S5720-56PC-EI-AC 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
S5720-56C-PWR-HI-AC 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply
