Product Details:
|
| Description: | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC,SM,10km | Modle: | SFP-GE-LX-SM1310-BIDI |
|---|---|---|---|
| Name: | Huawei SFP - GE - LX - SM1310 - BIDI - Huawei OptiX PTN 905B SFP Module | Detail: | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC, |
| Port: | Shanghai | MOQ: | 1 |
| Condition: | Original New | Discount Category: | SFP Module |
| High Light: | Huawei OptiX PTN 905B SFP Module,Huawei BiDi Transceiver,OptiX PTN 905B SFP Transceiver |
||

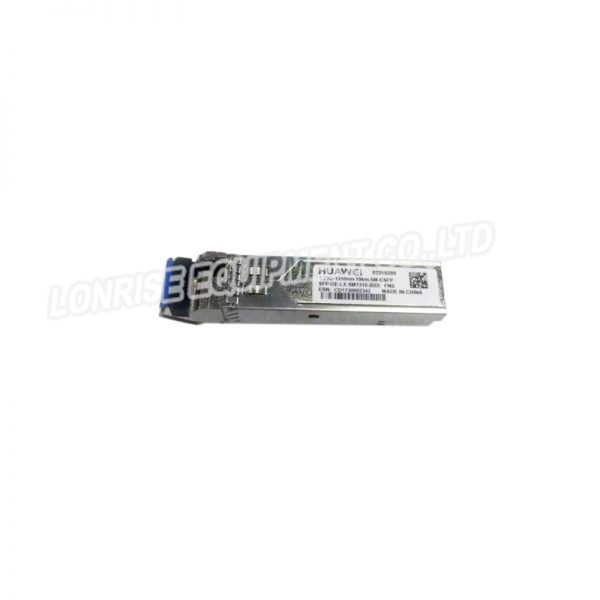

Huawei SFP - GE - LX - SM1310 - BIDI - Huawei OptiX PTN 905B SFP Module
The Compatible SFP BIDI transceivers are high performance, cost effective modules supporting duplex data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
SFP-GE-LX-SM1310-BIDI Specification |
|
| Model | SFP-GE-LX-SM1310-BIDI |
| Description | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC,SM,10km |
| Discount Category | SFP Module |
| Product Line | Networking |
| Product Series | OptiX PTN 905B |
| UOM | PCS |
the comparison of SFP-GE-LX-SM1310-BIDI and XFP-1310-STM64/FC10G/10GbE/OTU2-10km.
| Product Code | SFP-GE-LX-SM1310-BIDI | XFP-1310-STM64/FC10G/10GbE/OTU2-10km |
| Part Number | 34060470-001 | 34060313 |
| Description | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC,SM,10km | Optical Transceiver,XFP,1310nm,9.95~11.1Gb/s,-6dBm~-1dBm,-14.4dBm,LC,SM,10km |
the Quick Specs.
| Product Code | SFP-GE-LX-SM1310-BIDI |
| Part Number | |
| Description | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC,SM,10km |
| Discount Category | SFP Module |
| Product Line | Networking |
| Product Series | OptiX PTN 905B |
| UOM | PCS |
| Part Number | 34060470-001 |
