Product Details:
|
| Model: | SFP-1000BaseT | Name: | Huawei SFP - 1000BaseT - Huawei MA5608T(F01S200) SFP (Outsourcing) |
|---|---|---|---|
| Detail: | 1000BASE-T (RJ45) SFP Electrical Module,Auto Negotiate,100m | Port: | Shanghai |
| MOQ: | 1 | Transceiver Form Factor: | SFP |
| Standard Compliance: | 1000Base-T | Connector Type: | RJ45 |
| High Light: | 1000Base-T Huawei SFP Module,MA5608T Optical SFP Module,RJ45 Connector SFP Optical Transceiver |
||

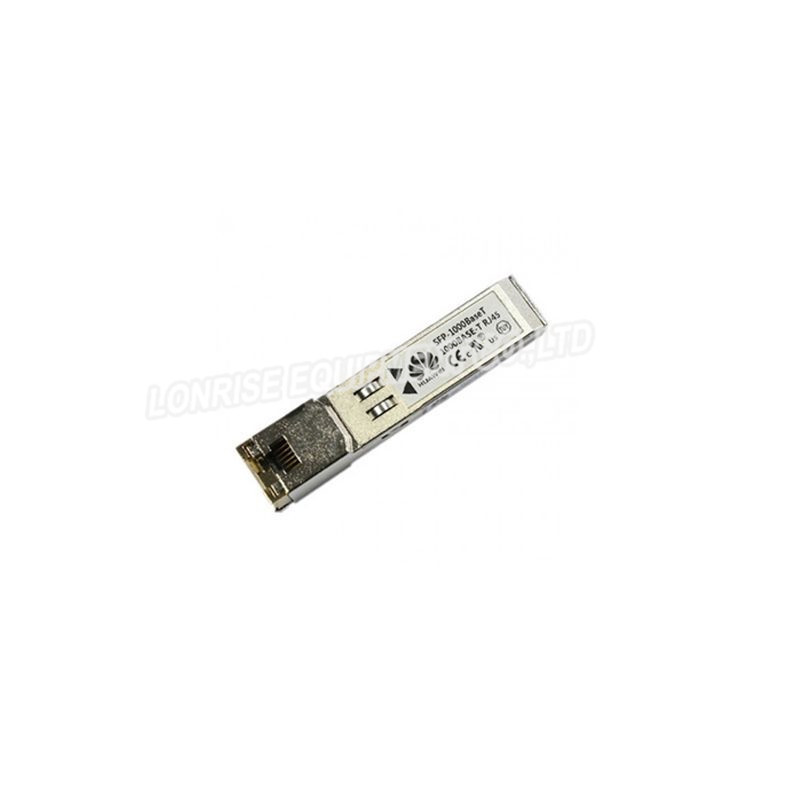

Huawei SFP - 1000BaseT - Huawei MA5608T(F01S200) SFP (Outsourcing)
SFP-1000BaseT Specification |
|
| Transceiver form factor | SFP |
| Transmission speed | The transmission speed varies depending on the port where the copper transceiver module is used. It supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s speeds when used on a GE optical port, and can only work at 1000 Mbit/s when used on a 10GE optical port. |
| Standard compliance | 1000Base-T |
| Connector type | RJ45 |
| Applicable cable and maximum transmission distance | Ethernet cable: 0.1 km |
| Typic Power(W) | 1 |
the Quick Specs.
| Product Code | SFP-1000BaseT |
| Transceiver form factor | SFP |
| Transmission speed | The transmission speed varies depending on the port where the copper transceiver module is used. It supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s speeds when used on a GE optical port, and can only work at 1000 Mbit/s when used on a 10GE optical port. |
| Standard compliance | 1000Base-T |
| Connector type | RJ45 |
| Applicable cable and maximum transmission distance | Ethernet cable: 0.1 km |
| Typic Power(W) | 1 |
the Huawei hot switches which support SFP-1000BaseT.
| Model | Description |
| S2700-26TP-EI-DC | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V |
| S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
| S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
| S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
| S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
the comparison of SFP-FE-SX-MM1310 and SFP-1000BaseT.
| Item | SFP-FE-SX-MM1310 | SFP-1000BaseT |
| Transceiver form factor | SFP | SFP |
| Transmission speed | Fast Ethernet |
The transmission speed varies depending on the port where the copper transceiver module is used. It supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s speeds when used on a GE optical port, and can only work at 1000 Mbit/s when used on a 10GE optical port. |
| Connector type | LC | RJ45 |
| Applicable cable and maximum transmission distance | Multimode fiber (50 μm or 62.5 μm diameter): 2 km | Ethernet cable: 0.1 km |
