Product Details:
|
Name: | S5736-S48S4X-D - Huawei CloudEngine S5736-S Series All-Optical Switches | Detail: | Huawei CloudEngine S5736-S Series All-Optical Switches S5736-S48S4X-D - 48 X GE SFP Ports, 4 X 10 GE SFP+ Ports |
---|---|---|---|
Model: | S5736-S48S4X-D | Forwarding Performance: | 780/810 Mpps |
Switching Capacity2: | 2.72/27.2 Tbit/s | Fixed Ports: | 48 X GE SFP Ports, 4 X 10 GE SFP+ Ports |
Flexible Upgrade: | Smooth Upgrade Of Downlink Ports From GE To 10 GE Based On RTU Licenses | IP Routing: | Static Route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
High Light: | Static Route Huawei CloudEngine Switches,810 Mpps Huawei S Series Switches,Optical Huawei CloudEngine Switches |

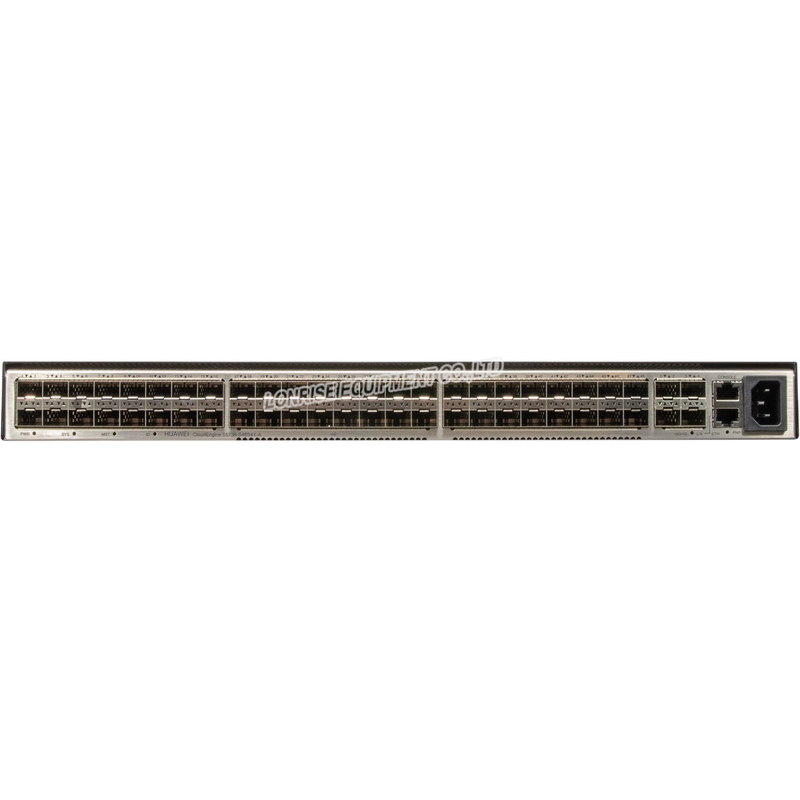

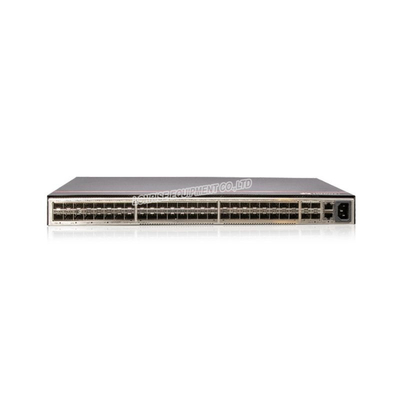

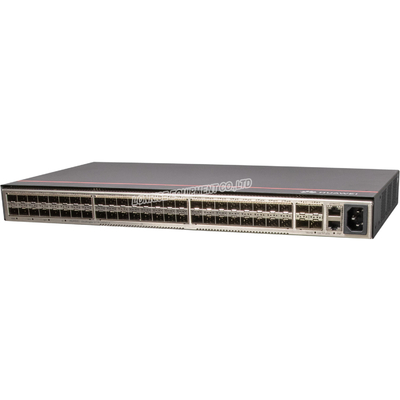

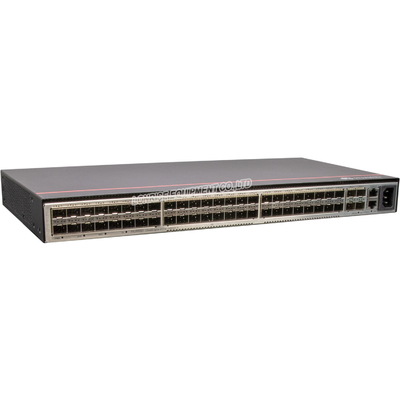

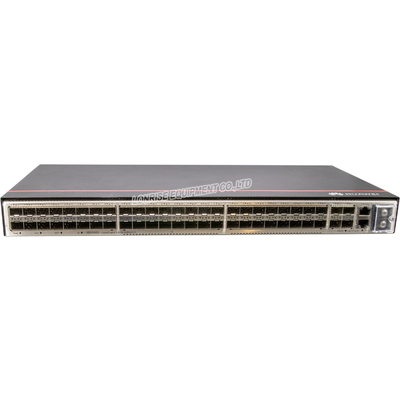

S5736 - S48S4X - D Huawei CloudEngine S5736 - S Series All - Optical Switches
Huawei CloudEngine S5736-S Series All-Optical Switches S5736-S48S4X-D - 48 x GE SFP ports, 4 x 10 GE SFP+ ports
Parameters | CloudEngine S5736-S48S4X-D |
Forwarding Performance | 780/810 mpps |
Switching Capacity2 | 2.72/27.2 Tbit/s |
Fixed Ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
Flexible Upgrade | Smooth upgrade of downlink ports from GE to 10 GE based on RTU licenses |
MAC Features | IEEE 802.1d compliance Automatic MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
VLAN Features | 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
Super Virtual Fabric (SVF) | Plug-and-play of SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client running |
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
