Product Details:
|
Name: | Huawei S5735 - L Switch 24 X 10 / 100 / 1000Base - T Ports 4 X GE SFP Ports | Model: | S5735-L24T4S-A1 |
---|---|---|---|
Forwarding Performance: | 42 Mpps | Switching Capacity2: | 56 Gbit/s/336 Gbit/s |
Fixed Ports: | 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports | PoE+: | Not Supported |
S5735-L24T4S-A Specification: | Forwarding Performance 42 Mpps Switching Capacity2 56 Gbit/s/336 Gbit/s Fixed Ports 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports | ||
High Light: | SFP Ports Huawei Cloudengine S5735,24 X 10BASE Huawei Cloudengine Switches,42 Mpps Huawei S Series Switches |

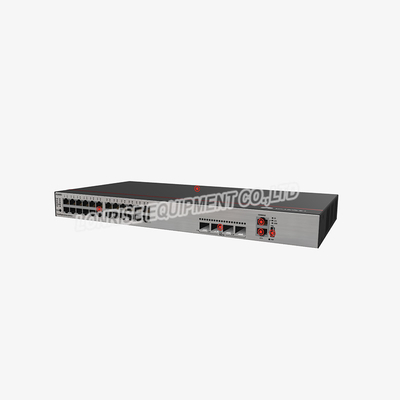

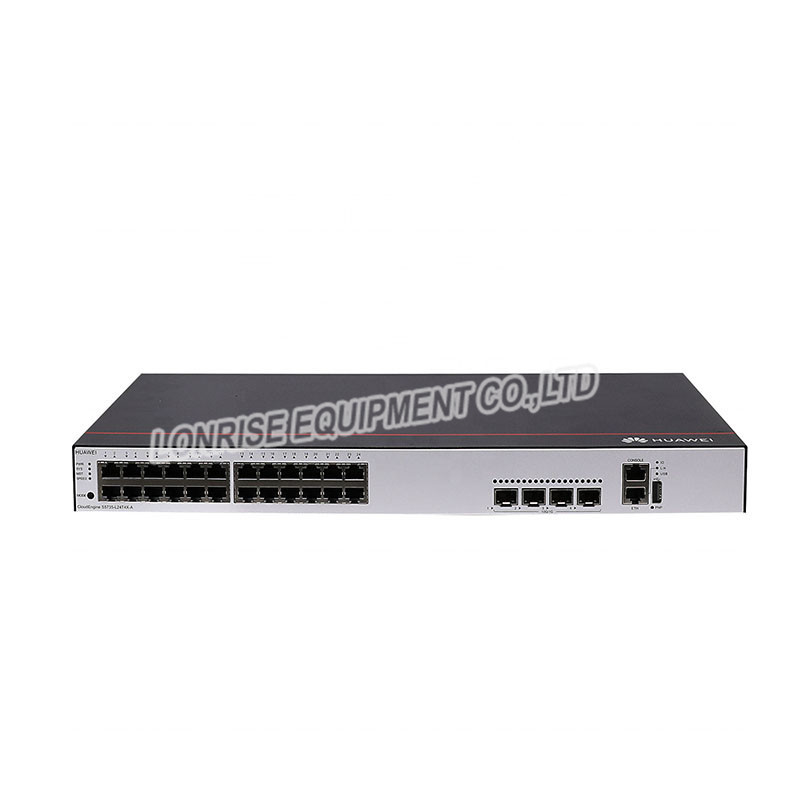

Huawei S5735 - L switch 24 x 10 / 100 / 1000Base - T ports 4 x GE SFP ports
S5735-L24T4S-A Specification |
|
Forwarding Performance | 42 Mpps |
Switching Capacity2 | 56 Gbit/s/336 Gbit/s |
Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
PoE+ | Not supported |
MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations |
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
the comparison.
Product Model |
S5735-L24T4S-A |
S5735-L48T4S-A | S5735-L32ST4X-A | |||
Forwarding Performance | 24 Mpps | 42 Mpps | 96 Mpps | 78 Mpps | 132 Mpps | 108 Mpps |
Switching Capacity2 | 32 Gbit/s/336 Gbit/s | 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s | 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s | 144 Gbit/s/432 Gbit/s |
Fixed Ports | 12 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
PoE+ | CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not supported |
