Product Details:
|
Name: | Huawei S5720-28X-PWR-SI Bundle(24 Ethernet 10/100/1000 PoE+ Ports,4 Of Which Are Dual-purpose 10/100/1000 Or SFP,4 10 Gig SFP+,with 500W AC Power) | Model: | S5720-28X-PWR-SI |
---|---|---|---|
Downlink Ports: | 24 × Ethernet 10/100/1000 PoE+ Ports, 4 Of Which Are Dual-purpose 10/100/1000 Or SFP | Uplink Interfaces: | 4 × 10 Gig SFP+ |
Forwarding Performance: | 96 Mpps | Switching Capacity: | 336 Gbit/s |
Stack: | Supported | Stack Ports: | GE Electrical Ports And 10GE SFP+ Optical Ports Except Combo Ports On The Front Panel |
Memory (RAM): | 512 MB | Flash: | 240 MB |
Dimensions (W X D X H): | 44.2 Cm X 42 Cm X 4.44 Cm | Weight (Kg): | 9.3 Kg |
High Light: | Bundle 24 Ethernet Switch,336 Gbit/s Huawei Switch S5720,GE Electrical Ports Huawei Switch S5720 |
Huawei S5720 - 28X - PWR - SI Bundle 24 Ethernet 10 / 100 / 1000 PoE + ports 4 10 Gig SFP +

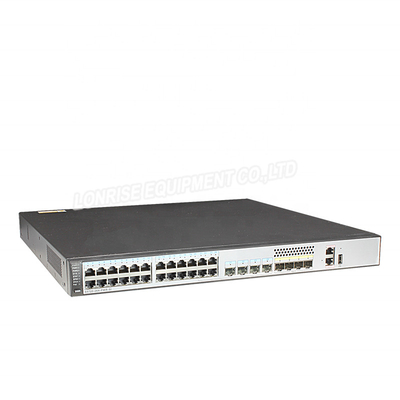

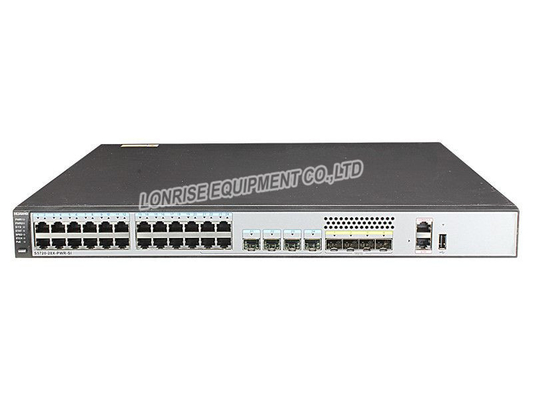

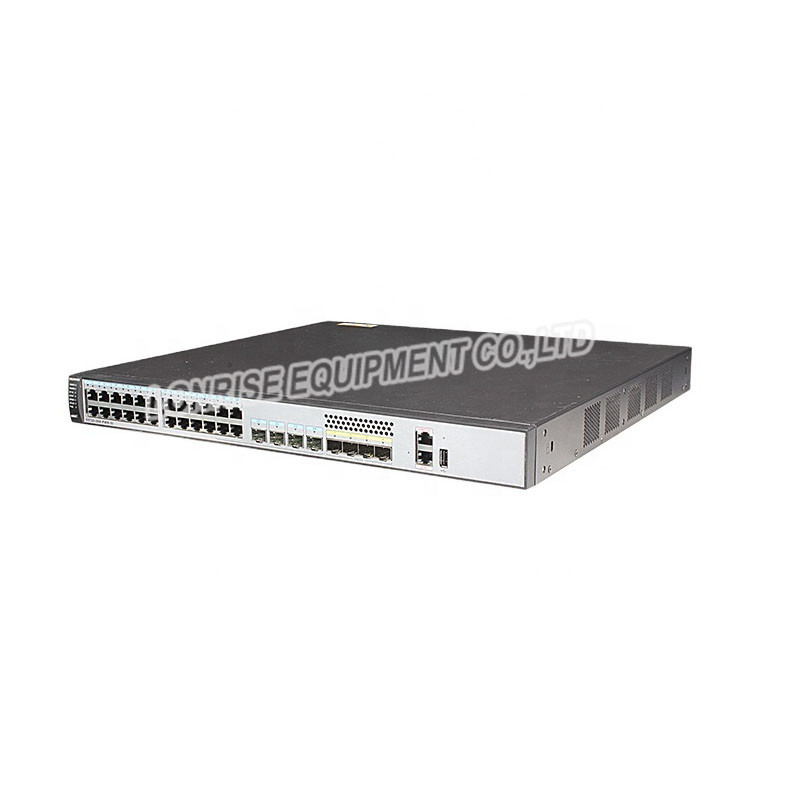

Huawei S5720-28X-PWR-SI-AC is a Layer 3 Ethernet switch. It supports twenty-four Ethernet 10/100/1,000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, and 4 x 10G SFP+. It offers double hot-swappable AC/DC power supplies, one AC power module is configured by default.
S5720-28X-PWR-SI-AC Specification |
|
Fixed Port |
24 × Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP |
MAC address table | IEEE 802.1d compliance |
MAC address learning and aging | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
MAC address entries: S5700-SI series - 16K | |
VLAN | 4K VLANs |
Guest VLAN and voice VLAN | |
GVRP | |
MUX VLAN | |
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
1:1 and N:1 VLAN Mapping | |
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
Ring protection | RRPP ring topology and RRPP multi-instance |
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
SEP | |
ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | |
STP, RSTP, and MSTP | |
BPDU protection, root protection, and loop protection | |
BPDU Tunnel | |
Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) |
ITU-Y.1731 | |
DLDP | |
LACP | |
E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series) | |
MPLS features | MPLS L3VPN |
MPLS L2VPN(VPWS/VPLS) | |
MPLS-TE | |
MPLS QoS | |
Notes: supported by S5710-EI, S5700-HI and S5710-HI | |
IP routing | Static routing |
RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series) | |
IPv6 features | Neighbor Discovery (ND) |
Path MTU (PMTU) | |
IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
MLD v1/v2 snooping | |
6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
Multicast forwarding in a VLAN and multicast replication between VLANs | |
Multicast load balancing among member ports of a trunk | |
Controllable multicast | |
Port-based multicast traffic statistics | |
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series) | |
QoS/ACL | Rate limiting on packets sent and received by an interface |
Packet redirection | |
Port-based traffic policing and two-rate three-color CAR | |
Eight queues on each port | |
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
WRED (supported by the S5710-EI and S5700-HI) | |
Re-marking of the 802.1p priority and DSCP priority | |
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID |
|
Rate limiting in each queue and traffic shaping on ports | |
Security | User privilege management and password protection |
DoS attack defense, ARP attack defense, and ICMP attack defense | |
Binding of the IP address, MAC address, interface, and VLAN | |
Port isolation, port security, and sticky MAC | |
MFF | |
Blackhole MAC address entries | |
Limit on the number of learned MAC addresses | |
802.1x authentication and limit on the number of users on an interface | |
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
SSH v2.0 | |
Hypertext Transfer Protocol Secure (HTTPS) | |
CPU defense | |
Blacklist and whitelist | |
Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
Management and maintenance | Virtual cable test |
Port mirroring and RSPAN (remote port mirroring) | |
Remote configuration and maintenance using Telnet | |
SNMP v1/v2c/v3 | |
RMON | |
Web NMS | |
HGMP | |
System logs and alarms of different levels | |
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) | |
Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) | |
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) | |
sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series) | |
Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
Supports LNP (Similar to DTP) | |
Supports VCMP (Similar to VTP) | |
Operating environment | Operating temperature: 0℃–50℃ |
Relative humidity: 10%–90% (non-condensing) | |
Input voltage |
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
the comparison of Huawei S5720-52X-PWR-SI-AC and S5720-28X-PWR-SI-AC switches.
Models | S5720-52X-PWR-SI-AC | S5720-28X-PWR-SI-AC |
Downlink Ports | 48 x Ethernet 10/100/1,000 PoE+ ports | 24 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP |
Uplink Ports | 4 x 10 Gig SFP+ | 4 x 10 Gig SFP+ |
Power Supply | AC Power Supply | AC Power Supply |
PoE | Supported | Supported |
