Product Details:
|
| Name: | S2700-26TP-PWR-EI 02352336 Huawei Quidway S2700 Switch | Model: | S2700-26TP-PWR-EI |
|---|---|---|---|
| Downlink Ports: | 24 Ethernet 10/100 Ports | Uplink Ports: | 2 Dual-purpose 10/100/1,000 Or SFP |
| PoE: | Supported | Forwarding Performance: | 6.6 Mpps |
| Switching Capacity: | 32 Gbit/s | Power: | AC Power Supply |
| Heat Dissipation: | Pluggable Fan Modules For Forced Air Cooling | Dimensions: | (W X D X H) 44.2 Cm X 42 Cm X 4.36 Cm |
| Weight: | ≤ 8 Kg (17.64 Lb) | ||
| High Light: | Huawei Quidway S2700 Switch,Ethernet Huawei Quidway S2700,AC Power Huawei Switch Network Device |
||

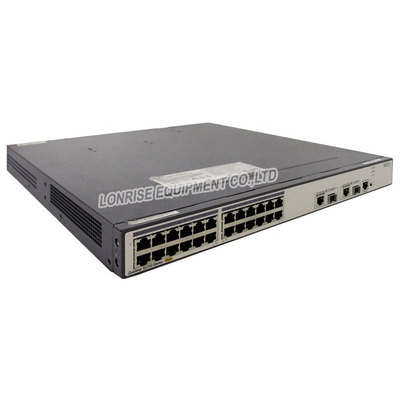

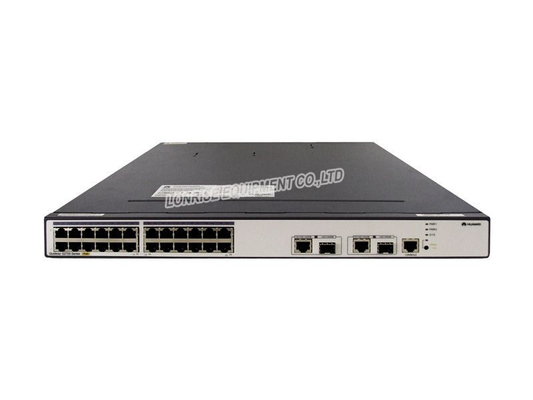

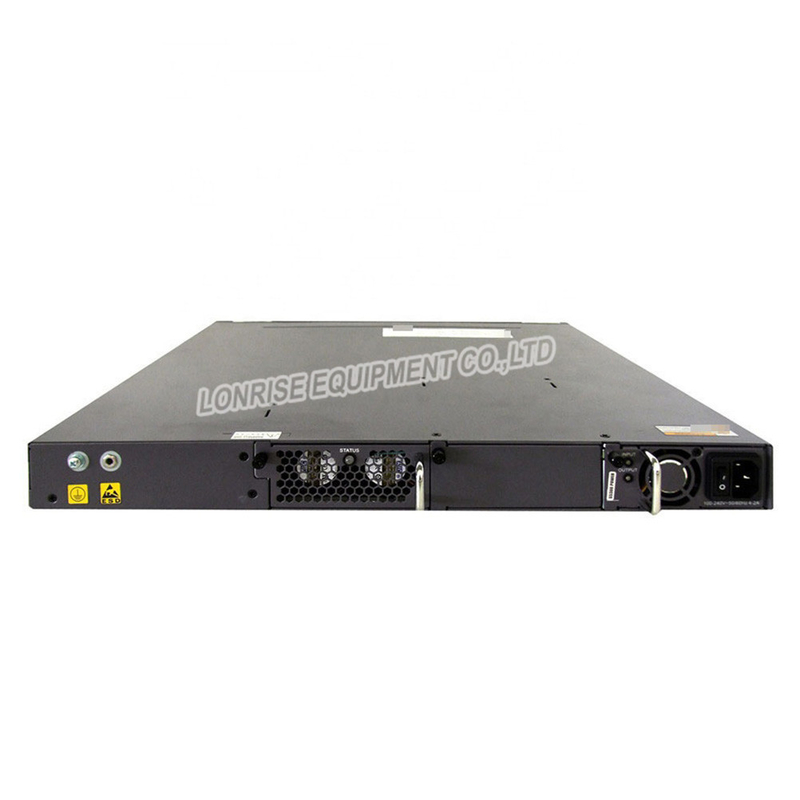

S2700 - 26TP - PWR - EI 02352336 Huawei Quidway S2700 Switch
HUAWEI S2700-26TP-PWR-EI is the new generation layer 2 intelligence switch and it comes with 24 POE+ Fast Ethernet ports to support up to 30W per port..
S2700-26TP-PWR-EI Specification |
|
| Downlink ports | 24 × 10/100Base-TX Ethernet ports |
| Uplink ports | 2 dual-purpose 10/100/1000 or SFP |
| MAC address | 8K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable Blackhole MAC address entries MAC address learning control which based on ports |
| VLAN feature | 4K VLANs, complying with IEEE 802.1Q Port-based VLAN assignment |
| MAC address-based assignment Port-based QinQ |
|
| QoS | Port-based rate limiting and flow-based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms |
| N/A | |
| IPv6 feature | IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping. |
| Multicast | MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets |
| Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance |
| Traffic sampling | N/A |
| Security & access features | 802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard |
| Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Suppression of multicast, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense |
|
| Surge protection | Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.) |
| Management | Stack Auto-Config CLI-based configuration Remote configuration using Telnet SNMP V1/V2/V3 Remote network monitoring SSHv2 Web-based device management |
| Operating environment | Long-term operating temperature: –5°C to + 50°C Relative humidity: 10% to 90% (non-condensing) |
| Power |
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V DC Maximum voltage range: –36 V to –72 V, DC Note: PoE models do not use DC power supplies. |
| Dimensions (W x D x H) | 442 × 420 × 43.6 mm |
| Weight | S2700-26TP-PWR-EI < 4 kg (without power supply) |
| Power consumption | S2700-26TP-PWR-EI < 808W (PoE: 740 W) |
| Models | S2700-26TP-SI-AC | S2700-26TP-EI-AC | S2700-26TP-EI-DC | S2700-26TP-PWR-EI |
| Downlink Ports | 24 Ethernet 10/100 ports | 24 Ethernet 10/100 ports | 24 Ethernet 10/100 ports | 24 Ethernet 10/100 ports |
| Uplink Ports | 2 dual-purpose 10/100/1,000 or SFP | 2 dual-purpose 10/100/1,000 or SFP | 2 dual-purpose 10/100/1,000 or SFP | 2 dual-purpose 10/100/1,000 or SFP |
| Power Supply | AC | AC | DC | AC |
| PoE Support | N/A | N/A | N/A | PoE |
