Product Details:
|
| Model: | S2700-26TP-SI-AC | Detail: | S2700-26TP-SI-AC Mainframe(24 Ethernet 10/100 Ports, 2 Dual-purpose 10/100/1000 Or SFP, AC 110/220V) |
|---|---|---|---|
| Name: | Huawei S2700 - 26TP - SI - AC Optical Multiplexing Port Two - Layer Network Management Switch | Communication Mode: | Full-Duplex & Half-Duplex |
| Operating Temperature: | 0℃~45℃ | RAM: | 128M |
| Function: | LACP, POE, QoS, SNMP | Switch Capacity: | 176Gbps |
| Power Supply: | 100V-240V AC, 50~60Hz | Uplink Port: | 4 Gig SFP |
| Humidity: | 5%-95% | ||
| High Light: | Optical Multiplexing Port Network Management Switch,Huawei Network Management Switch,SFP Two Layer Huawei Network Switches |
||

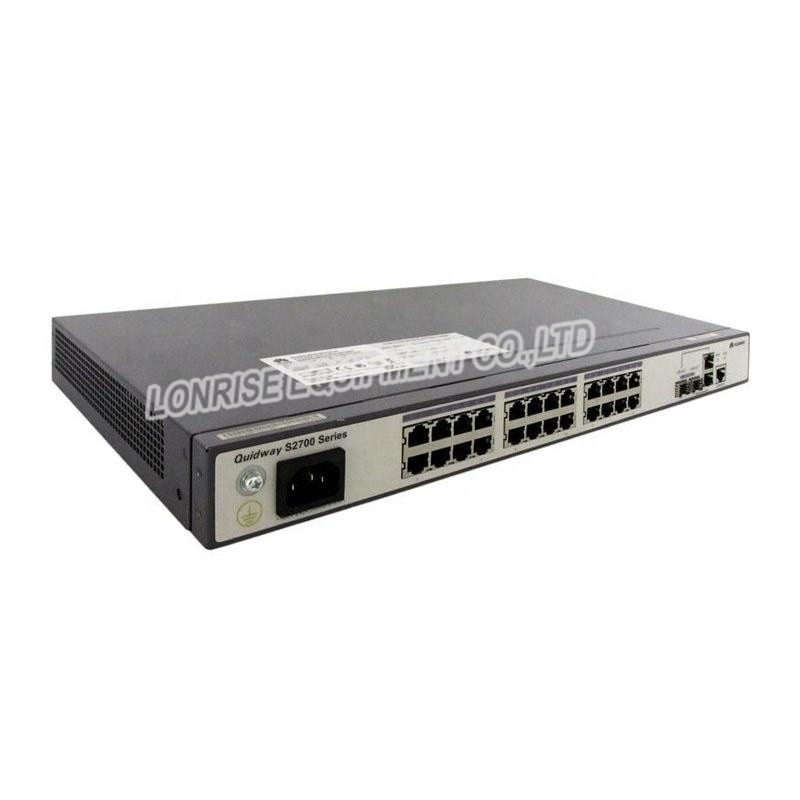

Huawei S2700 - 26TP - SI - AC optical multiplexing port two - layer network management switch
Huawei S2700-26TP-SI-AC is a switch that supports 24 Ethernet 10/100 ports and 2 dual-purpose 10/100/1,000 or SFP ports. It’s one of the S2700 Series Enterprise Switches that deliver 100 Mbit/s access switches for enterprise campus networks.
S2700-26TP-SI-AC Specification |
|
| Product Description | Huawei Quidway S2700-26TP-SI-AC - switch - 24 ports - Managed - desktop |
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Desktop |
| Interfaces | Gigabit Ethernet |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
| Performance | Forwarding performance : 6.6 Mpps |
| Capacity | Virtual interfaces (VLANs) : 4000 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Features | VLAN support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.2 cm x 22 cm x 4.4 cm |
| Weight | 2.4 kg |
| Extended Specification | |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Virtual interfaces (VLANs) : 4000 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p |
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Desktop |
| Features | VLAN support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression |
| Interfaces | Gigabit Ethernet |
| MAC Address Table Size | 8K entries |
| Performance | Forwarding performance : 6.6 Mpps |
| Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing |
| Subtype | Gigabit Ethernet |
| Dimensions (W x D x H) | 44.2 cm × 22 cm × 4.4 cm |
| Weight | 2.4 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 24 x 100Base-TX - RJ-45 ¦ 1 x console - RJ-45 - management ¦ 2 x SFP (mini-GBIC) |
| Power | |
| Power Consumption Operational | 15.5 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Product Code | S2700-26TP-SI-AC |
| Downlink Ports | 24 Ethernet 10/100 ports |
| Uplink Ports | 2 dual-purpose 10/100/1,000 or SFP ports |
| MAC Address | 8K MAC address entries |
| Forwarding Performance | 6.6 Mpps |
| Switching Capacity | 32 Gbit/s |
| Power | AC 120/220 V ( 50/60 Hz ) |
| Heat Dissipation | Fan-free natural heat dissipation |
| Dimensions (W x D x H) | 44.2 cm × 22 cm × 4.4 cm |
| Weight | 3.6 Kg |

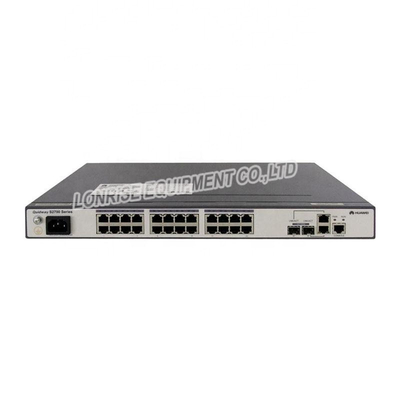

front panel of Huawei S2700-26TP-SI-AC switch.
Note:
| ① | Ground Screw | ④ | Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ② | AC socket | ⑤ | One console port |
| ③ | 24 10/100BASE-TX Ethernet Electrical Ports |
recommended optical transceivers.
| Model | Description |
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
the comparison of Huawei S2700-26TP-SI-AC and S2700-26TP-EI-AC switches.
| Models | S2700-26TP-SI-AC | S2700-26TP-EI-AC |
| Downlink Ports | 24 Ethernet 10/100 ports | 24 Ethernet 10/100 ports |
| Uplink Ports | 2 dual-purpose 10/100/1,000 or SFP | 2 dual-purpose 10/100/1,000 or SFP |
| Power Supply | AC | AC |
| Version | Standard | Enhanced |
