Product Details:
|
| Transmission Rate: | 10/100/1000Mbps | Communication Mode: | Full-Duplex & Half-Duplex |
|---|---|---|---|
| Product: | Assembly Components-CE6800-CE6856-HI-F-B0A-CE6856-48S6Q-HI Switch (48*10 Gigabit SFP+, 6*40G QSFP+, 2*AC Power Supply, Port Side Air Outlet) | Ports: | ≥ 48 |
| Function: | LACP, QoS, SNMP, VLAN Support | Switch Capacity: | 1.44Tbit/s |
| Forwarding Capacity: | 1080 Mpps | Condition: | Brand New |
| High Light: | Half Duplex HI Switch,Huawei HI Switch CE6856,CE6800 Huawei Network Switches |
||

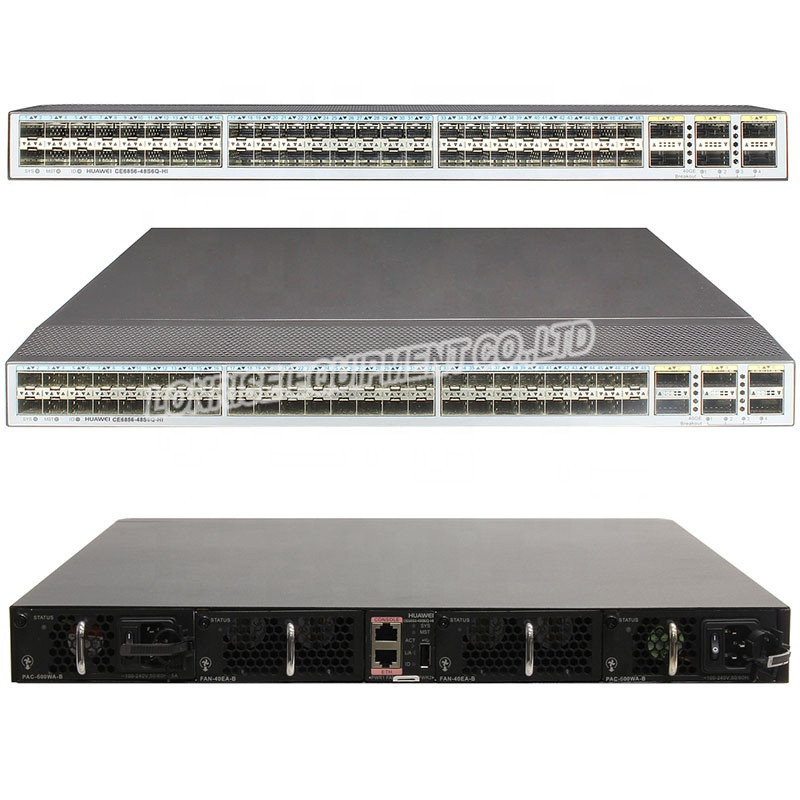

Huawei Assembly components CE6800 - CE6856 - HI - F - B0A - CE6856 - 48S6Q - HI switch
CloudEngine 6800 is well suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
CE6856-HI-F-B0A Specification |
||
| Item | Description | |
| Physical specifications |
|
|
| Environment parameters | Temperature |
NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
|
|
| Power specifications | Power source type | AC/DC |
| AC power input |
|
|
| DC power input |
|
|
| High-voltage DC power input | Not supported | |
| Rated input current |
|
|
| Chassis power consumption | Maximum power consumption | 216 W |
| Typical power consumption | 116 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 737 BTU/hr |
| Typical heat dissipation | 396 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Surge protection |
Power module:
|
|
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup |
1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode. |
|
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 48.83 years | |
| Mean time to repair (MTTR) | 1.73 hours | |
| Availability | 0.99999595166 | |
| Technical specifications | Processor | 1.2 GHz, quad-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 16 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
| Certification |
|
|
| Product Code | CE6856-HI-F-B0A |
| Processor | 1.2 GHz, quad-core |
| DRAM Memory | 4 GB |
| NOR Flash | 16 MB |
| NAND Flash | 1 GB |
| Mean time between failures (MTBF) | 48.83 years |
| Mean time to repair (MTTR) | 1.73 hours |
| Availability | 0.99999595166 |
| Hot swap | Supported by all power modules and fan modules |
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
