Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S

Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S
Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S

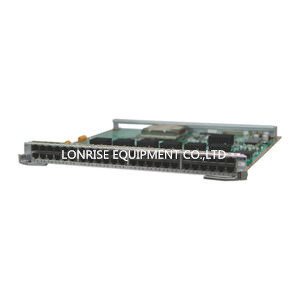

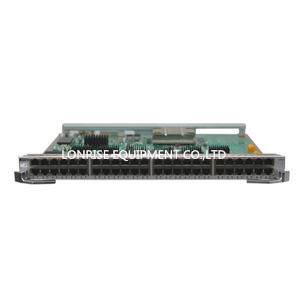

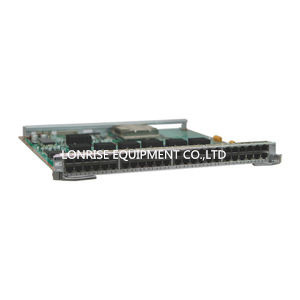

Large Image :  Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S

Product Details:
Place of Origin: CHINA
Brand Name: HUAWEI
Certification: CE
Model Number: ES1M2G48TX5S

Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S

Description
Type: Enterprise Switch BOM: 03033AGB
Model: ES1M2G48TX5S Dimensions: 35.1 Mm X 397.2 Mm X 430.4 Mm
Maximum Power Consumption: 66 W Weight: 3.27 Kg
Connector Type: IP Network Protocol: 2 GB
Frame Format: Ethernet_II, Ethernet_SAP, Ethernet_SNAP

Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S



The ES1M2G48TX5S provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.

The ES1M2G48TX5S can be installed in:

  • Slots 01 to 03 in an S7703 or S7703 PoE chassis.
  • Slots 01 to 06 in an S7706 or S7706 PoE chassis.
  • Slots 01 to 12 in an S7712 chassis.



Card Name
S7700 Chassis
ES1M2G48TX5S
S7703 chassis: supported in V200R013C00SPC500, V200R013C01, and later versions (must be used together with ES1D2MCUD000 in
versions earlier than V200R019C00SPC500)
S7703 PoE chassis: supported in V200R013C00SPC500 and later versions (must be used together with ES1D2MCUD000 in versions earlier
than V200R019C00SPC500)
S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00SPC500 and later versions
Function
Description
Basic functions
Provides forty-eight GE electrical ports for data access and line-rate switching.
Forwarding speed
48 Gbit/s
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.


Hot swapping
The ES1M2G48TX5S is hot swappable.


tem
Description


Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)


Weight: 3.27 kg (7.21 lb)


Maximum power consumption: 66 W


Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)


Operating relative humidity: 5% RH to 95% RH (noncondensing)


Storage temperature: -40°C to +70°C (-40°F to +158°F)


Storage relative humidity: 5% RH to 95% RH (noncondensing)




Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S 0

Huawei S7700 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45) 03033AGB ES1M2G48TX5S 1
