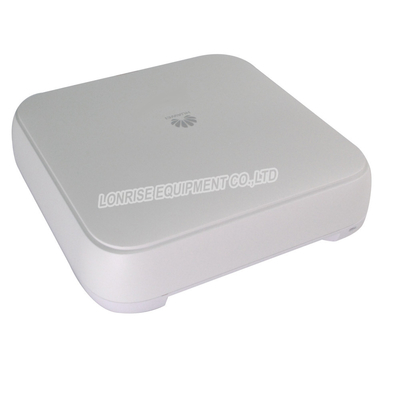

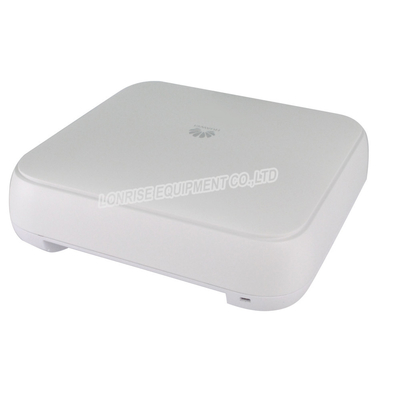

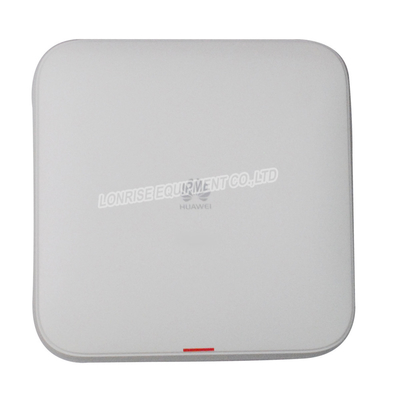

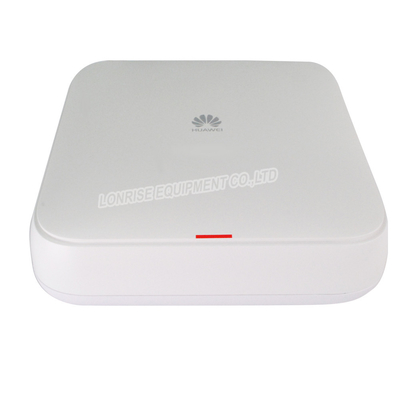

Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna

Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna
Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna

Large Image :  Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: AP7052DE

Huawei AP7052DE Mainframe Access Point 11ac Wave2 Indoor 4X4 Dual Band Smart Antenna

Description
Model Number: AP7052DE Name: Huawei AP7052DE Mainframe 11ac Wave2 Indoor 4X4 Dual - Band Built-in Smart Antenna
Operating Temperature: -10°C To 50°C Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2
Dimensions (H X W X D): 74 Mm X 220 Mm X 220 Mm Maximum Power Consumption: DC/802.3bt Power Supply: 35.7W
Antenna Type: Built-in Smart Antennas Maximum Number Of Users: ≤ 512
MIMO: Spatial Streams: 4 X 4:4 Highest Rate: 2.53 Gbit/s
Port: Shanghai
High Light:

Huawei AP7052DE Outdoor Access Point

,

Dual Band Huawei Wifi Ap

,

Smart Antenna Huawei Outdoor Access Point

Huawei AP7052DE Mainframe 11ac Wave2 Indoor 4X4 Dual - Band Built-in Smart Antenna

Huawei AP7052DE is the latest-generation technology-leading 802.11ac Wave 2 wireless access point (AP) that supports 4x4 MIMO and four spatial streams and can provide a rate of up to 2.53 Gbit/s. The AP has built-in smart antennas and supports smooth evolution from 802.11n to 802.11ac. It meets the bandwidth requirements of large-bandwidth services such as High Definition (HD) video streams, multimedia, and desktop cloud services, delivering smooth and high-quality wireless services to enterprise users. With industry-leading capabilities in terms of signal coverage, access density, and operation stability, the AP provides high-quality mobile cloud access services to help customers build the optimal wireless network. As an 802.11ac Wave 2 AP that uses smart antenna technology, the AP7052DE is more intelligent, secure, and easier to use. The AP7052DE delivers industry-leading performance in a rugged, attractive enclosure and is ideal for indoor coverage scenarios, such as enterprise office and education scenarios.

AP7052DE Specification

Dimensions (H x W x D) 74.5 mm x 220 mm x 220 mm
Weight 1.75 kg

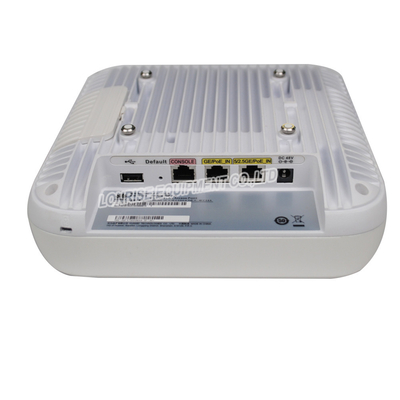

Interface type



1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface

Built-in Bluetooth BLE4.1
LED indicator Indicates the power-on, startup, running, alarm, and fault status of the system.
Power input

DC: 42.5 V to 57 V

PoE power supply: in compliance with IEEE 802.3at/bt; dual PoE power supply.

Maximum power consumption



DC/802.3bt power supply: 35.7 W (Excluding the output power of the USB port)

802.3at power supply: 25.5 W (The USB function and the 5 Gbit/s mode of network ports are unavailable.)

NOTE

The actual maximum power consumption depends on local laws and regulations.

In 802.3at power supply mode, radio power is managed in self-adaptive mode.

Operating temperature 10°C to +50°C
Storage temperature 40°C to +70°C
Operating humidity 5% to 95% (non-condensing)
Dustproof and waterproof grade IP41
Altitude 60 m to +5000 m
Atmospheric pressure 53 kPa to 106 kPa
Antenna type Built-in smart antennas
Antenna gain

2.4G: 3 dBi

5G: 4 dBi

Maximum number of SSIDs for each radio 16

Maximum number of users



512

NOTE

The actual number of users varies according to the environment.

Maximum transmit power



2.4G: 29 dBm (combined power)

5G: 28 dBm (combined power)

NOTE

The actual transmit power depends on local laws and regulations.

Power increment 1 dBm

Receiver sensitivity



2.4 GHz 802.11b : 104 dBm @ 1 Mbit/s; 93 dBm@ 11 Mbit/s

2.4 GHz 802.11g: -95 dBm @ 6 Mbit/s; -76 dBm @ 54 Mbit/s

2.4 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31

2.4 GHz 802.11n(HT40): -92 dBm @ MCS0; -73 dBm @ MCS31

5 GHz 802.11a : -95 dBm @ 6 Mbit/s; -76 dBm @ 54 Mbit/s

5 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31

5 GHz 802.11n (HT40): -92 dBm @ MCS0; -74 dBm @ MCS31

5 GHz 802.11ac (VHT20): -94 dBm @ MCS0NSS1; -72 dBm @ MCS8NSS4

5 GHz 802.11ac (VHT40): -92 dBm @ MCS0NSS1; -68 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT80): -89 dBm @ MCS0NSS1; -64 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT160): -86 dBm @ MCS0NSS1; -63 dBm @ MCS9NSS2

Safety standards

UL 60950-1

CAN/CSA 22.2 No.60950-1

IEC 60950-1

EN 60950-1

GB 4943

Radio standards

ETSI EN 300 328

ETSI EN 301 893

RSS-210

AS/NZS 4268

EMC standards



EN 301 489-1

EN 301 489-17

ETSI EN 60601-1-2

YD/T 1312.2-2004

ITU k.20

GB 9254

GB 17625.1

AS/NZS CISPR22

EN 55022

EN 55024

CISPR 22

CISPR 24

IEC61000-4-6

IEC61000-4-2

IEEE standards



IEEE 802.11a/b/g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11h

IEEE 802.11d

IEEE 802.11e

IEEE 802.11k

IEEE 802.11u

IEEE 802.11v

IEEE 802.11w

IEEE 802.11r

Security standards



802.11i, Wi-Fi Protected Access 2(WPA2), WPA

802.1X

Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)

EAP Type(s)

EMF

CENELEC EN 62311

CENELEC EN 50385

OET65

RoHS Directive 2002/95/EC & 2011/65/EU
REACH Regulation 1907/2006/EC
WEEE Directive 2002/96/EC & 2012/19/EU



Product Code AP7052DE
Dimensions (H x W x D) 74.5 mm x 220 mm x 220 mm

Interface type



1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface

Built-in Bluetooth BLE4.1
Power input

DC: 42.5 V to 57 V

PoE power supply: in compliance with IEEE 802.3at/bt; dual PoE power supply.

Antenna gain

2.4G: 3 dBi

5G: 4 dBi

Maximum number of SSIDs for each radio 16

Maximum number of users



512

NOTE

The actual number of users varies according to the environment.



Product Code AP7052DE AP7052DN
Dimensions (H x W x D) 74.5 mm x 220 mm x 220 mm 52 mm x 220 mm x 220 mm

Interface type



1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface

1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface

IoT slot   One slot, supporting extension using ZigBee and RFID modules
Built-in Bluetooth BLE4.1 BLE4.1
Antenna type Built-in smart antennas built-in dual-band omnidirectional antennas
Antenna gain

2.4G: 3 dBi

5G: 4 dBi

2.4G / 5G (switchable): 2 dBi/ 2.8 dBi

5G (non-switchable): 2.8 dBi

Maximum number of SSIDs for each radio 16 16
Maximum number of users 512 512
