| Model Number: | AR6140H-S | Use: | Access Router |
|---|---|---|---|
| Type: | Wired | Warranty: | 1 Year |
| Max. LAN Data Rate: | 1000Mbps | Function: | Voip, QoS, VPN |
| Product Name: | 100% Original AR6140H-S NetEngine AR6000-S Series Router | Processor: | 16-core |
| High Light: | Multi WAN Huawei Router Switch,Electric Huawei Router Switch,All Gigabit Huawei Smart Network Switch |
||

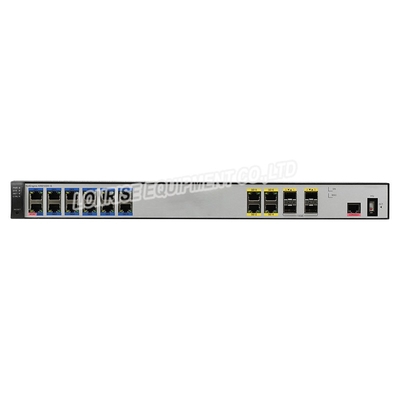

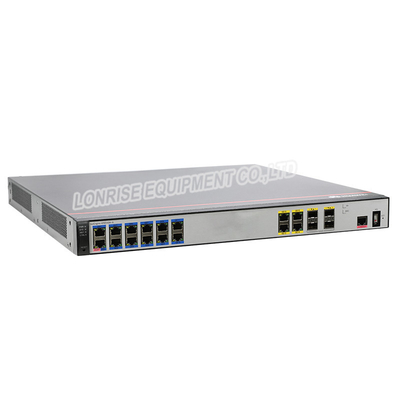

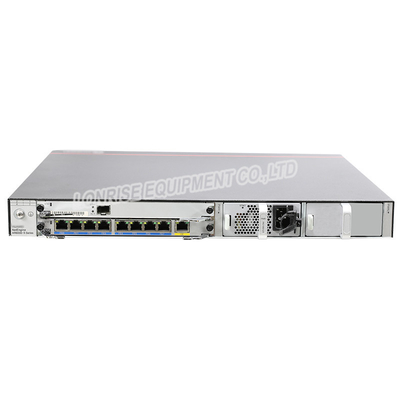

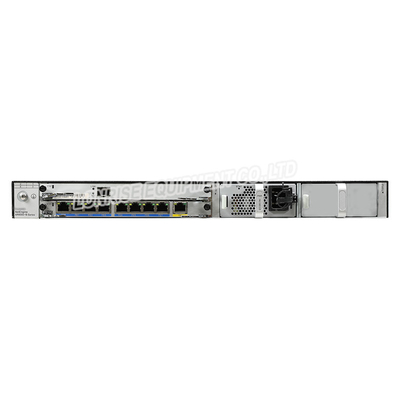

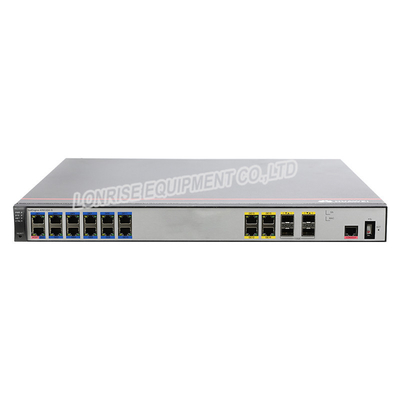

AR6140H-S 4GE Electric 12 Electric Multi-WAN Port All Gigabit Enterprise Router
With an innovative CPU + NP heterogeneous forwarding architecture, NetEngine AR6000 series routers deliver performance far beyond the industry average. Meanwhile, critical functions — including SD-WAN, cloud management, routing, switching, Virtual Private Network (VPN), security, voice, and Multiprotocol Label Switching (MPLS) — are integrated to fully support diversified and cloud-based services.
AR6140H-S Specification
AR6140H-S Specification |
|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 225 mm x 550 mm x 530 mm (8.89 in. x 21.65 in. x 20.87 in.) |
| CPU | 1.85 GHz, 16 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 60 W |
| Power supply mode | AC external |
| Number of power modules | 2 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Maximum output power [W] | 150 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
| Redundant power supply | Support double AC power supply (1 : 1 backup) |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.6 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
Quick Specs.
| Product Code | AR6140H-S |
| Description | Assembling Components, AR6140H-S, AR6140H-S, AR6140H-S, 4*GE WAN, 4*SFP+, 12*GE LAN, 1*USB2.0, 4*SIC |
| CPU | 1.85 GHz, 16 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 60 W |
| Power supply mode | AC external |
| Number of power modules | 2 |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
Features
Based on the innovative CPU+NP heterogeneous forwarding architecture, control and forwarding are separated, the single-slot bus bandwidth can reach up to 10Gbps, and there is no bottleneck in service forwarding
Support mobile mode (3G/LTE) and fixed mode (optical fiber access/copper cable access) to achieve integrated access to wired and wireless applications
Converge routing, switching, 3G/LTE, security and other functional features to achieve all-in-one services.
