| Model Number: | AC6005-8-8AP | Application: | WIFI AP |
|---|---|---|---|
| Type: | Wireless Controller | Switching Protocol: | Ethernet |
| Power Supply: | 1+1 AC Or 1+1 DC | Maximum Power Consumption: | 85W |
| Chipset: | 802.11 A/b/g/n/ac | Connectivity Technology: | Wired About AC6005-8-8AP |
| Radio Protocols: | 802.11 A/b/g/n/ac | Dimension: | 320 Mm*233.6 Mm*43.6 Mm |
| Weight: | 2.05kg | ||
| High Light: | 85W Huawei Wireless Controller,AC6005-8-8AP Huawei Wireless Controller,AP Huawei Access Controller |
||
Huawei AC6005 - 8 - 8AP AC6005 Wireless Controller Including AC6005 - 8
Huawei AC6005-8-8AP bundle includes 8 Gigabit Ethernet ports, 2 Combo ports (Rj-45 or SFP), 8 AP licenses. The Huawei AC6005 series access controller is ideally design for small to medium size enterprise to provide wired and wireless services for office network. Moreover, Huawei AC6005 wireless access controller delivers 4Gbit/s forwarding capacity, supports up to 128 access points, up to 2048 access users, and easily scales as needed. It also provides most cost-efficient mobility solution and simplify mobility management.
AC6005-8-8AP Specification |
|
| Technical specifications |
*Dimensions (H x W x D):43.6 mm x 320 mm x 233.6 mm *Weight: 2.9 kg *Operating temperature: –5oC to 50oC *Storage temperature: –40oC to +70oC *Humidity: 5% to 95% *Input voltage: 100 V AC to 240 V AC; 50/60 Hz *Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz *Maximum power consumption: 163.6 W (device power consumption: 39.6 W, PoE: 124 W) |
| Interface type |
*8 x GE interfaces, among which the last two are multiplexed with two optical interfaces as combo interfaces *One RJ45 serial maintenance interface *One Mini USB serial maintenance interface |
| LED indicator |
*Power module indicator (PWR): indicates the power-on status of the device. *System running status indicator (SYS): indicates the running status of the device. *Service network port indicator: indicates the data transmission status, interface rate, and PoEstatus of a network port. |
| Number of managed APs | 256 |
| Number of SSIDs | 16K |
| Number of APs controlled by each license | 1, 8, 32 |
| Number of access users | Entire device: 2K |
| User group management |
The AC supports 128 user groups: *Each user group can reference a maximum of 8 A CLs. *Each user group can associate with a maximum of 128 A CL rules. |
| Number of MAC addresses | 4K |
| Number of VLANs | 4K |
| Number of ARP entries | 4K |
| Number of routing entries | 8K |
| Number of multicast forwarding entries | 2K |
| Number of DHCP IP address pools | 64 IP address pools, each containing a maximum of 8K IP addresses |

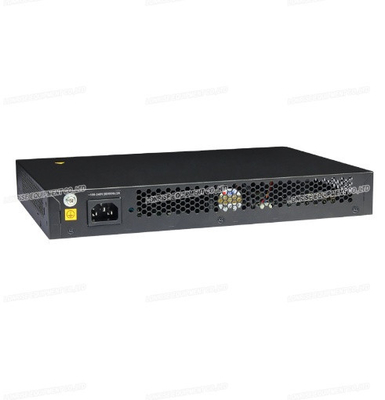

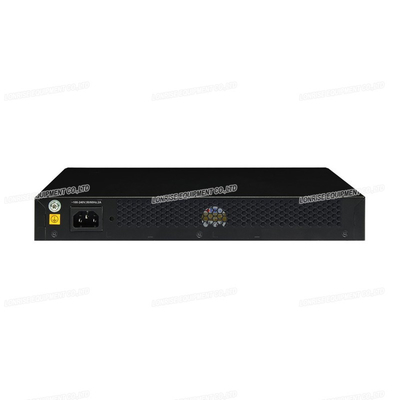

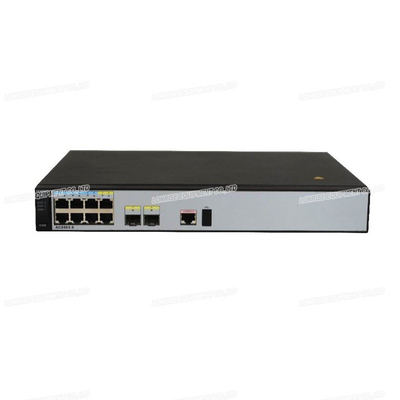

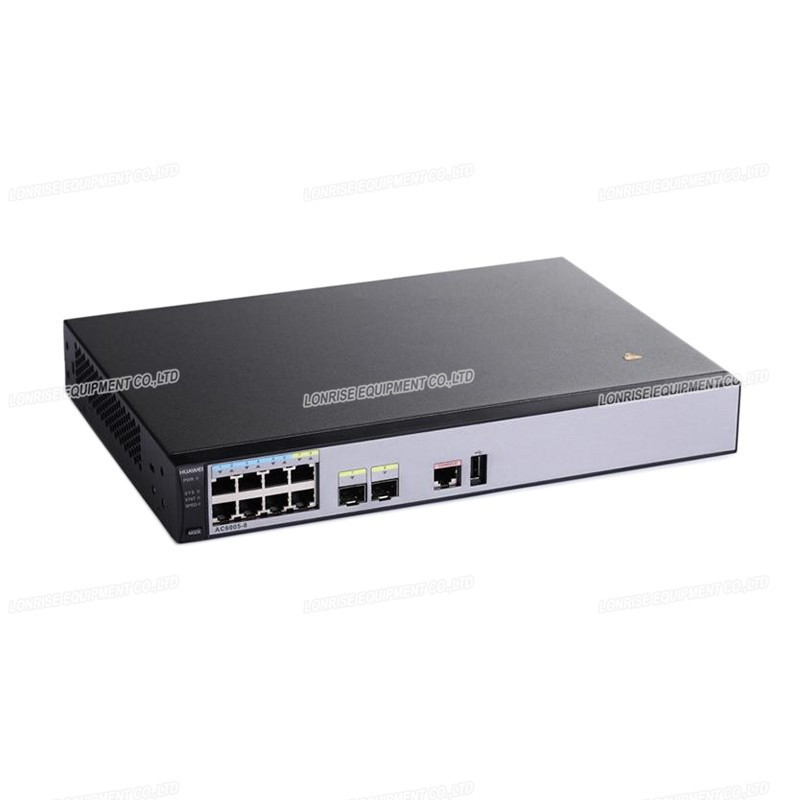

the appearance of AC6005-8-8AP.
the Quick Specs.
| Product Code | AC6005-8-8AP |
| Ports | 6 x GE + 2 x GE Combo |
| Power Supply | AC |
| Forwarding Capability | 4 Gbit/s |
| Maximum Number of Managed APs | 256 |
| Maximum Number of Access Users | 2K |
| AP-AC Networking | Layer 2 or Layer 3 networking |
| Forwarding Modes |
Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
| AC Active/Standby Mode | 1+1 HSB or N+1 backup |
| Dimensions (W x D x H) | 320 mm x 233.6 mm x 43.6 mm |
| Net Weight | 2.05 kg |
the LEDs Area description.
| Indicator/Button | Status | Description |
| Power Supply Indicator: PWR | Off | Power supply not on |
| Steady green | Power supply working properly | |
| System Status Indicator: SYS | Off | System not operating |
| Steady green |
Fast blinking: System starting Slow blinking: System running properly |
|
| Steady red | System cannot start normally or there is an overheat or fan alarm | |
| State Mode Indicator: STAT | Off | State mode not selected |
| Steady green |
Service port indicator works in default mode (STAT). In this mode, the indicator shows the port status |
|
| Speed Mode Indicator: SPED | Off | Speed mode not selected |
| Steady green |
Service port indicator shows port speed. After 45 seconds, service port indicator automatically returns to default mode (STAT) |
the recommended Optical Transceivers for AC6005-8-8AP.
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE,S ingle-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
the comparison of AC6005-8-8AP and AC6005-8-PWR-8AP.
| Models | AC6005-8-8AP | AC6005-8-PWR-8AP |
| PoE Available | No | Yes, it supports PoE power supply on six ports. |
| Ports | 6 x GE + 2 x GE Combo | 6 x GE + 2 x GE Combo |
| Power Supply | AC | AC |
| Forwarding Capability | 4 Gbit/s | 4 Gbit/s |
