Product Details:
|
| Model: | S7712 | Product Name: | S7700 Series Smart Gigabit Enterprise Routing POE Network Switch S7712 |
|---|---|---|---|
| Function: | LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, | Switch Capacity: | 4.64 Tbps, 4.64 Tbps |
| Dimensions (H X Wx D Mm): | 663.9,10U *442*517.4 | Chassis Weight: | 25kg |
| Transmission Rate: | 10/100/1000Mbps | Port Communication Mode: | Full-Duplex & Half-Duplex |
| Forwarding Performance: | 3480Mpps | MPU Slot: | 2 |
| Highlight: | LACP Huawei S7700 Series Switches,3480Mpps Huawei S7712 Switches,2 MPU S7700 Smart Routing Switch |
||

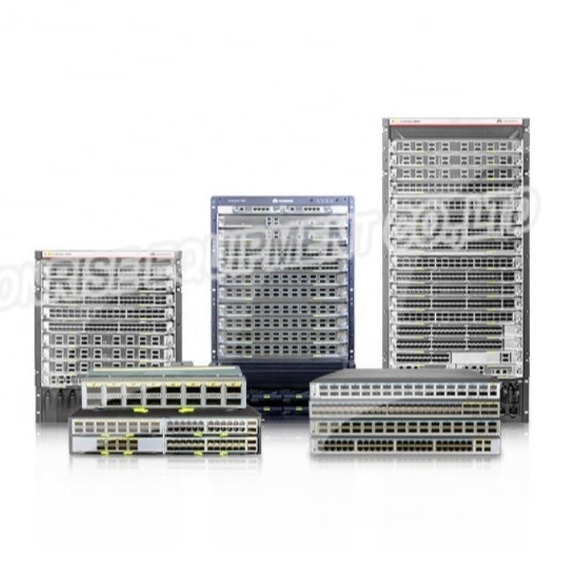

Huawei S7712 S7700 Series Switches original new stock for networking manufacturer
Appearance and Structure
The S7712 chassis is 15 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 585 mm.

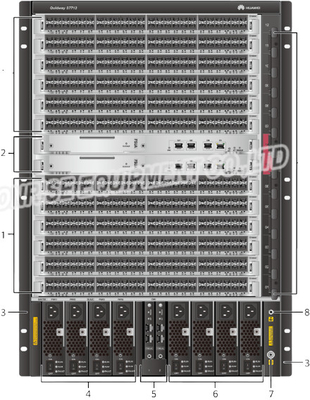

shows the front view of S7712 chassis structure.
|
1. Twelve of the following service cards can be installed:
|
2. Two MPUs |
3. A pair of mounting brackets NOTE:
The mounting brackets are used to secure the chassis in the cabinet. |
| 4. Four power modules | 5. Two EH1D200CMU00-Centralized Monitoring Unit |
6. Four PoE power modules
NOTE:
For details, see Power Module. |
|
7. Ground screw NOTE:
The ground screw is used to ground the chassis. |
8. Front ESD jack NOTE:
The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
9. Cable management frames NOTE:
Cable management frames are used to route cables. |

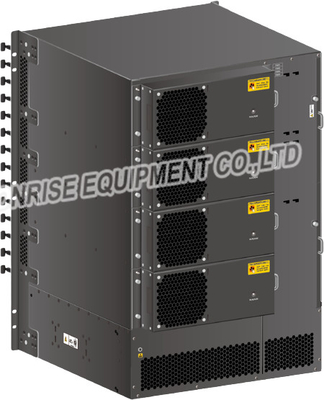

shows the rear view of S7712 chassis structure.
| 1. Four Fan Module |
2. Rear ESD jack NOTE:
The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
3. Air filter NOTE:
The air filter prevents dust from entering the chassis. |
|
4. A pair of removable handles NOTE:
You can install these handles on two sides of the chassis to lift the chassis. |
- | - |
Mapping between the S7712 chassis and software versions
|
Chassis |
Version |
|---|---|
| S7712 chassis | V100R003C01 and later versions |
| S7712 PoE chassis | V100R003C01 and later versions |
| S7712 chassis, FCC certified | V200R003C00 and later versions |
| S7712 PoE chassis, FCC certified | V200R003C00 and later versions |
S7712 chassis specifications
|
Item |
Description |
|---|---|
| LPU slots | 12 |
| MPU slots | 2 |
| Fan slots | 4 |
| System power supply slots | 4 |
| PoE power supply slots | 4 |
| Maximum port density |
|
| Installation | In an N66E or N68E cabinet, one cabinet for one chassis |
| CSS | CSS card or service port clustering |
| PoE |
|
|
Maximum power consumption (fully configured, no PoE power supply) NOTE:
The heat dissipation value of a chassis equals the current power consumption of the chassis. |
4200 W |
| Power specifications |
|
| Dimensions (H x W x D, without rack-mounting brackets) |
|
| Weight (empty/fully configured) | 25 kg/97 kg (55.1 lb/213.8 lb) |
| Reliability and availability |
NOTE:
The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product. |
| Environment specifications |
|
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification |
|
| Part number |
|
