Product Details:
|
| Model Number: | S12700E-8 | Product Name: | Huawei S12700E-8 CloudEngine S12700E Series Switches |
|---|---|---|---|
| Type: | Campus Switch | Operating Voltage DC: | -48V To -60V AC:90V To 290V |
| Switching Capacity: | 512Tbps | Buffer Capacity: | Up To 200 Ms Data Buffering Per Port |
| Redundancy Design:: | MPU, SFU, Power Module, And Fan Module | Weight(empty Chassis): | 42.5Kg |
| High Light: | S12700E Huawei Cloudengine Switches,Cloudengine S12700E Campus Switch,MPU Cloudengine S12700E |
||

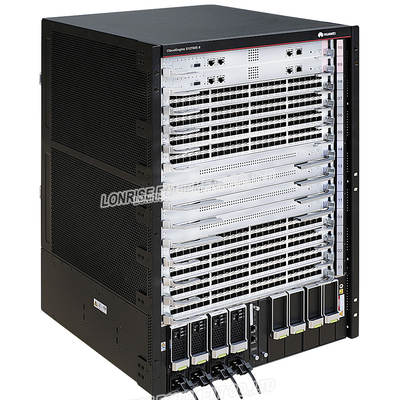

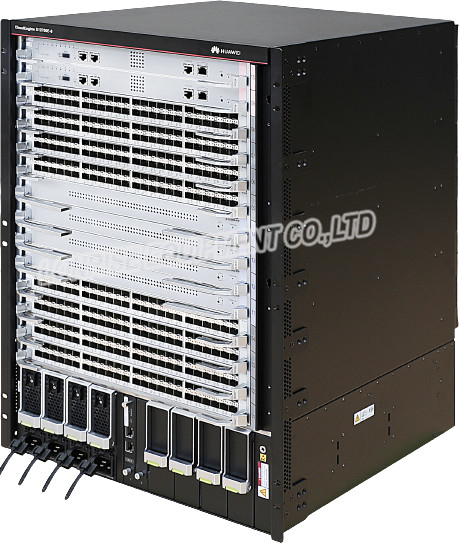

Huawei S12700E-8 CloudEngine S12700E Series Switches
Appearance and Structure
The S12700E-8 chassis is 15 U high (1 U = 44.45 mm). When the chassis has no cable management frames installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 585 mm.

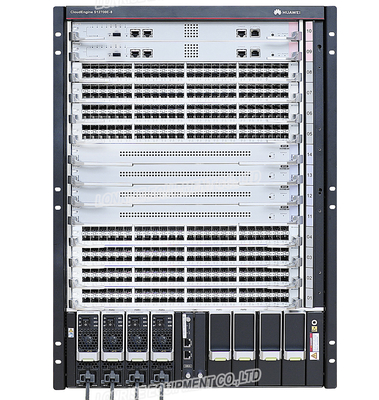

shows the front structure of the S12700E-8 chassis.
| 1. Two MPUs |
2. Eight of the following service cards can be installed:
NOTE:
The cards supported by a switch depend on the software version. For details, see Hardware Query Tool. |
3. Four SFUs |
4. A pair of mounting brackets NOTE:
The mounting brackets are used to secure the chassis in a cabinet. |
| 5. Six power modules | 6. Two CMUs |
7. Front ESD jack NOTE:
The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
8. Cable management frames NOTE:
The cable management frames separate cables on different cards and help route cables orderly. |
shows the rear structure of the S12700E-8 chassis.
S12700E-8 chassis structure (rear view)
| 1. Four Fan Module |
2. Rear ESD jack NOTE:
The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
3. JG ground terminal NOTE:
The two-hole OT terminal of a ground cable can be connected to the screws to ground the chassis. |
4. Air filter NOTE:
The air filter prevents dust from entering the chassis. |
|
5. A pair of removable handles NOTE:
You can install these handles on two sides of the chassis to lift the chassis. |
- | - | - |
Specifications of the S12700E-8 series switches
|
Item |
Description |
|---|---|
| Number of LPU slots | 8 |
| Number of MPU slots | 2 |
| Number of SFU slots | 4 |
| Number of fan slots | 4 |
| Number of power module slots | 6 |
| Number of CMU slots | 2 |
| Port density per chassis | 384xFE, 384xGE, 384x10GE, 320x25GE, 192x40GE, 192x100GE |
| Installation | The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis. |
| Cluster switch system (CSS) | Service port clustering |
|
Maximum power consumption (fully configured) NOTE:
The heat dissipation value of a chassis is equal to the current power consumption. |
6950 W |
| Power specifications |
|
| Dimensions (H x W x D, without rack-mounting brackets) |
|
| Weight (empty/fully configured) | 42.5 kg/114 kg (93.7 lb/251.3 lb) |
| Reliability and availability |
NOTE:
The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product. |
| Environment specifications |
|
| Noise under normal temperature (sound power) | ≤ 78 dB(A) |
| Certification |
|
| Part number | 02115870 |
