Product Details:
|
| Model Number: | ES0D0G24SA00 | Weight: | 2.22 Kg (4.89 Lb) |
|---|---|---|---|
| Type: | Interface Card | Product Name: | ES0D0G24SA00-24-Port 100/1000BASE-X Interface Card (SA, SFP) |
| Applications: | Telecommunication | Maximum Power Consumption: | 45 W |
| Place Of Origin: | China | Dimensions (H X W X D): | 35.1 Mm X 397.2 Mm X 430.4 Mm |
| High Light: | 1000BASE-X Network Interface Card,ES0D0G24SA00 Interface Card,Huawei Nic Network Interface Card |
||

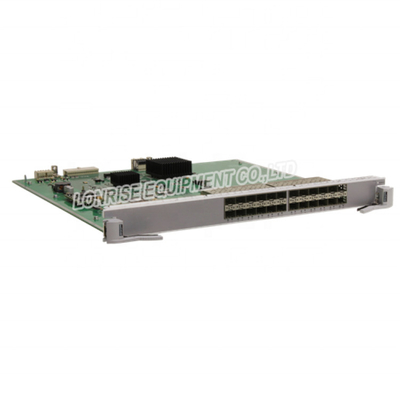

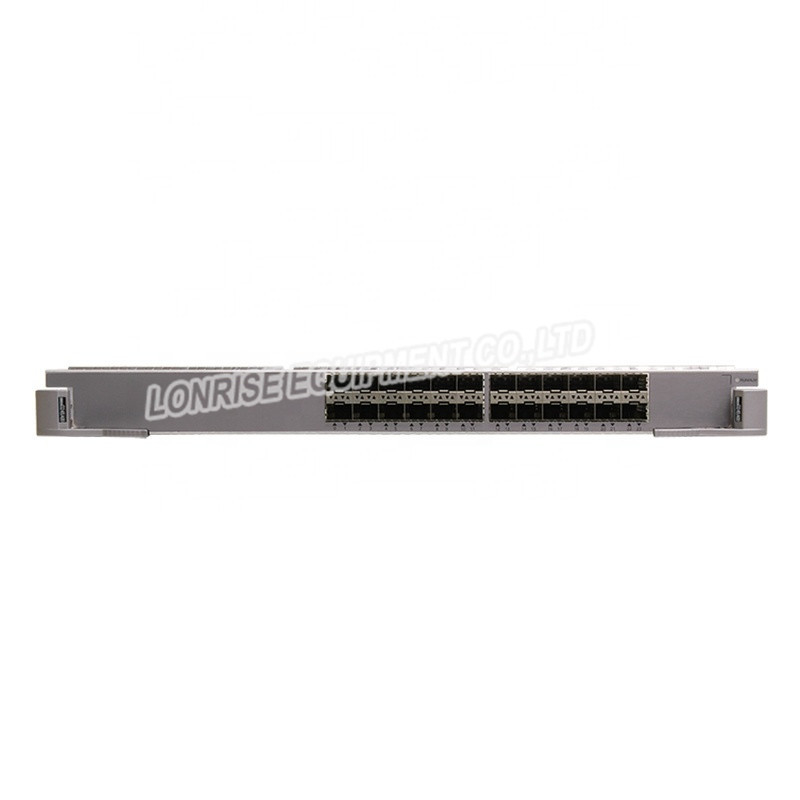

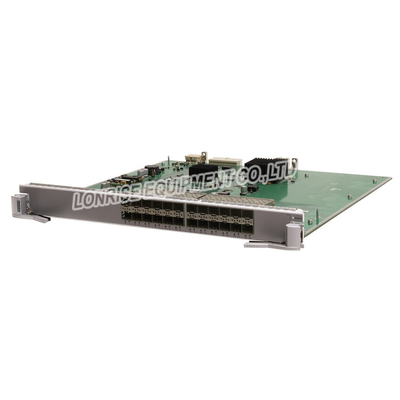

Huawei ES0D0G24SA00-24-Port 100/1000BASE-X Interface Card (SA, SFP)
Specifications of the ES0D0G24SA00
|
Item |
Description |
|---|---|
| Physical specifications |
|
Switch chassis and software versions matching the card
|
Card Name |
S7700 Chassis |
|---|---|
| ES0D0G24SA00 |
S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions |
Introduction
The ES0D0G24SA00 can be installed in:
|
Function |
Description |
|---|---|
| Basic function | Provides twenty-four GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The ES0D0G24SA00 is hot swappable. |
|
Number |
Indicator |
Color |
Description |
|---|---|---|---|
| 1 | ACT indicator of a lower optical port | Yellow | Blinking: The port is transmitting and receiving data. |
| 2 | ACT indicator of an upper optical port | ||
| 3 | LINK indicator of a lower optical port | Green | Steady on: A link has been established on the port. |
| 4 | LINK indicator of an upper optical port | ||
| 5 | RUN/ALM: running status indicator | Green |
Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting. |
| Red | Steady on: The card has failed and the fault requires manual intervention. | ||
| Yellow | Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
