Product Details:
|

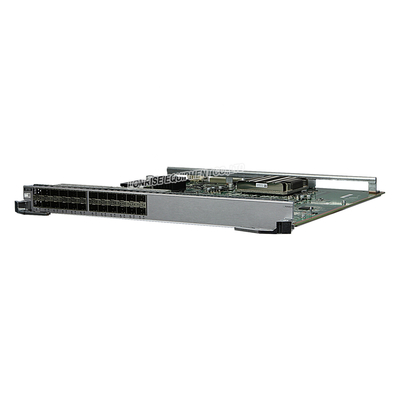

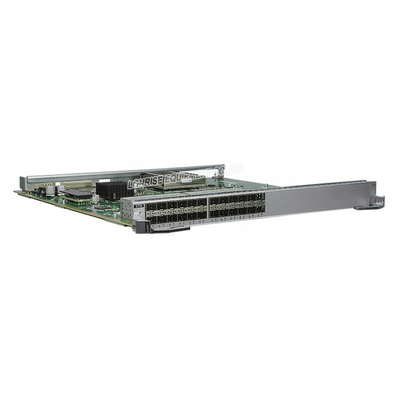

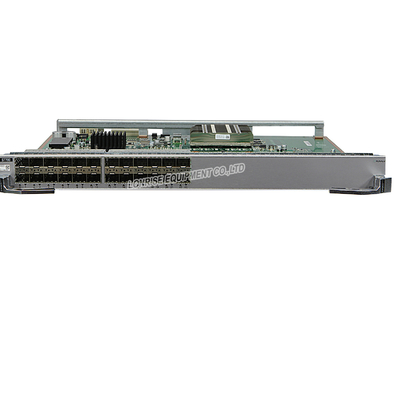

| Applications: | S7700 Interface Card ES1D2G24SX5E (X5E SFP) | Model Number: | ES1D2G24SX5E |
|---|---|---|---|
| Ports: | 24 | Operating Relative Humidity: | 5% RH To 95% RH (noncondensing) |
| Maximum Power Consumption: | 84 W | Dimensions (H X W X D): | 35.1 Mm *394.7 Mm *426.8 Mm |
| Communication Mode: | Full-Duplex & Half-Duple | Transmission Rate: | 10/100Mbps |
| Storage Temperature: | -40°C To +70°C (-40°F To +158°F) | Operating Temperature: | 0°C To 45°C (32°F To 113°F) |
| Weight: | 2.82 Kg (6.22 Lb) | Switch Capacity: | 96 |
| Function: | LACP | Private Mold: | No |
| Lead Time: | 2 Business Days | ||
| High Light: | X5E SFP Network Interface Card,1000BASE 24 Port Interface Card,Half Duplex Huawei Interface Card |
||
The ES1D2G24SX5E can be installed in:
|
Function |
Description |
|---|---|
| Basic functions | Provides twenty-four GE optical ports for data access and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The ES1D2G24SX5E is hot swappable. |
|
Number |
Indicator |
Color |
Description |
|---|---|---|---|
| 1 | ACT indicator of a lower optical port | Yellow | Blinking: The port is transmitting and receiving data. |
| 2 | ACT indicator of an upper optical port | ||
| 3 | LINK indicator of a lower optical port | Green | Steady on: A link has been established on the port. |
| 4 | LINK indicator of an upper optical port | ||
| 5 | RUN/ALM: running status indicator | Green |
Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting. |
| Red | Steady on: The card has failed and the fault requires manual intervention. | ||
| Yellow | Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
