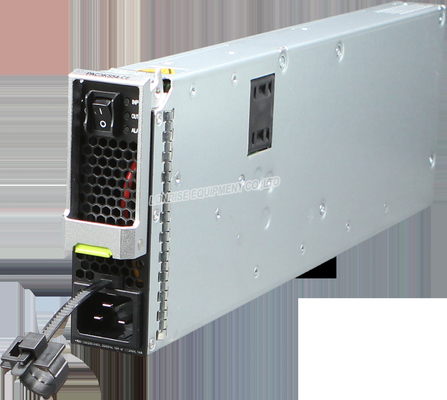

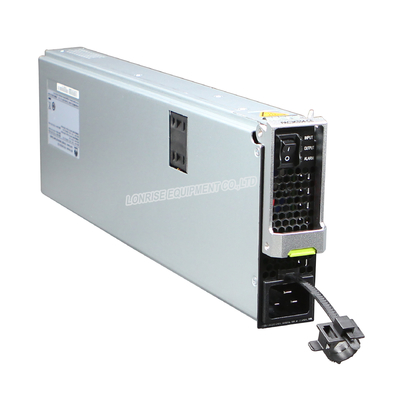

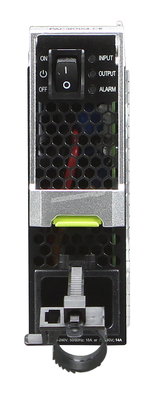

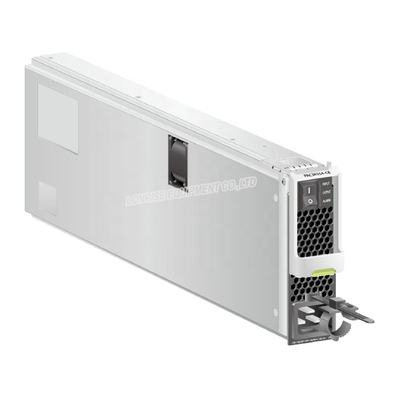

Product Details:
|
| Product: | PAC3KS54-CE 3000W AC Power Module (Black) For Ready Sell | Model Number: | PAC3KS54-CE |
|---|---|---|---|
| Function: | LACP | Switch Capacity: | 3000W |
| Dimensions (W X D X H): | 130 Mm X 41 Mm X 417.4 Mm | Maximum Input Current: | 16 A |
| Storage Temperature: | -40°C To +70°C | Products Status: | Stock |
| Transmission Rate: | 10/100Mbps | Communication Mode: | Full-Duplex |
| Weight: | < 3.0 Kg | Rated Input Voltage: | 220 V AC/110 V AC; 50/60 Hz |
| Maximum Input Voltage Range: | 14 A | Operating Temperature: | 0°C To 45°C |
| High Light: | 3000W AC Power Module,Full Duplex AC Power Module,Huawei High Voltage Power Module |
||
Mappings between PAC3KS54-CE and product models
| Product | Product Model | First Supported Version | Limitations |
|---|---|---|---|
| S7700 | S7703 | V200R013C02 | - |
| S7700 | S7703 PoE | V200R019C00 | - |
| S7700 | S7706 | V200R013C02 | - |
| S7700 | S7706 PoE | V200R019C00 | - |
| S7700 | S7712 | V200R013C02 | - |
Technical specifications of the PAC3KS54-CE
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 130 mm x 41 mm x 417.4 mm (5.1 in. x 1.6 in. x 16.4 in.) |
| Weight without packaging [kg(lb)] | < 3 kg |
| Number of inputs | 1 |
| Rated input voltage [V] |
220 V AC/110 V AC; 50/60 Hz 240 V DC |
| Input voltage range [V] |
90 V AC to 290 V AC; 47 Hz to 63 Hz 190 V DC to 290 V DC The maximum current of the power cable used by the 3000 W AC power module is 16 A. When the 220 V input is used, the minimum voltage cannot be lower than 200 V. When the 110 V input is used, the minimum voltage cannot be lower than 100 V. |
| Maximum input current [A] |
AC input: 16 A High-voltage DC input: 14 A |
| Rated output voltage [V] | 53.5 V DC |
| Rated output current [A] | 56.1 A (220 V AC input or 240 V DC)/28.1 A (110 V AC Input) |
| Rated output power [W] | 3000 W (220 V AC input or 240 V DC)/1500 W (110 V AC input) |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
Functions of a 3000 W AC power module
|
Function |
Description |
|
|---|---|---|
| Input protection | Input overvoltage protection | In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overvoltage, the power module can automatically start supplying power again. |
| Input undervoltage protection | In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again. | |
| Input overcurrent protection | In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced. | |
| Output protection | Output overvoltage protection |
In this protection state:
|
| Output overcurrent protection | In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again. | |
| Output short-circuit protection | In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again. | |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. | |
| Hot swapping | The power module is hot swappable. | |
