Product Details:
|
| Model Number: | 6ES7231-7PF22-0XA8 | Product Name: | Plc Manufacturers |
|---|---|---|---|
| Number Of Analog Inputs: | 4 | Width: | 71.2 Mm |
| Resolution With Overrange (bit Including Sign), Max.: | 16 Bit; Temperature 0.1 °C / 0.1 °F | Package Type: | ORIGINAL PLC PACKAGE |
| Shipping: | XDHL/UPS/TNT/FEDEX/ARAMEX | Power Loss, Typ.: | 1.8 W |
Siemens 6ES7231 - 7PF22 - 0XA8 SIMATIC S7 - 200 CN
SIMATIC S7-200 CN analog input EM 231, only for S7-22X CPU, 4 AI, +/-80 MV a. thermocouples Type J, K, S, T, R, E, N; 15 bit+sign this S7-200 CN product only has CE approval
|
|
||
What is Details of our PLC ?
Q series PLC
A Series Melsec Mitsubishi PLC
FX2N series PLC
FX3U series PLC
| CPU Units | Expansion Units and Expansion I/O Units | ||
| Control method | Stored program | 40 I/O points | 20 I/O points |
| I/O control method | Cyclic scan refreshing | 24 inputs | 12 inputs |
| Program language | Ladder diagram | 16 outputs | 8 outputs |
| Instructions | Approx. 500 | 2 inputs and 1 output | 8 inputs and 8 outputs |
| Program capacity | 10K/5K steps | K or J thermocouple inputs | Pt or JPt inputs |
| Ethernet Ports | Power Supply Units | ||
| Connector | RJ45 | Voltage | 100 to 240VAC |
| Data Rate | 10/100Base T | Operating voltage range | 85 to 264VAC |
| Protocols | Modbus TCP | Power holding time | 2 ms min. |
| CAN Port | Digital Outputs | ||
| Baud Rate | 125K bps | Output Type | FET |
| Length | <500 meters | Operating Frequency | 100 Hz |
| Protocols | Custom protocol | On-state Current, Max | 200mA |
| Analog Inputs | Pulse Inputs | ||
| Resolution | 16-bit | Voltage Range | 12V-24V DC |
| Input Range | 4~20mA | Off-state Voltage | 8V DC |
| Input Type | Single ended | Typical Input Current | 5mA 10VDC |
| Input Impedance | 170Ω | Input Frequency | 10KHz with filters off |

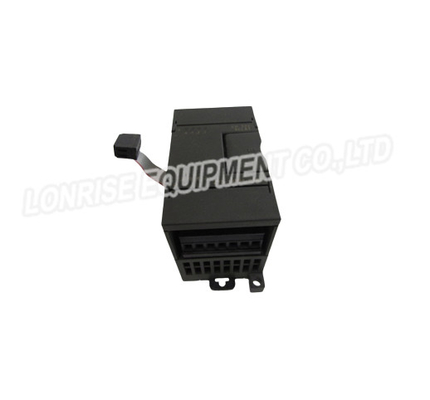

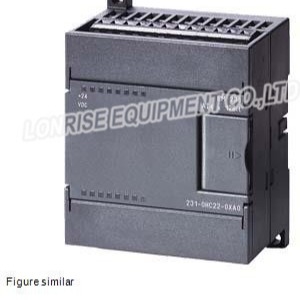

Appearance of 6ES7231-7PF22-0XA8
