| Model Number: | S5731-S24P4X | Description: | 24*10/100/1000BASE-T Ports 4*10GE SFP+ Ports |
|---|---|---|---|
| Product Part Number: | 02352SVD | Subtype: | 100 Gigabit Ethernet |
| Communication Mode: | Full-Duplex & Half-Duplex | Transmission Rate: | 10/100/1000Mbps |
| Device Type: | Switch - 24 Ports - Managed | ||
| High Light: | 24 Port Ethernet Huawei Network Switches,S5731-S24P4X Huawei Network Switches,Full Duplex Huawei Network Switches |
||
Huawei 24 Port Ethernet 4 10G SFP+ Standard Gigabit Access S5731-S24P4X Switch
Technical specifications
|
Item |
Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.21 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) |
|
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W |
| Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number |
02353AHX 02353AHX-001 02353AHX-002 |

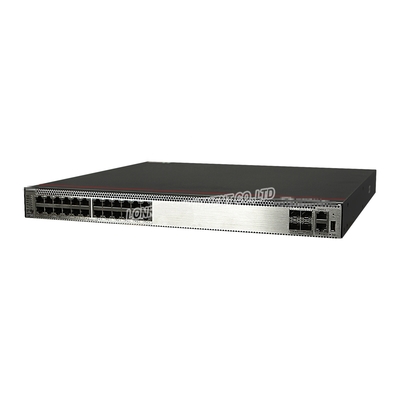

S5731-S24P4X (02353AHX-001 or 02353AHX-002) appearance
