| Model Number: | S5735-S24T4X, S5735-S24T4X | Mode: | Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex |
|---|---|---|---|
| Transmission Rate: | 96 Mpps, 96 Mpps | MAC Features: | IEEE 802.1d Compliance |
| Ports: | 24 | Switch Capacity: | 128 Gbit/s/336 Gbit/s |
| VLAN:: | 4,094 VLANs | IP Routing: | Static Route, RIPv1/v2, RIPng, OSPF |
| High Light: | Huawei 3 Core Management Switch,S5735-S24T4X Network Gigabit Switch,OSPF 24 Ports Network Gigabit Switch |
||
Huawei Layer 3 Core Management Switch S5735-S24T4X Network Gigabit Switch

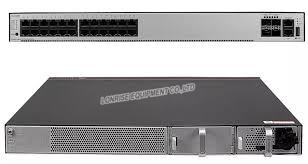

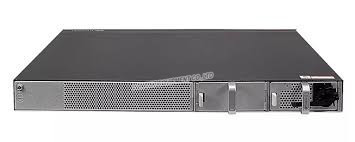

S5735-S24T4X appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 |
Four 10GE SFP+ ports Applicable modules and cables:
|
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 |
Ground screw NOTE:
It is used with a ground cable.
|
8 |
Power module slot 1 NOTE:
Applicable power module:
|
| 9 |
Power module slot 2 NOTE:
Applicable power module:
|
- | - |
|
Item |
Description |
|---|---|
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 69.42 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 7.21 kg (15.9 lb) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 46 W |
|
Typical power consumption (30% of traffic load)
|
31 W |
| Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Short-term operating temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 58.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 98010938 |
