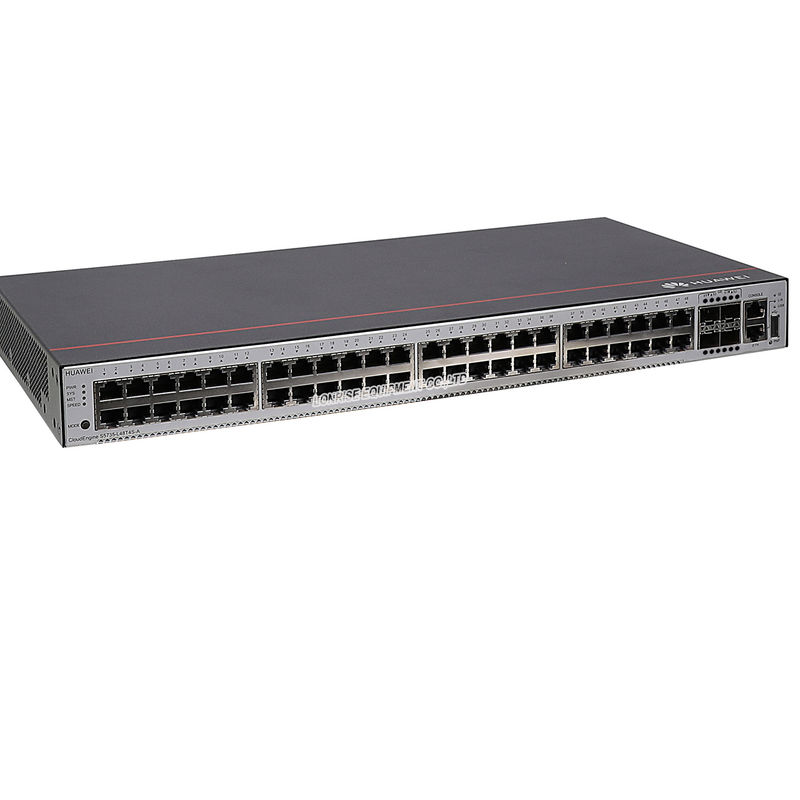

S5735S-L48FT4S-A Overview
S5735S-L24FT4S-A is the Huawei S5735-L switch with 24 × 10/100Base-Tx ports, 24 × 10/100/1000Base-T ports,4 × GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735S-L48FT4S-A |
| Fixed Ports |
24 × 10/100Base-Tx ports, 24 × 10/100/1000Base-T ports,4 × GE SFP ports |
| PoE+ |
Not Supported |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
ESFP-GE-SX-MM850
|
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735S-L48P4X-A |
S5735S-L48FT4S-A |
| Fixed Ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 × 10/100Base-Tx ports, 24 × 10/100/1000Base-T ports,4 × GE SFP ports |
| PoE+ |
Supported |
Not Supported |
S5735S-L48FT4S-A Specification
S5735S-L48FT4S-A Specification
|
| Memory (RAM) |
1 GB |
| Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) |
50.68 years |
| Mean time to repair (MTTR) |
2.37 hours |
| Availability |
> 0.99999 |
| Service port surge protection |
Common mode: ±7 kV |
| Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) |
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
- Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
|
| Stack ports |
Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
| RTC |
Not supported |
| RPS |
Not supported |
| PoE |
Not supported |
| Rated voltage range |
- AC input: 100 V AC to 240 V AC, 50/60 Hz
- High-Voltage DC input: 240 V DC
|
| Maximum voltage range |
- AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
- High-Voltage DC input: 190 V DC to 290 V DC
|
| Maximum power consumption (100% throughput, full speed of fans) |
44 W |
|
Typical power consumption (30% of traffic load)
- Tested according to ATIS standard
- EEE enabled
- No PoE power consumption
|
30 W |
| Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
|
| Short-term operating temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
- The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
- The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
- The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
|
| Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) |
< 53.3 dB(A) |
| Relative humidity |
5% to 95%, noncondensing |
| Operating altitude |
0-5000 m (0-16404 ft.) |
| Certification |
- EMC certification
- Safety certification
- Manufacturing certification
|
https://shuaiqicn.en.alibaba.com/
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4S-A |
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
| ① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
| ② |
Four 1000BASE-X ports |
⑤ |
One USB port |
| ③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
| ① |
Ground screw |
| ② |
Jack for AC power cable locking strap |
| ③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
| MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
| VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
| IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
