Product Details:
|
| Brand: | CISCO | CPU: | 4 CORE |
|---|---|---|---|
| System Memory: | 24GB | SSD Drive: | 128 GB |
| System Buffer: | 40G | Management Ports: | 2 Ports: 1 RJ-45 And 1 SFP+ |
| Power Supplies (up To 2): | 500W AC, 930W DC, Or 1200W HVAC/HVDC | RS-232 Serial Ports: | 1 |
| Highlight: | Cisco 1100 Series Integrated Services Routers,4 Core Integrated Services Routers,500W AC Integrated Services Routers |
||
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.

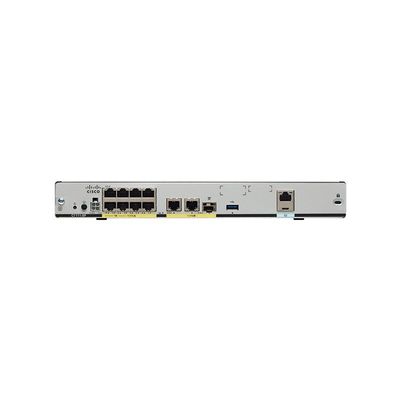

Figure 1 shows the appearance of C1111-8P.
Table 1 shows the quick spec.
| Model | C1111-8P |
| GE | 1 |
| GE/SFP combo | 1 |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | N/A |
| 802.11ac | N/A |
| GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Dimensions (H x W x D) |
1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
| Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
Note:
| ① | LAN | ⑦ | GE 0/0/0 - SFP |
| ② | CLEI Label | ⑧ | GE 0/0/0 - RJ45 |
| ③ | Serial Number | ⑨ | GE 0/0/1 |
| ④ | Kensington Lock Slot | ⑩ | 4-pin Power Connector |
| ⑤ | RJ45 / Micro USB Console | ⑪ | Power Switch |
| ⑥ | USB3.0 | ⑫ | Reset Button |
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | ●Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
| High performance to run concurrent services | ●High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
| High availability and business continuity |
● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security |
● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow |
| Unified control of wired and wireless networks from a common console for streamlined operations |
● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean |
● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069. |
|
Performance ● Throughput ● Service reliability |
● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
| Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
| Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints. |
