Product Details:
|
| Brand: | Cisco | Gigabit Ethernet Ports: | 48 |
|---|---|---|---|
| Uplink Interfaces: | 4 SFP+ | PoE+power Budget: | 370W |
| Condition: | New With 1Year Replacement Warranty | Shipment: | DHL,UPS,TNT, |
| DRAM: | 512 MB | Flash Memory: | 256 MB |
| Forwarding Bandwidth: | 88 Gbps | Switching Bandwidth: | 176 Gbps |
| Forwarding Rate: | 77.38 Mpps | Website: | Www.lonriseeqt.com |
| High Light: | C1000-48P-4X-L,Cisco Catalyst Network Switch,4x10G Cisco Network Switch |
||

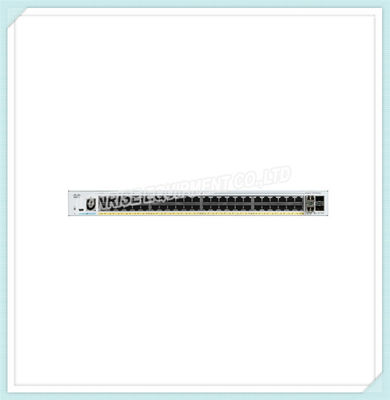

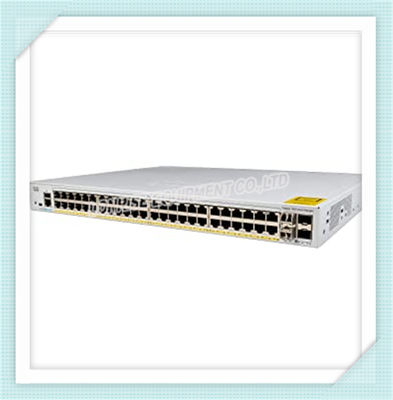

C1000-48P-4X-L Overview
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
C1000-48P-4X-L Specification |
|
|
Description |
48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks |
|
Gigabit Ethernet ports |
48 |
|
Uplink interfaces |
4 SFP+ |
|
PoE+power budget |
370W |
|
Fanless |
N |
|
Dimensions (WxDxH in inches) |
17.5 x 13.78 x 1.73 |
|
Console ports |
|
|
RJ-45 Ethernet |
1 |
|
USB mini-B |
1 |
|
USB-A port for storage and Bluetooth console |
1 |
|
Memory and processor |
|
|
CPU |
ARM v7 800 MHz |
|
DRAM |
512 MB |
|
Flash memory |
256 MB |
|
Performance |
|
|
Forwarding bandwidth |
88 Gbps |
|
Switching bandwidth |
176 Gbps |
|
Forwarding rate(64—byte L3 packets) |
77.38 Mpps |
|
Unicast MAC addresses |
16000 |
|
IPv4 unicast direct routes |
542 |
|
IPv4 unicast indirect routes |
256 |
|
IPv6 unicast direct routes |
414 |
|
IPv6 unicast indirect routes |
128 |
|
IPv4 static routes |
16 |
|
IPv6 static routes |
16 |
|
IPv4 multicast routes and IGMP groups |
1024 |
|
IPv6 multicast groups |
1024 |
|
IPv4/MAC security ACEs |
600 |
|
IPv6 security ACEs |
600 |
|
Maximum active VLANs |
256 |
|
VLAN IDs available |
4094 |
|
Maximum STP instances |
64 |
|
Maximum SPAN sessions |
4 |
|
MTU-L3 packet |
9198 bytes |
|
Jumbo Ethernet frame |
10,240 bytes |
|
Dying Gasp |
Yes |
|
MTBF in hours (data) |
1,452,667 |
|
MTBF in hours (PoE) |
856,329 |
|
MTBF in hours (Full PoE) |
856,329 |
|
Environmental |
|
|
Operating temperature Seal level |
-5 to 50 deg C* |
|
Up to 5,000ft (1500 m) |
-5 to 45 deg C |
|
Upto 10,000 (3000 m) |
-5 to 40 deg C |
|
Operating altitude |
10,000 ft (3,000m) |
|
Operating relative humidity |
5% to 90% at 40C |
|
Storage temperature |
-13 to 158F (-25 to 70C) |
|
Storage altitude |
15,000 ft (4500m) |
|
Storage relative humidit |
5% to 95% at 65C |
|
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) |
|
|
Safety and compliance |
|
|
Safety
|
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
|
EMC: Emissions
|
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
|
EMC: Immunity |
EN55024 (including EN 61000-4-5), EN300386, KN35 |
|
Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
|
Telco |
Common Language Equipment Identifier (CLEI) code |
|
U.S. government certifications |
TBD |
|
Connectors and interfaces |
|
|
Ethernet interfaces
|
* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
|
Indicator LEDs
|
* Per-port status: link integrity, disabled, activity * System status: system |
|
Console cables
|
* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
|
Power
|
* Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply |
Product Details

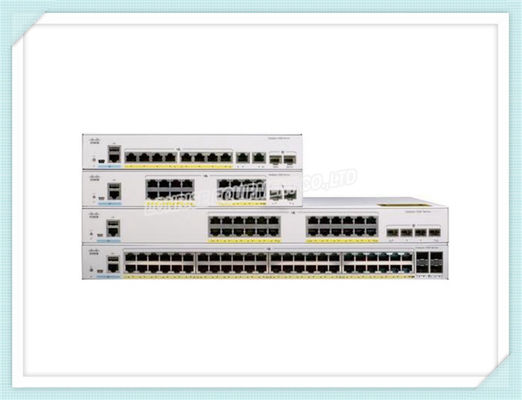

The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
| Product Code | C1000-48FP-4G-L | C1000-48P-4G-L | C1000-48T-4G-L | C1000-48FP-4X-L | C1000-48P-4X-L | C1000-48T-4X-L |
| Description | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Gigabit Ethernet ports | 48 | 48 | 48 | 48 | 48 | 48 |
| Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
| PoE+power budget | 740W | 370W | 740W | 370W | ||
| Fanless | N | N | N | N | N | N |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 |
| CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
| DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Forwarding bandwidth | 52 Gbps | 52 Gbps | 52 Gbps | 88 Gbps | 88 Gbps | 88 Gbps |
| Switching bandwidth | 104 Gbps | 104 Gbps | 104 Gbps | 176 Gbps | 176 Gbps | 176 Gbps |
| Forwarding rate(64—byte L3 packets) | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps |
