Product Details:
|
| Brand: | CISCO | PART NUMBER: | PWR-C1-1100WAC-P/2 |
|---|---|---|---|
| Power Supply Rated Maximum: | 1100W | Output BTU: | 3793 BTU/hr, 1100W |
| Input Current: | 12-6A | Output Ratings: | -56V At 19.64A |
| Power Cord Rating: | 13A | ||
| High Light: | Cisco Catalyst 3850 Switch,PWR-C1-1100WAC/2,1100W Cisco Power Supply |
||
PWR-C1-1100WAC-P/2= Overview

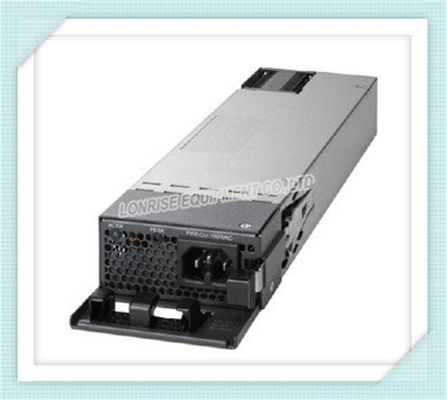

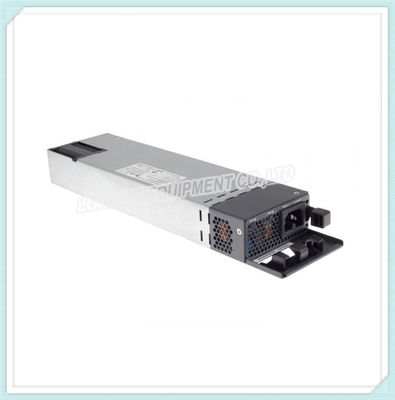

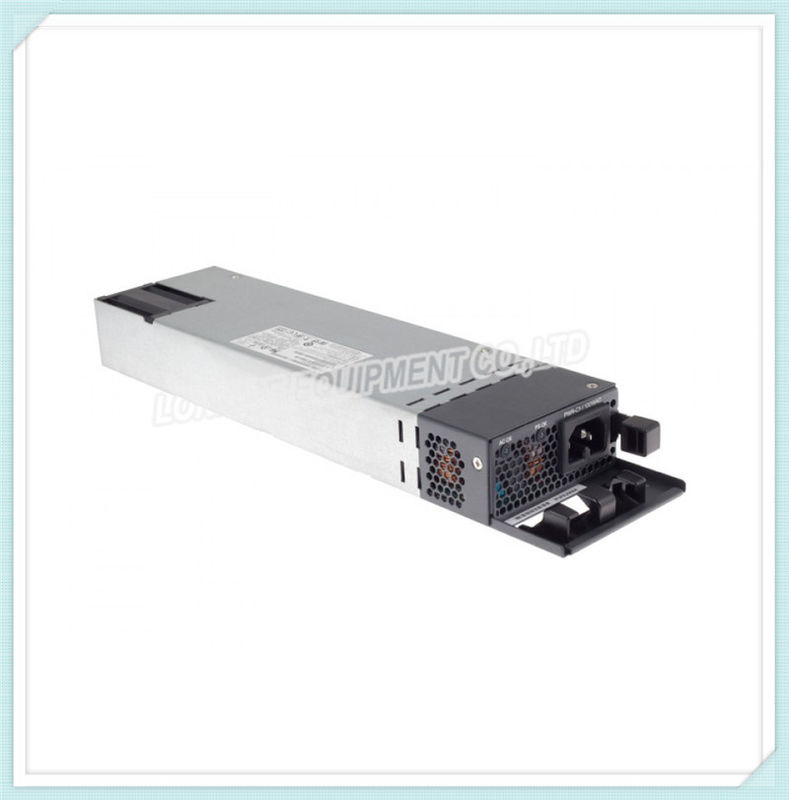

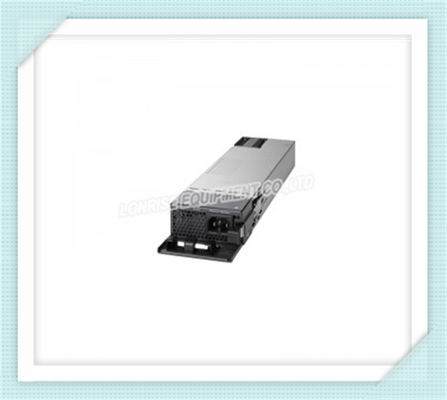

Cisco 3850 Series Secondary Power Supply - PWR-C1-1100WAC-P/2 1100W AC Config 1 Secondary Power Supply for 3850 Series.
PWR-C1-1100WAC-P/2= Specification
PWR-C1-1100WAC-P/2 Specification |
|
| Power supply rated maximum | 1100W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 3793 BTU/hr, 1100W |
| Input-voltage range and frequency |
115-240VAC, 50-60 Hz |
| Input current | 12-6A |
| Output ratings | -56V at 19.64A |
| Output holdup time | 10 ms minimum at 102.5VAC |
| Power-supply input receptacles |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications |
(H x W x D): 1.58 X 3.25 X 13.7 in Weight: 3 lb |
| Operating temperature | 23 to 113°F (-5 to 45°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45°C |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
| EMI and EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
| Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| LED indicators |

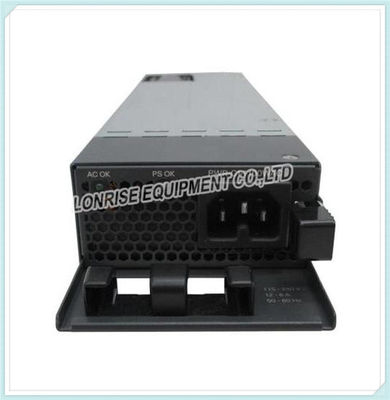

“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
| Product Code | PWR-C1-350WAC | PWR-C1-440WDC | PWR-C1-715WAC= | PWR-C1-1100WAC |
| Power supply rated maximum | 350W | 440W | 715W | 1100W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W | 1517BTU/hr, 440W | 2465 BTU/hr, 715W | 3793 BTU/hr, 1100W |
| Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
-36VDC to -72VDC |
100-240VAC, 50-60 Hz |
115-240VAC, 50-60 Hz |
| Input current | 4-2A |
<8A at -72VDC <16A at -36VDC |
10-5A | 12-6A |
| Output ratings | -56V at 6.25A | -56V at 7.86A | -56V at 12.8A | -56V at 19.64A |
| Output holdup time | 16.7 ms minimum at 100VAC | > 2ms at -48VDC | 16.7 ms minimum at 100VAC | 10 ms minimum at 102.5VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) | Terminal strip |
IEC 320-C16 (IEC60320-C16) |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A | 20A at 100VDC | 13A | 13A |
