Product Details:
|
| Scenarios: | Middle And Small-sized Conference Rooms | Multi-view: | 2-view |
|---|---|---|---|
| Dual Stream: | Dual 1080p @ 60 Fps (Optional); Dual 1080p @ 30 Fps (Optional); Dual 720p @ 30 Fps | Weight: | 12KG |
| Power Consumption: | 57 W | Warranty: | 1year Replacement Warranty |
| High Light: | video conferencing terminal,video conferencing equipment |
||

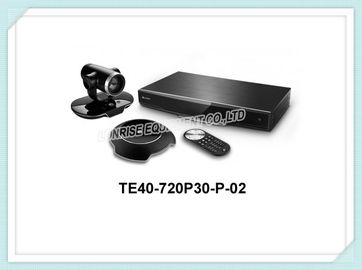

Huawei TE40-720P30-P-02 TE series brings state-of-the-art HD technology to HD video conferencing endpoints. This new series from Huawei delivers peak performance with dual 1080p 60fps video and AAC-LD audio, with a face-to-face communication experience so lifelike you will think you are in the same room. Multi-view images are easily transmitted to users simultaneously for a complete panoramic presentation. Numerous audio/video interface options and Wi-Fi connection integrate the conference room and simplify deployment, making the TE series the ideal choice for scenarios like administrative conferences and remote education video conferencing.
TE40-720P30-P-02 Specification |
|
| positioning | Commercial |
| Scenarios | Middle and small-sized conference rooms |
| People Video Resolution | 1080p @ 60 fps from 1Mbps (Optional) 1080p @ 30 fps from 512 Kbps (Optional) 1080i @ 60 fps from 512 Kbps (Optional) 720p @ 50/60 fps from 512 Kbps(Optional) 720p @ 25/30 fps from 384 Kbps |
| Dual stream | Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps (Optional); Dual 720p @ 30 fps |
| Video Inputs | 1 x HD-VI / DVI 1 x HDMI / DVI 1 x VGA/YPbPr |
| Video Outputs | 2 x HDMI / DVI 1 x VGA/YPbPr |
| Audio Inputs | 1 x XLR 2 x RCA 1 x HDMI 1 x HD-AI (Mic Array/Audio external) |
| Audio Outputs | 4 x RCA 2 x HDMI |
| Other Interfaces | IP: 10/100/1000 Base-T, 2 x RJ45; PSTN(#): 1 x RJ11 Wireless: Built-in Wi-Fi; 2 x RS232 COM; 2×USB 2.0 Host |
| Multi-view | 2-view |
| Bandwidth | IP: 64kbps～8Mbps |
| Dimensions | Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm Net weight: 3.9 kg Package Weight: 5.8 kg |
| Electrical | Working voltage: 100V to 240V AC Working frequency: 50 Hz to 60 Hz Power consumption: 60 W Embedded AC/DC power module |
| Pack Weight(kg) | 12 |
| Pack Volume(m^3) | 0.098226 |
| Pack Dimension(D*W*H mm) | 535*360*510 |
| Net Dimension(D*W*H mm) | 535*360*510 |
| Typic Power(W) | 57 |
