Product Details:
|
| Model: | CE6880-48S4Q2CQ-EI | Products Status: | Stock |
|---|---|---|---|
| Power Source Type: | AC / DC | Warranty: | 1year With New Condition |
| Condition: | 100% Original Brand | Shippment: | TNT,DHL,UPS, By AIR |
| High Light: | gigabit network switch,huawei industrial switches |
||

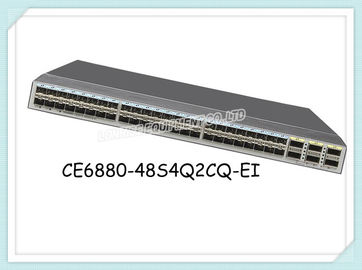

Huawei Network Switch CE6880-48S4Q2CQ-EI 48x10GE SFP+, 2x40G/100G QSFP28 , 4x40GE QSFP+
Huawei Network Switch CE6880-48S4Q2CQ-EI
Huawei Network Switch CE6880-48S4Q2CQ-EI 48x10GE SFP+, 2x40G/100G QSFP28 , 4x40GE QSFP+
Slot
Power supply slot
The CloudEngine 8800, 7800, 6800, and 5800 series switches (except the CE8850-64CQ-EI) have two power supply slots, in which power modules can be installed to provide power to the chassis. A chassis can have one or two power modules. Double power modules can provide higher reliability.
Fan slot
The CloudEngine 8800, 7800, 6800, and 5800 series switches (except the CE8850-64CQ-EI and CE6857-48S6CQ-EI) have two fan slots, in which fan modules can be installed to cool the chassis, ensuring efficient heat dissipation and system stability. A chassis must have two working fan modules to ensure normal operating.
All fan modules are hot swappable.
Technical specifications
|
Item |
Description |
|
|---|---|---|
| Physical specifications |
|
|
| Environment parameters | Temperature |
|
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
|
|
| Power specifications | Power source type | AC/DC |
| AC power input |
|
|
| DC power input |
|
|
| High-voltage DC power input | Not supported | |
| Rated input current |
|
|
| Chassis power consumption | Maximum power consumption | 267 W |
| Typical power consumption | 147 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 911 BTU/hr |
| Typical heat dissipation | 500 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Surge protection |
Power module:
|
|
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability | Power module backup | 1+1 backup |
| Fan module backup |
1+1 backup not supported |
|
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 54.65 years | |
| Mean time to repair (MTTR) | 1.81 hours | |
| Availability | 0.99999622209 | |
| Technical specifications | Processor | 1.5 GHz, eight-core |
| DRAM Memory | 2 GB | |
| NOR Flash | 32 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 10GE optical ports, 40GE optical ports, and 100GE optical ports |
| Certification |
|
|
