Product Details:
|
| Brand: | HUAWEI | PN: | UC0M05SRSC |
|---|---|---|---|
| Form Factor: | 2U Rack Server | Memory: | 12 DDR3 RDIMMs/LRDIMMs, Up To 384 GB |
| LOM Network Port: | 2 Onboard GE Ports | USB Port: | 6 (front: 2 , Rear: 2, Built-in: 2) |
| High Light: | huawei ethernet switches,huawei industrial switches |
||
Huawei eSpace Audio Recorder UC0M05SRSC RH2285V2 8HD Model DVD-RW
Huawei RH2285V2 8HD Model (2*E5-2407 CPU,4*8GB Mem,4*300GB SAS, DVD-RW,6*GE,SR120,2*460W AC PS).

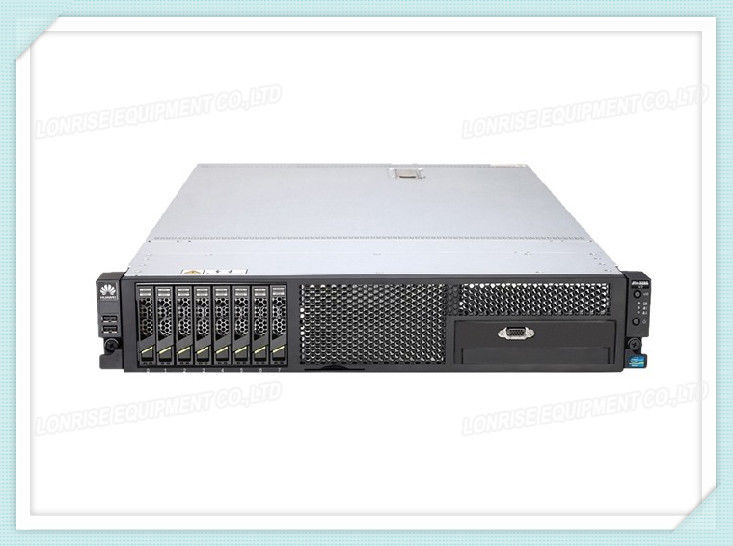

RH2285 V2 Rack Server |
|
| Form factor | 2U rack server |
| Number of processors | 1 or 2 |
| Processor |
Intel® Xeon® E5-2400 series Core options: 4, 6, or 8 Maximum dominant frequency: 2.4 GHz(6 Cores) or 2.3GHz (8 Cores) L3 cache: 20 MB |
| Memory | 12 DDR3 RDIMMs/LRDIMMs, up to 384 GB |
| Internal storage | Options: • 8 x 2.5" SAS/SATA HDDs or SSDs, up to 8 TB • 12 x 3.5" SAS/SATA HDDs and 2 x 2.5" SAS/SATA HDDs or SSDs, up to 38 TB • 26 x 2.5" SAS/SATA HDDs or SSDs, up to 26 TB |
| RAID support | RAID 0, 1, 10, 5, 50, 6, and 60 RAID cache: 512 MB or 1 GB Power-off protection: • BBU (3 x 24 hours) • Supercapacitor |
| LOM network port | 2 onboard GE ports |
| Expansion slot |
Up to 5 PCIe 3.0 slots 1 processor: • 1 PCIe 3.0 x8 •1 PCIe 3.0 x4 • 1 PCIe slot for a RAID controller card 2 processors: • 1 PCIe 3.0 x8 • 1 PCIe 3.0 x4 • 1 PCIe slot for a RAID controller card • (Optional) 1 PCIe 3.0 x16 • (Optional) 1 PCIe 3.0 x8 |
| USB port | 6 (front: 2 , rear: 2, built-in: 2) |
| Fan module | 4 hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| PSU |
2 hot-swappable 1+1 redundant PSUs: • AC: 460 W or 800 W • –48 V DC: 800 W |
| Management | UEFI Huawei iMana, support IPMI, SOL, KVM over IP, and virtual media One 10/100 Mbit/s RJ45 management network port |
| Operating systems supported |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server CentOS Solaris Oracle Enterprise Linux / Oracle Server VM Citrix XenServer VMware ESX / VMware ESX i |
| Power supply | 110 V/220 V AC or –48 V DC |
|
Operating temperature
|
5ºC–40ºC (41ºF–104ºF) |
| Dimensions | Height: 87.5 mm (3.44 in.) Width: 447 mm (17.60 in.) Depth: 740 mm (29.13 in.) |
