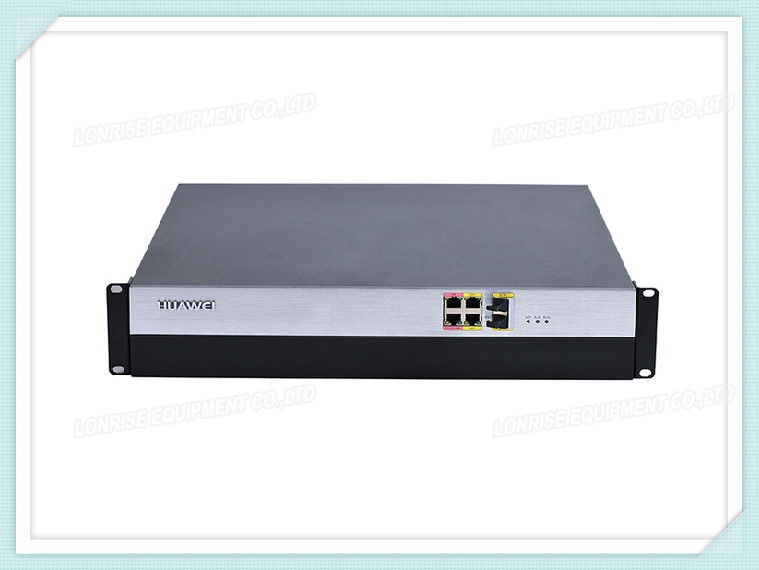

Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform

Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform
Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform

Large Image :  Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: VC6M1CUAA
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiatable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 PCS/MONTH

Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform

Description
Brand: HUAWEI PN: VC6M1CUAA
Video Inputs: 1 X HD-VI/DVI, 1 X HDMI/DVI, And 1 X VGA/YPbPr Video Outputs: 2 X HDMI/DVI, 1 X VGA/YPbPr
Audio Inputs: 1 X XLR, 2 X RCA, 1 X HDMI, And 1 X HD-AI (Mic Array/Audio External) Audio Outputs: 4 X RCA, 2 X HDMI
High Light:

gigabit network switch

,

huawei industrial switches



Huawei VP9600 Series Universal Transcoding VC6M1CUAA Videoconferencing Services Platform





VC6M1CUAA Overview



Huawei VC6M1CUAA VP96 series MCU family includes 3 products: VP9660, VP9650 and VP9630. Huawei provides MCU with high performance, reliability, safety, integration and easy to use. This advanced 96 series MCU is the first universal transcoding MCU supporting 1080P60 in the industry. It supports continuous presence on each port, tri-track AAC-LD and intelligent transcoding for content sharing. VP9660 is a universal transcoding MCU which supports the largest scale HD conference at 1080P to bring outstanding experience for users



VC6M1CUAA Specification





VC6M1CUAA Specification
Capacity Dynamic flexible ports:
Up to 12 HD 1080p60 ports in CP
= 24 HD 1080p30 ports in CP
= 48 HD 720p30 ports in CP
= 96 4CIF ports in CP
VOIP port:
Quantity same as that of 1080p30 ports
Video Standards and Protocols ITU-T H.264, H.264 HP, H.264 SVC, H.263, H.263+, H.263++, H.261
ITU-T H.239, BFCP
People Video Resolution Resolution: QCIF, CIF, 4CIF, 720p, 1080p
Video Frame Rate: 25fps, 30fps, 50fps, 60fps
Content Video Resolution Standard resolution from VGA to 1080p60
Audio Standards and Protocols AAC-LD, HWA-LD, G.722.1*, G.722.1C*, G.711, G.722, G.728, G.729A, G.729AB, G.719, iLBC
Three-channel
Other Supported Standards H.221, H.225, H.235, H.242, H.243, H.245, H.281, H.283, H.460, TIP, FECC, RFC2833, DTMF, SRTP, TLS, T.140, NTP
Network Standards and protocols: ITU-T H.323, H.320 (VP9660&VP9650 support), IETF SIP
Network standards: TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, TELNET, SSH, DNS/DDNS
Bandwidth for one port: 64Kbps8Mbps
Network Interfaces:
GE, 1000 Mb, RJ45
FE, 100 Mb, RJ45
RS232, RJ45
SFP, Gigabit optical fiber interface
PRI E1 or T1: 75/120 ohm, SMB/RJ45
Line Types: IP, ISDN
Management Tools Support SSH
Remote upgrade
Resource statistic
Hardware diagnosis
Support CDR (Call Detail Record)
Data export and import
Support Conference configuration template
Status monitor
IP QoS DiffServ (DSCP), IP precedence, ARQ
SEC™3.0 (Super Error Concealment )
IRC™ (Adaptability Intelligent Rate Control )
Auto adaptation enabling
Priority settings of QoS
SNP transversal between private and public networks
H.460/Static NAT transversal
Security Conference password
HTTPS ensures the safety for Web accessing
H.235 (AES256) and SRTP/TLS(AES256) encryption
Approval and Compliance CE, WEEE, RoHS, REACH, FCC, UL, VCCI-A, GOST, C-TICK
Operating Environment Operating temperature: 0℃ ~ 45℃
Relative humidity: 5% ~ 90% (Non - Condensing)
Air pressure: 63 ~ 106KPa
Reliability MTBF: >100,000 hours
MTTR: < 0.5 hour
Highlights Embedded web, embedded GK(VP9650&VP9630 support)
Universal transcoding for telepresence
CP on each port
Auto continuous presence
Dynamic flexible ports
48 modes of continuous presence
Ad hoc and audio/video IVR
HUAWEI SiteCall™
Schedule conferences via web (VP9650&VP9630 support) and Outlook
Email notification
URI dialing
Plenty of conference control functions
Chair control
Endpoint control via DTMF
Message overlay
Mute video
Support camera control
Support content lock
Support video source lock
Firewall traversal: H.460, static NAT, HUAWEI SNP, Video firewall option
Integrated with UC: Huawei eSpace, Microsoft Lync2010™/OCS2007R2, and IBM Sametime
Intelligent negotiation: best utilization of endpoint’s ability
Language: English, French, German, Spanish, Russian, Chinese, Japanese
Dimension 86.1mm(H) × 442mm(W) × 450mm(D), 2U
Weight < 20Kg
Power AC input: 100 240V 50/60HZ
DC input: None
Max power consumption: 400W
Hot spare MCU, power, network interface, chipset
