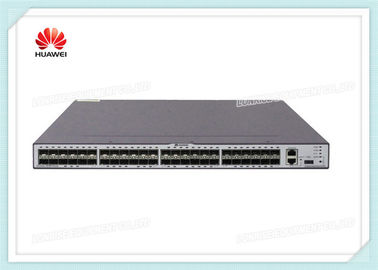

Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module

Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module
Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module

Large Image :  Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: S6700-48-EI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: New in box
Delivery Time: 1~2 days
Payment Terms: Western Union, Paypal,T/T
Supply Ability: 1000 Pcs /Month

Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module

Description
Brand: Cisco Parts Number: S6700-48-EI
Ports: 48 X GE SFP/10 GE SFP+ Ports Switching Capacity: 960 Gbit/s
High Light:

gigabit network switch

,

huawei industrial switches

Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+,without power module



S6700-48-EI  Overview



Huawei S6700-48-EI, supporting forty-eight GE SFP/10GE SFP+ ports, is one of the Huawei S6700 series switches. This series delivers high-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities. The S6700 is ideal for use as access switches in large-scale data centers and core switches in campus networks. S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.



Huawei S6700 Series Switch S6700-48-EI 48 10 Gig SFP+ Without Power Module 0



S6700-48-EI Specification



S6700-48-EI Specifications

Port

48* GE SFP/10 GE SFP+ ports

MAC address table

128K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

VLAN

4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
QinQ and selective QinQ

IPv4 routing

Static routing, RIPv1, RIPv2, ECMP, and URPF
OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing policy

IPv6 routing

Static route
RIPng
OSPFv3
BGP4+

IPv6 features

Neighbor Discovery (ND)
PMTU
IPv6 ping, IPv6 tracert, and IPv6 Telnet
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping

multicast

Static Layer 2 multicast MAC address
MAC-based multicast forwarding
IGMP snooping and IGMP fast leave
Multicast VLAN
MLD snooping
IGMP proxy
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3
PIM-SM, PIM-DM, and PIM-SSM
MSDP

QoS/ACL

Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports

Reliability

STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
BPDU protection, root protection, and loop protection
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS(G.8032)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
E-Trunk

MPLS features

MPLS L3VPN
MPLS L2VPN (VPWS/VPLS)
MPLS-TE
MPLS QoS

Security

DoS attack defense, ARP attack defense, and ICMP attack defense
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication and TACACS authentication
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist

Management and maintenance

iStack (using service ports as stack ports)
MAC Forced Forwarding (MFF)
Virtual cable test
Ethernet OAM (IEEE 802.3ah and 802.1ag)
SNMP v1/v2/v3
RMON
Web NMS
System logs and alarms of different levels
GVRP
MUX VLAN
sFlow

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0OC–45OC
Relative humidity: 5%–95% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Power consumption

240W
