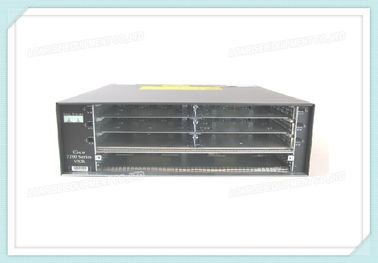

CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software

CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software
CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software

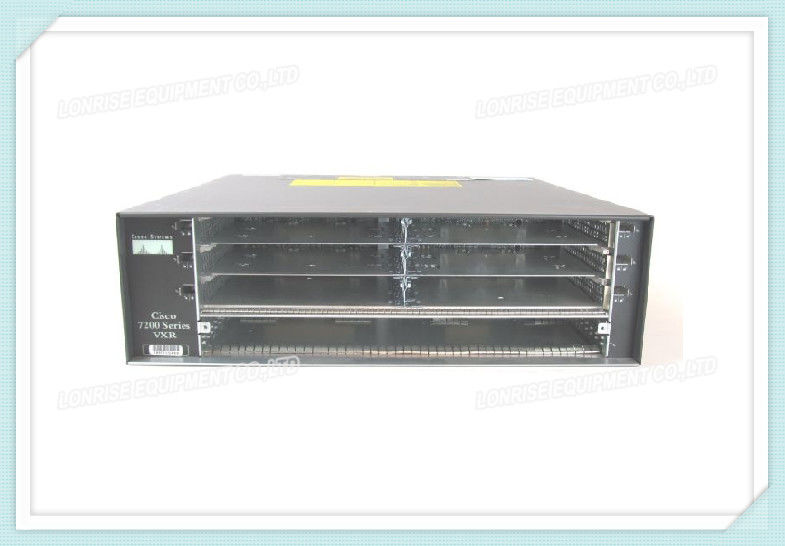

Large Image :  CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE FCC ISO
Model Number: CISCO7204VXR
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DYAS
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50 UNITS/MONTH

CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software

Description
Brand: CISCO Model: CISCO7204VXR
Fast Ethernet (TX) Ports: 4 Fast Ethernet (FX) Ports: 4
Multichannel T3 Ports: Up To 4 HSSI Ports: Up To 8
High Light:

cisco ethernet router

,

cisco modular router





CISCO7204VXR Cisco 7200 Router 4-slot chassis 1 AC Supply w/IP Software



CISCO7204VXR Overview



The Cisco 7200 VXR Series Router CISCO7204VXR delivers exceptional performance, modularity, and scalability in a compact form factor with a wide range of deployment options.



CISCO7204VXR Cisco 7200 Router 4 Slot Chassis 1 AC Supply W/IP Software 0



CISCO7204VXR Specification



CISCO7204VXR Specification

Product Number CISCO7204VXR
Description Cisco 7204 VXR, 4-slot chassis, 1 AC supply with IP software
Configurable Slots without Port Adapter Jacket Card 4
Configurable Slots with Port Adapter Jacket Card 5
Ethernet (10BASE-T) Ports 32
Ethernet (10BASE-FL) Ports 20
Fast Ethernet (TX) Ports 4
Fast Ethernet (FX) Ports 4
EtherSwitch Port Adapters 2
100VG-AnyLAN Ports 4
FDDI (FDX, HDX) Ports 0
ATM Ports (T3, OC-3) 4, 4
Packet over SONET 4
Token Ring (FDX, HDX) Ports 16
Synchronous Serial Ports 32
ISDN BRI Ports (S/T) 16, 32
ISDN PRI, Multichannel T1/E1 Ports 32
Multichannel T3 Ports Up to 4
HSSI Ports Up to 8
Packet over T3/E3 Ports (Integrated DSU) Up to 10
VPN Acceleration Module 1
Chassis/Rack

• 16 with side-to-side air flow

• 9 with RDS mounting system for front-to-back airflow

I/O Card Slots 1
Port Adapter Slots 4
Midplane 2 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.2 Gbps when used with NPE-400. 3 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.8 Gbps when used with NPE-G1 or NPE-G2
Online Insertion and Removal (OIR) Yes
Field-Replaceable Components Processor, memory, power supply, I/O card, and port adapters
Additional Standard Components AC power supply, AC power cord
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Operating Humidity 10 to 90% (noncondensing)
Processor Memory

• 256 MB (default for NPE-400 and NPE-G1)

• 512 MB (max for NPE-400)

• 1 GB (max for NPE-G1 and default for NPE-G2)

• 2 GB option for NPE-G2

PCMCIA Flash Disk Memory Card (optional, up to 2 slots available)

• 48 MB, expandable to 128 MB for I/O controllers

• 64 MB, expandable to 256 MB for NPE-G1 and NPE-G2

Compact Flash Disk Memory Card (optional for NPE-G1 and NPE-G2)

• 64 MB, expandable to 256 MB for NPE-G1

• 256 MB for NPE-G2

Height 5.25 in. (13.34 cm)
Width 16.8 in. (42.67 cm)
Depth 17 in. (43.18 cm)
Weight Chassis is fully configured with a network processing engine, I/O controller, four port adapters, two power supplies, and a fan tray: ~50 lb (22.7 kg)
